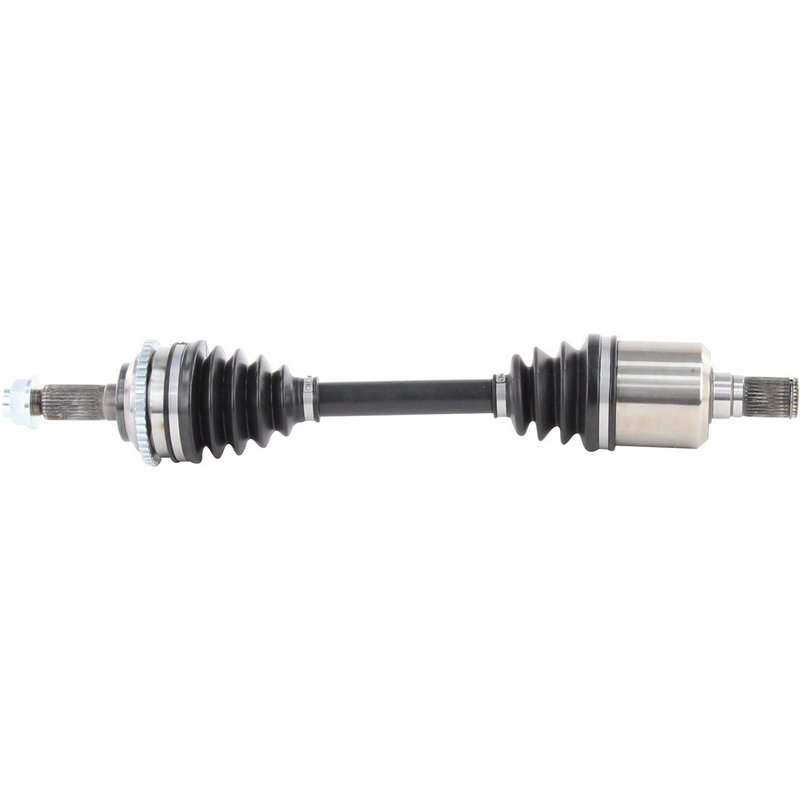

TrakMotive FD-8191 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft FD-8191

The TrakMotive CV Axle Shaft FD-8191 is engineered for reliable driveline performance in Ford Fusion and Lincoln MKZ vehicles. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Ford Fusion and Lincoln MKZ models
• Includes a neoprene boot for enhanced durability
• Features a 44-tooth ABS ring with a toothed design
• Comes with a hex head axle nut (1 1/4 inch size) and stake locking type
• Overall compressed length of 22.8 inches (579 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components designed to meet OEM specifications. This CV axle shaft FD-8191 includes essential features such as a male inboard joint and conventional outboard joint, ensuring compatibility and smooth power transfer. The inclusion of a toothed ABS tone ring with 44 teeth supports accurate wheel speed sensor readings, critical for ABS functionality.

Technical Specifications and Features

This CV axle shaft features a neoprene boot material that offers resistance to wear and environmental factors. The inboard joint is male type with 31 splines, while the outboard joint is conventional with 28 splines, providing secure shaft connections. The axle nut included is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 1 inch (24 mm) and a length of 1 1/2 inches (37 mm). It uses an M22x1.5 thread size and a stake locking mechanism to ensure secure fastening.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Ford Fusion and Lincoln MKZ
• Resolves issues related to torn or leaking CV boots
• Addresses axle shaft vibration or clicking noises during turns
• Restores proper ABS sensor function with included toothed ABS ring
• Fixes axle nut fastening problems with included stake locking nut

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify the axle nut torque specifications for your specific Ford Fusion or Lincoln MKZ model. The included stake locking axle nut requires staking after proper torque to prevent loosening. Inspect the CV boot for proper seating to avoid premature wear. Use appropriate tools to avoid damage to the splines and joints during installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FD-8191 is a new, OEM-quality replacement part designed to meet or exceed factory standards. It includes a neoprene boot and a toothed ABS tone ring to maintain vehicle safety systems. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to support reliable performance in Ford Fusion and Lincoln MKZ vehicles.
