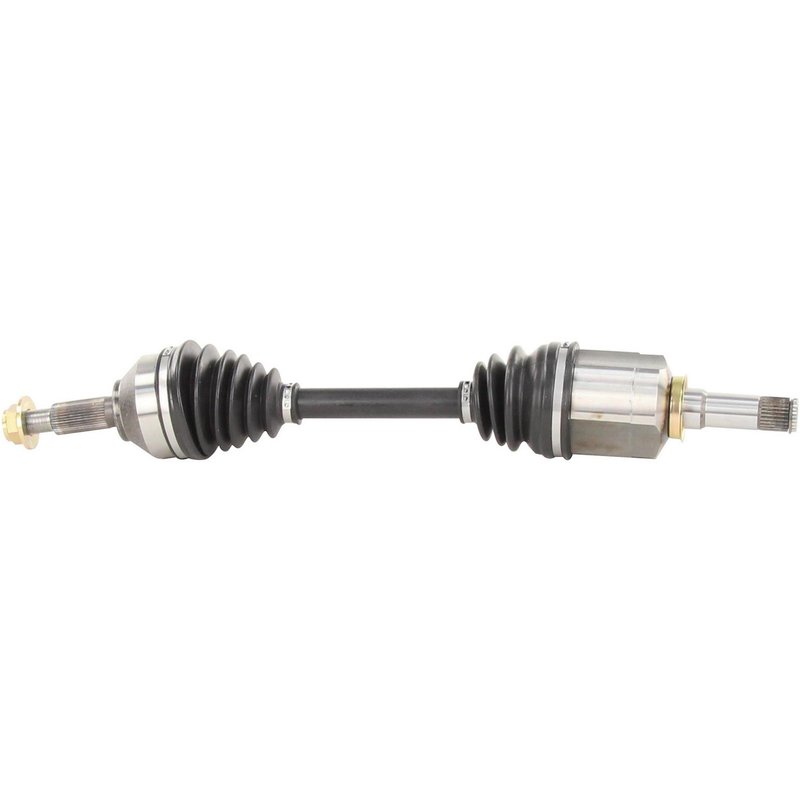

TrakMotive FD-8193 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-8193 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/6 |
| Axle Nut Height (mm) | 21.2 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.43 |
| Overall Compressed Length (mm) | 646 |
| Product line | CV Axle Shaft |
| Fits | Ford and Lincoln · 12 vehicles |
New CV axle shaft. Built as a direct replacement for driveline and axle service.
Neoprene boot. Helps protect the joint with durable, flexible construction.
Axle nut included. Self-locking hardware is ready for installation.
Cross-references Cardone Reman 60-2254, Dayco 71591 and TrakMotive FD-8193 for the same application. See all 14.
TrakMotive FD-8193 CV Axle Shaft
TrakMotive FD-8193 is a new front left CV axle shaft for select 2010-2012 Ford Flex, Ford Taurus, Lincoln MKS, and Lincoln MKT applications. Built for driveline service, it uses a neoprene boot, includes the axle nut, and is configured with a male inboard connection and conventional outboard joint.
Key Features
- Part number: FD-8193
- Brand line: TrakMotive CV Axle Shaft
- New replacement axle shaft, not remanufactured
- Front left position
- Male inboard shaft connection with 27 inboard splines
- Conventional outboard shaft connection with 38 outboard splines
- Neoprene boot material for driveline protection
- Axle nut included, M22 x 1.5 thread, self-locking type
- Overall compressed length: 25.43 in. (646 mm)
- ABS tone ring not included
Product Details
This TrakMotive CV axle shaft is part of the CV Axle Shaft product line and is built for direct replacement service on the front left side. The FD-8193 configuration includes a hex axle nut with a 1 1/4 in. hex size, and the axle is supplied as a new unit for the listed Ford and Lincoln fitments. TrakMotive notes that ABS axles fit non-ABS applications unless otherwise noted, and the company is ISO 9001:1007 and TS 16949:2009 certified.
This part cross-references Cardone Reman 60-2254 for the same application.
What It Helps Repair
- Clicking or popping during turns caused by worn CV joints
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Driveline noise from spline or joint wear
- Front left axle failure on Ford Flex, Ford Taurus, Lincoln MKS, or Lincoln MKT models
Installation Notes
Verify front left fitment before installation on 2010-2012 Ford Flex, 2010-2012 Ford Taurus, 2010-2012 Lincoln MKS, and 2010-2012 Lincoln MKT. Confirm spline count, axle nut thread size, and overall compressed length against the original axle shaft. Inspect seals, hub condition, and surrounding driveline components during replacement.
Quality Assurance
TrakMotive FD-8193 is a new axle shaft backed by a limited lifetime warranty. It is produced by an ISO 9001:1007 and TS 16949:2009 certified company.
Fitment
- Fits 2010-2012 Ford Flex, front left.
- Fits 2010-2012 Ford Taurus, front left.
- Fits 2010-2012 Lincoln MKS, front left.
- Fits 2010-2012 Lincoln MKT, front left.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2012 | Ford | Flex | — | AWD | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2012 | Ford | Taurus | SHO | AWD | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2012 | Lincoln | MKS | — | AWD | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2012 | Lincoln | MKT | — | AWD | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2011 | Ford | Flex | — | AWD | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2011 | Ford | Taurus | SHO | AWD | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2011 | Lincoln | MKS | — | AWD | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2011 | Lincoln | MKT | — | AWD | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2010 | Ford | Flex | — | AWD | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2010 | Ford | Taurus | SHO | AWD | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2010 | Lincoln | MKS | — | AWD | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2010 | Lincoln | MKT | — | AWD | 3.5L | V6 | Front Left | CV Axle Shaft |
