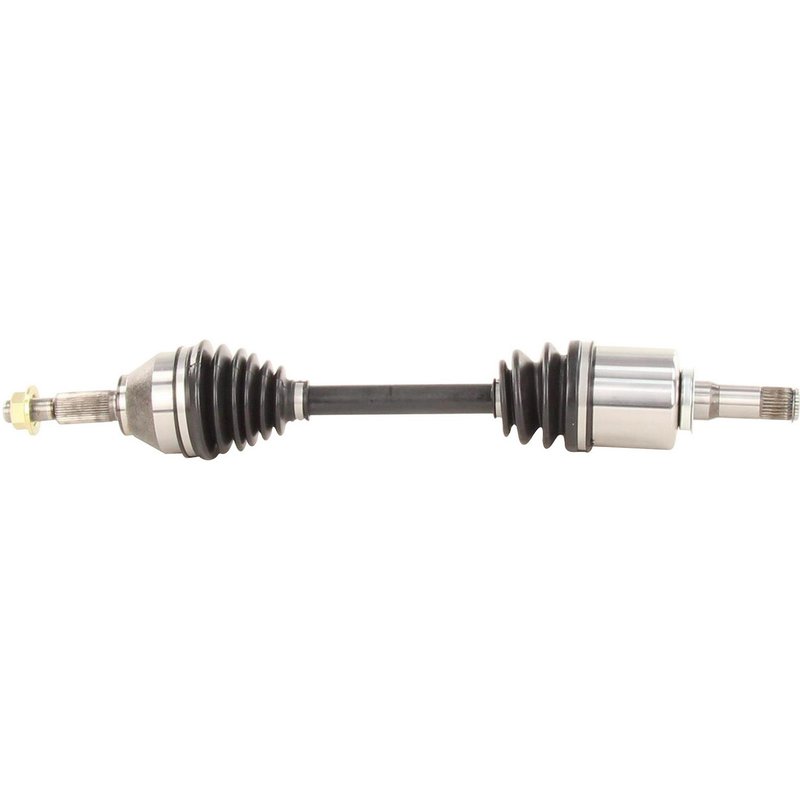

TrakMotive FD-8198 CV Axle Shaft - Front Left

Front Left CV Axle Shaft for Ford Explorer

TrakMotive FD-8198 is a new front left CV axle shaft for select Ford Explorer applications from 2011-2019. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline replacement on the specified vehicles.

TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for everyday repair work. FD-8198 follows that approach with application-specific dimensions, included axle nut, and OE-style fitment details for Ford Explorer front left service.

• New CV axle shaft for front left installation
• Neoprene boot material for joint protection
• Male inboard shaft connection style
• Conventional outboard joint type
• 27 inboard splines and 38 outboard splines
• Overall compressed length: 26.69 in. (678 mm)
• Axle nut included; M22 x 1.5 thread size
• Hex axle nut head type with 30 mm hex size
• No ABS tone ring included
• Limited Lifetime Warranty

This TrakMotive FD-8198 CV axle shaft is specified for Ford Explorer front left driveline repair where the original axle matches the listed spline count, connection style, and compressed length. It cross-references Cardone New 66-2286 and Cardone Reman 60-2286 for the same application.

Vehicle Fitment

• Fits 2016-2019 Ford Explorer, front left, w/Tow Package; CV Axle Shaft
• Fits 2012-2019 Ford Explorer, front left, w/o Tow Package; CV Axle Shaft
• Fits 2015-2019 Ford Explorer, front left, CV Axle Shaft
• Fits 2015 Ford Explorer, front left, w/Tow Package (Class III); CV Axle Shaft
• Fits 2012 Ford Explorer, front left, w/Tow Package (Class III); CV Axle Shaft
• Fits 2013-2014 Ford Explorer, front left, w/ Tow Package (class III); CV Axle Shaft
• Fits 2011 Ford Explorer, front left, w/o Tow Package (Class III); CV Axle Shaft

What It Helps Repair

• Clicking or popping from a worn front left CV joint
• Vibration during acceleration from a damaged axle shaft
• Torn boot conditions that can lead to grease loss and joint wear
• Driveline noise caused by excessive axle play
• Replacement needs after axle damage on Ford Explorer front left applications

Installation Notes and Tips

Verify the vehicle’s tow package configuration, spline count, and axle length before installation. This axle uses a standard locking axle nut with M22 x 1.5 thread size and a 30 mm hex, so confirm tool fitment before service. The axle does not include an ABS tone ring, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.

Quality Assurance

TrakMotive states that this CV axle shaft is produced by an ISO 9001:1007 and TS 16949:2009 certified company. FD-8198 is backed by a Limited Lifetime Warranty.
