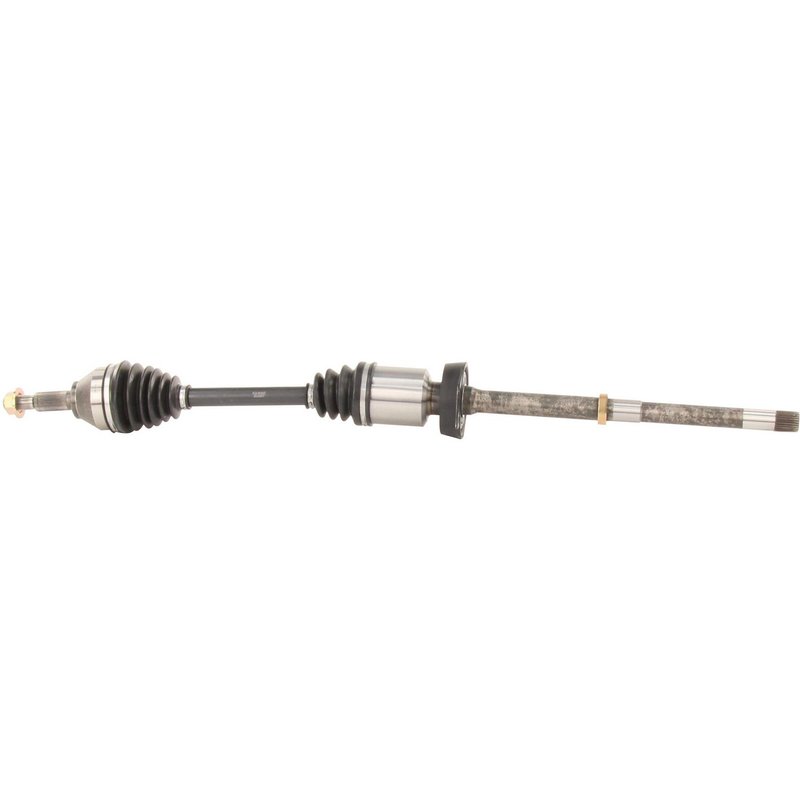

TrakMotive FD-8203 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-8203 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 42.85 |
| Overall Compressed Length (mm) | 1088.5 |
| Product line | CV Axle Shaft |
| Fits | Ford · 6 vehicles |
New CV axle shaft. A direct-fit replacement for restoring driveline function.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Conveniently supplied for a more complete install.
Cross-references Cardone New 66-2281, TrakMotive FD-8203 and 60-2281 for the same application. See all 27.
TrakMotive FD-8203 CV Axle Shaft
The TrakMotive FD-8203 is a new CV axle shaft for the front right position on select Ford Explorer applications. Built for direct replacement service, it supports driveline repair on 2011-2014 Explorer models with the correct tow package configuration noted in fitment.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: FD-8203
- New axle shaft construction
- Front right application
- Overall compressed length: 42.85 in. (1088.5 mm)
- Inboard joint type: Male
- Outboard joint type: Conventional
- Inboard splines: 27
- Outboard splines: 38
- Boot material: Neoprene
- Axle nut included with M22 x 1.5 thread, 30 mm hex size
- No ABS tone ring included
Product Details
TrakMotive FD-8203 is a CV axle shaft for Ford Explorer front right service, engineered as a new replacement part for driveline repair. It uses a male inboard connection, a conventional outboard joint, and a neoprene boot for the specified axle assembly. This part cross-references Cardone New 66-2281 for the same application. TrakMotive FD-8203 is backed by the brand’s limited lifetime warranty and is produced by an ISO 9001:1007 and TS 16949:2009 certified company.
Vehicle Fitment
- Fits 2013-2014 Ford Explorer, front right, Standard Duty Replacement; CV Axle Shaft
- Fits 2012 Ford Explorer, front right, w/ Tow Package (class III); CV Axle Shaft
- Fits 2011-2012 Ford Explorer, front right, w/o Tow Package; CV Axle Shaft
- Fits 2011 Ford Explorer, front right, w/Tow Package (Class III); CV Axle Shaft
Common Repair Uses
- Restoring a worn or noisy front right CV axle on a Ford Explorer
- Replacing a damaged axle shaft with spline or joint wear
- Addressing vibration during acceleration or turning
- Repairing clicking or popping sounds from the front driveline
- Correcting axle seal or boot-related driveline service issues
Installation Notes and Tips
Verify the vehicle’s tow package configuration before ordering, since fitment varies by model year and equipment. Confirm spline count, axle nut thread size, and overall length against the original axle before installation. Inspect related components such as wheel hub, seals, and suspension hardware during service to help ensure a proper repair on Ford Explorer front right applications.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part and supports it with a limited lifetime warranty. The company states ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled manufacturing and quality management practices.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2014 | Ford | Explorer | AWD | 3.5L | V6 | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2013 | Ford | Explorer | AWD | 3.5L | V6 | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2012 | Ford | Explorer | AWD | 3.5L | V6 | Front Right | w/ Tow Package (class III); CV Axle Shaft |
| 2012 | Ford | Explorer | AWD | 3.5L | V6 | Front Right | w/o Tow Package; CV Axle Shaft |
| 2011 | Ford | Explorer | AWD | — | — | Front Right | w/Tow Package (Class III); CV Axle Shaft |
| 2011 | Ford | Explorer | AWD | — | — | Front Right | w/o Tow Package; CV Axle Shaft |
