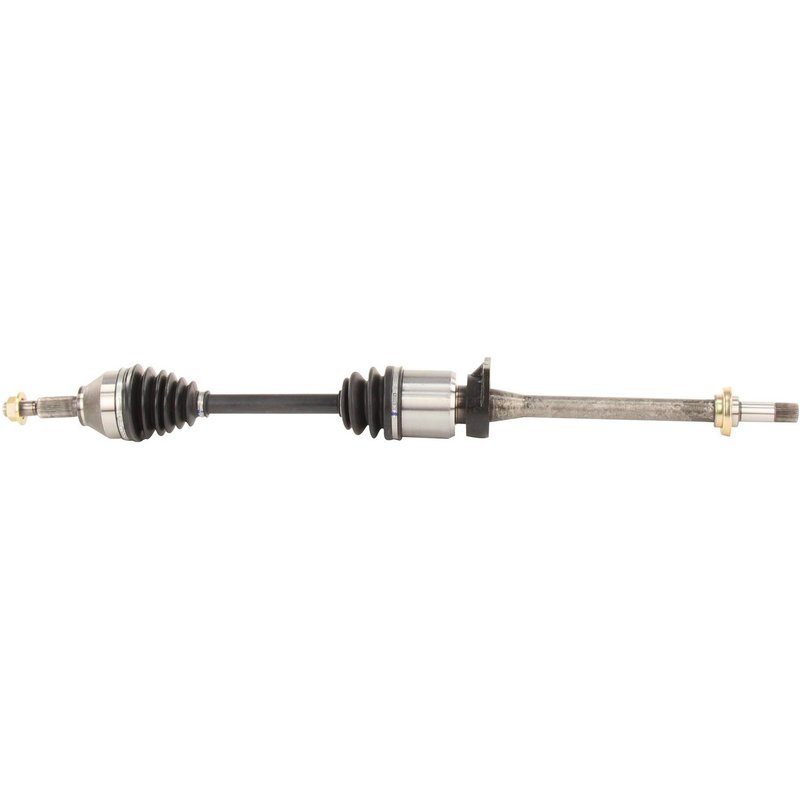

TrakMotive FD-8204 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft FD-8204 for Ford Explorer

The TrakMotive CV Axle Shaft FD-8204 is designed specifically for Ford Explorer models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel drive or all-wheel drive system.

• Compatible with Ford Explorer vehicles
• Includes axle nut with standard locking type
• Neoprene boot material for enhanced durability
• Hex head axle nut measuring 3/4 inch in height
• Overall compressed length of 40.55 inches (1030 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable performance for driveline and axle components. The FD-8204 model features a male inboard joint type with 35 splines and a conventional outboard joint with 38 splines, ensuring compatibility with the Ford Explorer's drivetrain specifications. This line emphasizes quality materials such as neoprene boots and includes necessary hardware like the axle nut for a complete replacement solution.

Technical Specifications and Features

This CV axle shaft includes a hex head axle nut with a 30 mm hex size and a thread size of M22*1.5, providing secure fastening. The axle nut length is 1 1/3 inches (34.6 mm), and the height is 3/4 inch (19 mm). The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The inboard shaft connection style is male, matching the 35 inboard splines, while the outboard connection is conventional with 38 splines. The overall compressed length of 40.55 inches (1030 mm) ensures proper fitment within the Ford Explorer's driveline assembly.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axle shafts on Ford Explorer
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Addresses grease leakage from torn or damaged CV boots
• Restores proper driveline function after axle shaft bending or breakage

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft FD-8204, ensure the axle nut is torqued to the manufacturer’s specifications using the included hex head nut. Verify the neoprene boot is properly seated to prevent contamination. The male inboard joint and conventional outboard joint should align correctly with the vehicle’s splines for smooth operation. It is recommended to inspect related suspension and driveline components during installation for any additional wear.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FD-8204 is a new, not remanufactured, component built to meet OEM standards. It includes the axle nut for a complete replacement package. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and fitment for Ford Explorer vehicles.
