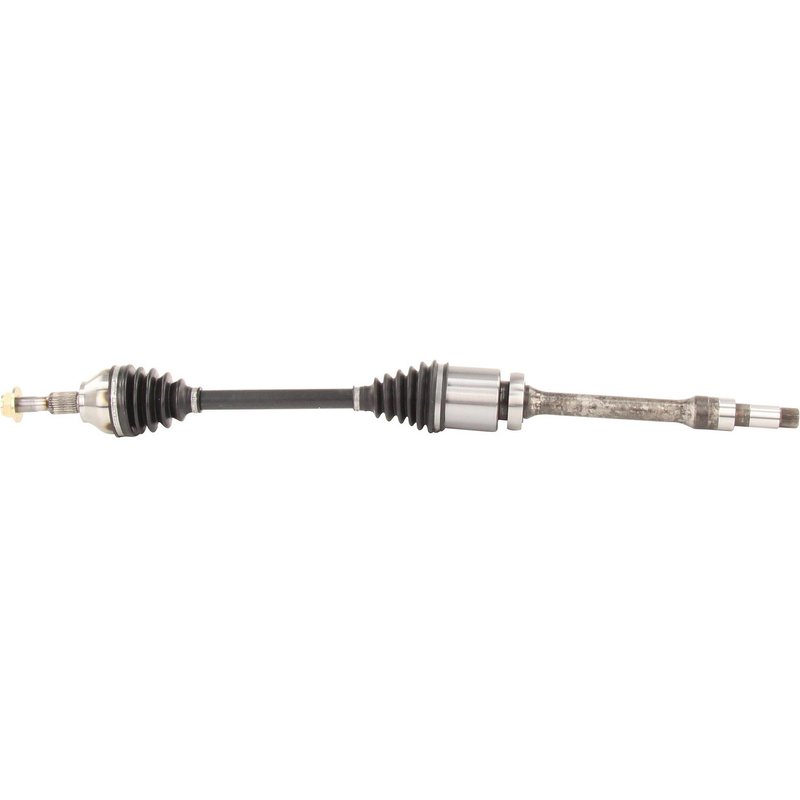

TrakMotive FD-8219 CV Axle Shaft - Front Right

TrakMotive FD-8219 CV Axle Shaft

TrakMotive FD-8219 is a new CV axle shaft for front right applications on select Ford Fusion and Lincoln MKZ hybrid models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint to match the listed driveline configuration.

Key Features

• Direct-fit CV axle shaft for the front right position
• New construction for 2013-2019 Ford Fusion hybrid models with VIN U
• Also fits 2013-2015 Lincoln MKZ hybrid and 2016 Lincoln MKZ with VIN U
• Includes axle nut with M22 x 1.5 thread size and self-lock design
• Neoprene boot material for driveline protection
• 35 inboard splines and 27 outboard splines
• Overall compressed length: 39.02 in. (991 mm)
• ABS tone ring not included

Detailed Description

FD-8219 is a TrakMotive CV axle shaft engineered for the front right side of select Ford Fusion and Lincoln MKZ hybrid vehicles. This axle uses a male inboard shaft connection, a conventional outboard shaft connection, and a neoprene boot to support the listed OE-style driveline layout. The included axle nut features a hex head, M22 x 1.5 thread, and self-locking design for the specified fitment.

This part cross-references Ford and Lincoln applications such as DG9Z3B436BA and DG913B436AA for the same vehicle coverage. TrakMotive FD-8219 is a practical replacement choice when servicing a worn or damaged CV axle on a 2013-2019 Ford Fusion front right hybrid application or a 2013-2016 Lincoln MKZ front right hybrid application.

What It Helps Fix

• Clicking or popping noises during turns from a worn CV joint
• Vibration felt through the drivetrain under acceleration
• Torn or leaking axle boot conditions
• Axle shaft wear that affects smooth power transfer
• Noise or looseness at the front right driveline position

Installation Notes and Tips

Verify VIN U, model year, and front right position before ordering. Confirm spline count, axle length, and axle nut thread size against the original part. ABS tone ring is not included, so compare the vehicle’s original axle configuration before installation. Inspect related seals, hub components, and fasteners during service to help ensure a proper repair.

Quality Assurance

TrakMotive lists FD-8219 as a new part and notes ISO 9001:1007 and TS 16949:2009 certification. The manufacturer also backs this CV axle shaft with a limited lifetime warranty.
