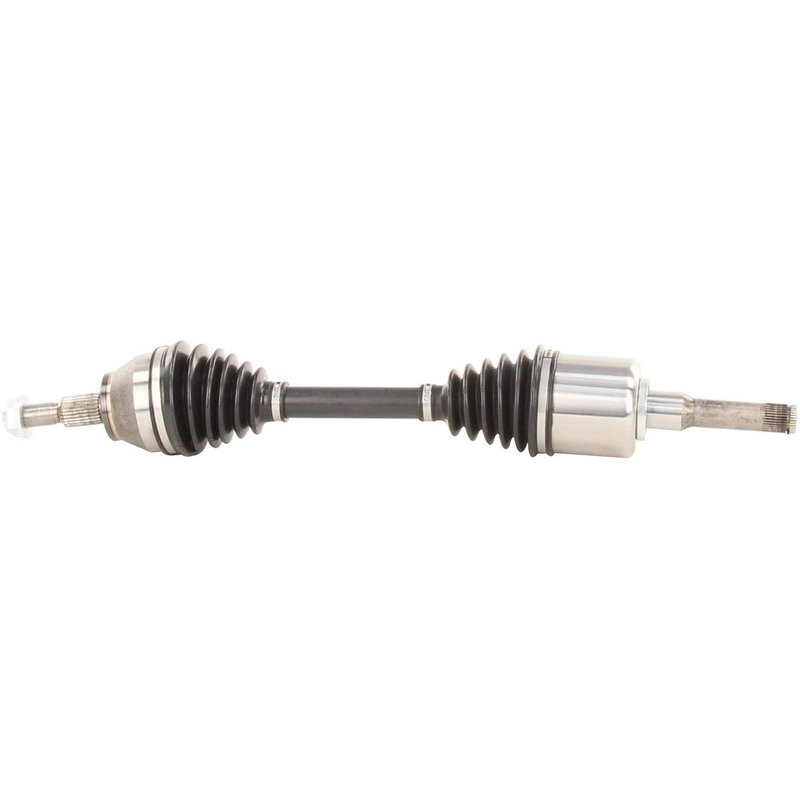

TrakMotive FD-8221 CV Axle Shaft - Front Left

Front Left CV Axle Shaft for Ford Escape

TrakMotive FD-8221 is a new CV axle shaft for the front left position on select 2013-2019 Ford Escape models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline replacement on the listed application.

This Ford Escape CV axle shaft includes the axle nut and uses a self-locking M22 x 1.5 nut with a 31.8 mm hex size. TrakMotive FD-8221 is a fitment-based replacement for front left axle service on the 2013-2019 Ford Escape and is cross-referenced to 169221 for the same application.

Key Features

• New CV axle shaft for the front left position
• Fits 2013-2019 Ford Escape, front left
• Overall compressed length: 26.95 in. (684.5 mm)
• Neoprene boot material for CV joint protection
• Male inboard shaft connection with 35 inboard splines
• Conventional outboard joint with 27 outboard splines
• Axle nut included: hex head, self-locking, M22 x 1.5
• No ABS tone ring included

Product Details

TrakMotive FD-8221 is part of the CV Axle Shaft line within TrakMotive driveline and axle components. It is engineered as a direct replacement axle for the front left side of the Ford Escape, with the specified spline count, compressed length, and joint styles needed for the listed vehicle application. The axle is new, not remanufactured, and is built for service on non-ABS applications unless otherwise noted by the vehicle fitment.

Use FD-8221 when replacing a worn or damaged front left axle on a 2013-2019 Ford Escape. The part number FD-8221 is also a useful search reference when sourcing a Ford Escape front left CV axle shaft, and it cross-references 169221 for the same application.

Common Problems This Part Can Address

• Clicking or popping from a worn outer CV joint
• Vibration during acceleration from a damaged axle shaft
• Torn boot conditions that allow grease loss and contamination
• Excessive driveline play from spline or joint wear
• Noise from a failing front left axle assembly

Installation Notes and Tips

Confirm front left fitment before installation on the 2013-2019 Ford Escape. Verify axle length, spline count, and axle nut thread size against the removed part before assembly. Because the axle nut is included, use the correct M22 x 1.5 self-locking nut and torque fasteners to the vehicle manufacturer’s specifications during installation.

Inspect the hub, seals, and surrounding suspension components before installing the new axle. If the vehicle is equipped with ABS, confirm whether the application requires a tone ring, since this axle does not include one.

Quality Assurance

TrakMotive lists this axle shaft as a new component and notes ISO 9001:1007 and TS 16949:2009 certified company standards. The FD-8221 also carries a limited lifetime warranty.
