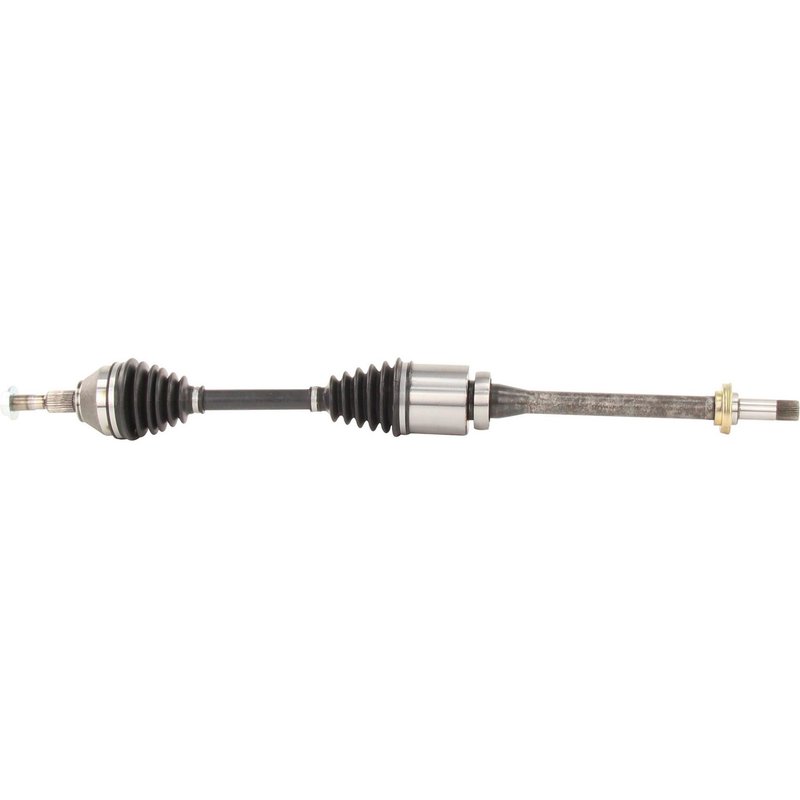

TrakMotive FD-8227 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-8227 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/7 |
| Axle Nut Height (mm) | 14.5 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 38.5 |
| Overall Compressed Length (mm) | 978 |
| Product line | CV Axle Shaft |
| Fits | Ford and Lincoln · 20 vehicles |
New CV axle shaft. A direct replacement for worn driveline components.
Neoprene boot. Helps protect the joint from dirt and moisture.
Axle nut included. Saves time by providing the matching hardware.
Cross-references Cardone New 66-2314, TrakMotive FD-8227 and 169227 for the same application. See all 15.
CV Axle Shaft for Fusion and MKZ
TrakMotive FD-8227 is a new CV axle shaft for the front right position on select Ford Fusion and Lincoln MKZ applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline replacement service.
This CV axle shaft is listed for 2013-2020 Ford Fusion front right applications, including VIN 9 8th digit and VIN R 11th digit configurations, plus 2013-2016 Lincoln MKZ front right applications. TrakMotive FD-8227 is a fitment-focused replacement for vehicles that need the correct spline count, compressed length, and axle nut specification.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: FD-8227
- New axle shaft assembly
- Front right position
- Male inboard shaft connection
- Conventional outboard shaft connection
- Neoprene boot material
- Axle nut included with stake locking type
- 32 mm axle nut hex size, M22 x 1.5 thread
- 35 inboard splines and 27 outboard splines
- Overall compressed length: 38.5 in. (978 mm)
- No ABS tone ring included
Product Details
TrakMotive FD-8227 is a CV axle shaft for driveline repair on Ford Fusion and Lincoln MKZ front right applications. The shaft uses a male inboard joint and a conventional outboard joint, with a neoprene boot for joint protection. The axle is supplied new and includes the axle nut specified for the application. TrakMotive identifies this part as a direct replacement option for the listed Fusion and MKZ fitments, and the part number FD-8227 is also referenced in interchange listings for cross-checking.
This part cross-references Cardone New 66-2314 for the same application.
Common Repair Applications
- Front right axle noise or vibration during acceleration
- Clicking or popping from a worn CV joint
- Boot damage that has led to grease loss and joint wear
- Axle shaft play or driveline looseness
- Replacement after CV joint or shaft failure on Fusion or MKZ models
Installation Notes
Verify the vehicle’s VIN and axle configuration before ordering, especially on 2013-2020 Ford Fusion and 2013-2016 Lincoln MKZ applications. Confirm the 35-spline inboard and 27-spline outboard counts, axle nut thread size, and overall compressed length before installation. Inspect seals, hub condition, and mating components during service, and torque the axle nut to the vehicle manufacturer’s specification.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.
Fitment
- Fits 2013-2020 Ford Fusion, front right.
- Fits 2016-2020 Ford Fusion, front right.
- Fits 2013 Ford Fusion, front right.
- Fits 2013-2016 Lincoln MKZ, front right.
- Fits 2014-2015 Ford Fusion, front right.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2020 | Ford | Fusion | FWD | — | 2.0L | L4 | — | Front Right | VIN 9 (8th Digit); CV Axle Shaft |
| 2020 | Ford | Fusion | FWD | — | 1.5L | L4 | — | Front Right | CV Axle Shaft |
| 2019 | Ford | Fusion | FWD | Automatic | 2.0L | L4 | — | Front Right | VIN 9 (8th Digit); CV Axle Shaft |
| 2019 | Ford | Fusion | FWD | — | 1.5L | L4 | — | Front Right | CV Axle Shaft |
| 2018 | Ford | Fusion | FWD | Automatic | 2.0L | L4 | — | Front Right | VIN 9 (8th Digit); CV Axle Shaft |
| 2018 | Ford | Fusion | FWD | — | 1.5L | L4 | — | Front Right | CV Axle Shaft |
| 2017 | Ford | Fusion | FWD | Automatic | 2.0L | L4 | — | Front Right | VIN 9 (8th Digit); CV Axle Shaft |
| 2017 | Ford | Fusion | FWD | — | 1.5L | L4 | — | Front Right | CV Axle Shaft |
| 2016 | Ford | Fusion | FWD | Automatic | 2.0L | L4 | — | Front Right | VIN 9 (8th Digit); CV Axle Shaft |
| 2016 | Ford | Fusion | FWD | — | 1.5L | L4 | — | Front Right | CV Axle Shaft |
| 2016 | Lincoln | MKZ | FWD | — | 2.0L | L4 | GAS | Front Right | VIN 9 (8th Digit); CV Axle Shaft |
| 2015 | Ford | Fusion | FWD | Automatic | 2.0L | L4 | — | Front Right | VIN 9 (8th Digit); CV Axle Shaft |
| 2015 | Ford | Fusion | FWD | — | 1.5L | L4 | — | Front Right | VIN R (11th digit); CV Axle Shaft |
| 2015 | Lincoln | MKZ | FWD | — | 2.0L | L4 | GAS | Front Right | VIN 9 (8th Digit); CV Axle Shaft |
| 2014 | Ford | Fusion | FWD | Automatic | 2.0L | L4 | — | Front Right | VIN 9 (8th Digit); CV Axle Shaft |
| 2014 | Ford | Fusion | FWD | — | 1.5L | L4 | — | Front Right | VIN R (11th digit); CV Axle Shaft |
| 2014 | Lincoln | MKZ | FWD | — | 2.0L | L4 | GAS | Front Right | VIN 9 (8th Digit); CV Axle Shaft |
| 2013 | Ford | Fusion | FWD | Automatic | 2.0L | L4 | — | Front Right | VIN 9 (8th Digit); CV Axle Shaft |
| 2013 | Ford | Fusion | FWD | Automatic | 1.6L | L4 | — | Front Right | CV Axle Shaft |
| 2013 | Lincoln | MKZ | FWD | — | 2.0L | L4 | GAS | Front Right | VIN 9 (8th Digit); CV Axle Shaft |
