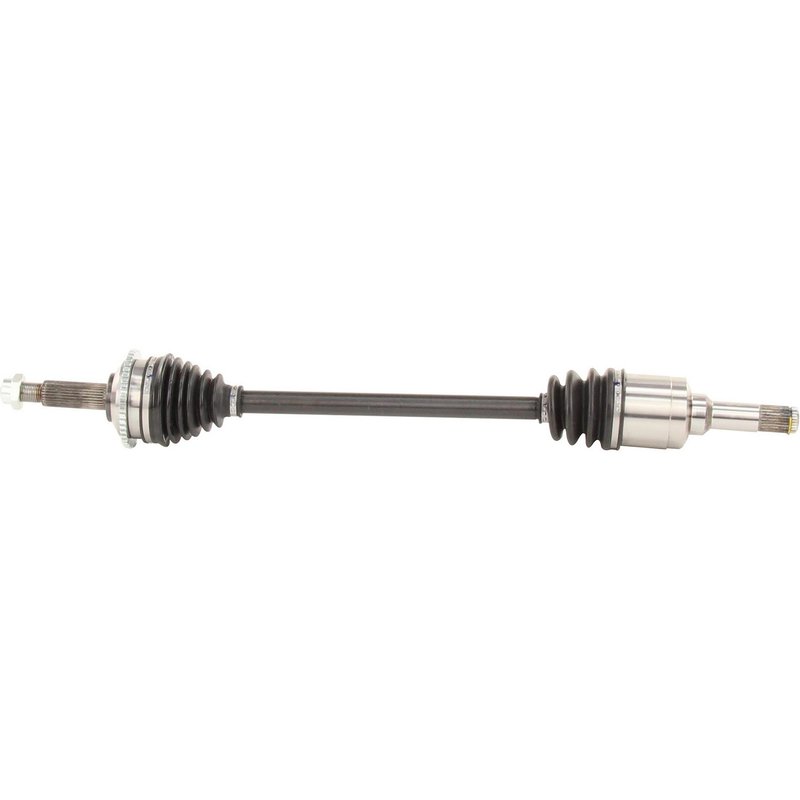

TrakMotive FD-8229 CV Axle Shaft - Rear Right
| Brand | TrakMotive FD-8229 |
|---|---|
| Position | Rear Right |
| Abs Ring Tooth Count | 46 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 33.27 |
| Overall Compressed Length (mm) | 845 |
| Product line | CV Axle Shaft |
| Fits | Ford and Lincoln · 7 vehicles |
Direct replacement. New CV axle shaft with a precise driveline fit and service-ready design.
ABS ring included. Toothed 46-tooth ring supports the specified ABS configuration.
Complete axle nut. Includes a self-locking nut with 36 mm hex size and M24 x 2 thread.
Cross-references Cardone Reman 60-2180, Cardone Reman 60-2181 and Dayco 71242 for the same application. See all 10.
CV Axle Shaft for Rear Right Applications
TrakMotive FD-8229 is a new CV axle shaft built for rear right driveline service. It is a direct replacement style part with a toothed ABS ring, neoprene boot material, and included axle nut for a complete service-focused design.
Key Features
- New CV axle shaft for driveline and axle repair
- Toothed ABS ring with 46 teeth and included tone ring
- Neoprene boot material for flexible joint protection
- Male inboard connection with conventional outboard joint design
- 36 mm axle nut with self-locking thread design included
- Overall compressed length: 33.27 in. (845 mm)
Detailed Description
TrakMotive FD-8229 is engineered as a replacement CV axle shaft for rear right applications on the Lincoln LS and Ford Thunderbird. It uses 28 inboard splines and 28 outboard splines, along with a conventional outboard joint and male inboard shaft connection for a precise driveline match. The ABS setup includes a toothed ring with 46 teeth, making this axle suitable for vehicles that use the specified ABS configuration. FD-8229 is a practical choice when replacing a worn axle on a Lincoln LS or Ford Thunderbird and when the original assembly calls for the same rear right layout.
This part cross-references Cardone Reman 60-2180 and 60-2181 for the same application.
What It Is Used For
- Restoring driveline operation when the axle shaft is worn or damaged
- Addressing clicking, vibration, or binding from a failing CV assembly
- Replacing a damaged ABS tone ring or related axle-side sensor interface
- Correcting spline or joint wear that affects power transfer
Installation Notes and Tips
Verify spline count, compressed length, and ABS ring configuration before installation. This axle includes an axle nut with M24 x 2 thread size and a 36 mm hex head, so confirm the vehicle’s fastener requirements during service. Fitment includes 2003-2006 Lincoln LS, rear right, and 2003-2005 Ford Thunderbird, rear right.
Quality Assurance
TrakMotive lists this axle as a new part and states that it is backed by a limited lifetime warranty. The company also notes ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Lincoln | LS | Rear Right | CV Axle Shaft |
| 2005 | Ford | Thunderbird | Rear Right | CV Axle Shaft |
| 2005 | Lincoln | LS | Rear Right | CV Axle Shaft |
| 2004 | Ford | Thunderbird | Rear Right | CV Axle Shaft |
| 2004 | Lincoln | LS | Rear Right | CV Axle Shaft |
| 2003 | Ford | Thunderbird | Rear Right | CV Axle Shaft |
| 2003 | Lincoln | LS | Rear Right | CV Axle Shaft |
