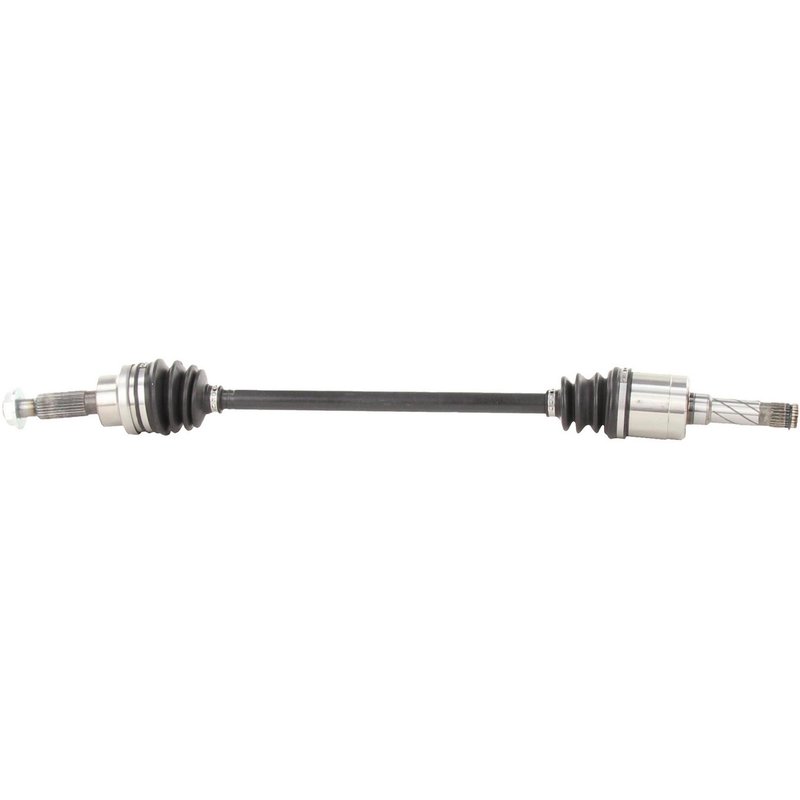

TrakMotive FD-8230 CV Axle Shaft - Rear Left or Rear Right

CV Axle Shaft for Ford Escape Rear Applications

TrakMotive FD-8230 is a new CV axle shaft for select 2013-2016 Ford Escape rear applications. It is built for rear left and rear right positions through 06/23/15, with OE-style dimensions and connection details for direct replacement service.

The TrakMotive CV Axle Shaft line focuses on application-specific driveline fitment, and FD-8230 follows that approach with the correct spline counts, axle nut specification, and ABS tone ring details for the listed Ford Escape rear positions. If you are replacing a worn rear axle on a Ford Escape, FD-8230 provides a direct-fit driveline solution for the specified model years.

• Fits 2013-2016 Ford Escape, rear right through 06/23/15
• Fits 2013-2016 Ford Escape, rear left through 06/23/15
• New CV axle shaft for rear driveline service
• 25 inboard splines and 27 outboard splines
• Male inboard shaft connection with conventional outboard joint type
• Neoprene boot material for axle joint protection
• Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and stake locking type
• ABS tone ring included; magnetic ring with 44 teeth
• Overall compressed length: 32.09 in. (815 mm)

FD-8230 is specified with a male inboard joint, conventional outboard joint, and the correct rear axle dimensions for the listed Ford Escape applications. The included axle nut and ABS tone ring details help match the original service configuration, making this part a practical choice when replacing a worn or noisy rear CV axle on a 2013-2016 Ford Escape. This part cross-references Ford OE numbers such as CV6Z4K138A and CV6Z4K138B for the same application.

Common Problems This Axle Can Address

• Clicking, popping, or vibration from a worn rear CV axle
• Boot damage that has allowed grease loss or contamination
• ABS warning concerns related to a damaged tone ring assembly
• Excessive driveline play from worn axle joints or splines
• Noise during acceleration or low-speed turning from rear axle wear

Installation Notes

Verify rear left or rear right position, model year, and the 06/23/15 build cutoff before ordering. Confirm axle nut thread size, hex size, and spline count against the original part, and inspect the hub, seals, and mating components during installation. Because this axle includes an ABS tone ring, make sure the sensor and ring orientation match the vehicle’s original setup.

Quality Assurance

TrakMotive manufactures this CV axle shaft as a new replacement part and states that the product line is backed by a limited lifetime warranty. The company also notes ISO 9001:1007 and TS 16949:2009 certification for its manufacturing processes.
