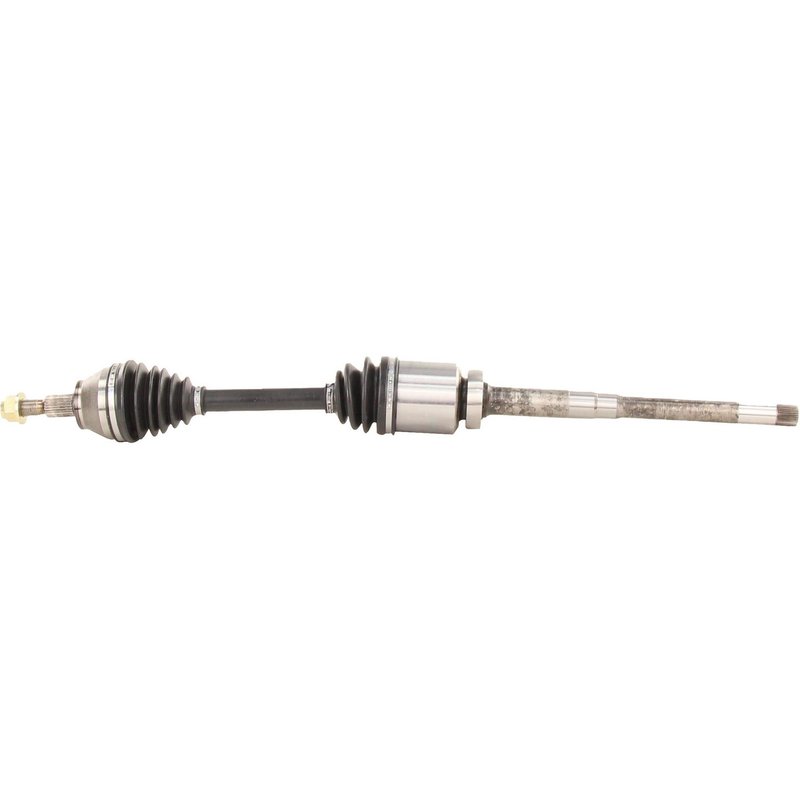

TrakMotive FD-8232 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft FD-8232 for Ford Escape

The TrakMotive CV Axle Shaft FD-8232 is designed specifically for Ford Escape models, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining smooth vehicle operation.

• Compatible with Ford Escape vehicles
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced durability
• Male inboard joint with 35 splines and conventional outboard joint with 27 splines
• Overall compressed length of 37.56 inches (954 mm)
• Axle nut thread size M22*1.5 with 1 1/4 inch hex size

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components engineered for precise fitment and durability. This line includes shafts with neoprene boots and self-locking axle nuts to ensure secure installation and long service life. The FD-8232 model exemplifies these features, tailored for the Ford Escape's driveline requirements.

Technical Specifications and Features

The FD-8232 CV axle shaft features a neoprene boot that resists wear and environmental damage, helping to protect the internal joints. The inboard joint is a male type with 35 splines, while the outboard joint is conventional with 27 splines, ensuring compatibility with the Ford Escape's drivetrain. The included axle nut is self-locking with a hex head measuring 1 1/4 inches (31.4 mm) across flats and a length of 1 3/7 inches (36.2 mm), designed to maintain secure fastening under operating conditions. The overall compressed length of 37.56 inches (954 mm) matches factory specifications for proper fitment.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Ford Escape models
• Elimination of clicking or popping noises during turns caused by joint wear
• Resolution of vibration or shuddering issues related to axle imbalance or joint failure
• Repair of torn or leaking CV boots to prevent grease loss and contamination
• Restoration of driveline integrity after axle shaft bending or breakage

Installation Notes and Tips

When installing the TrakMotive FD-8232 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications to engage the self-locking feature properly. Inspect the axle housing and surrounding components for wear or damage before installation. The neoprene boot should be checked for proper seating to prevent premature failure. Use appropriate tools for the 1 1/4 inch hex axle nut to avoid rounding or damage.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. The inclusion of a self-locking axle nut and durable neoprene boot supports long-term reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure consistent performance in Ford Escape driveline applications.
