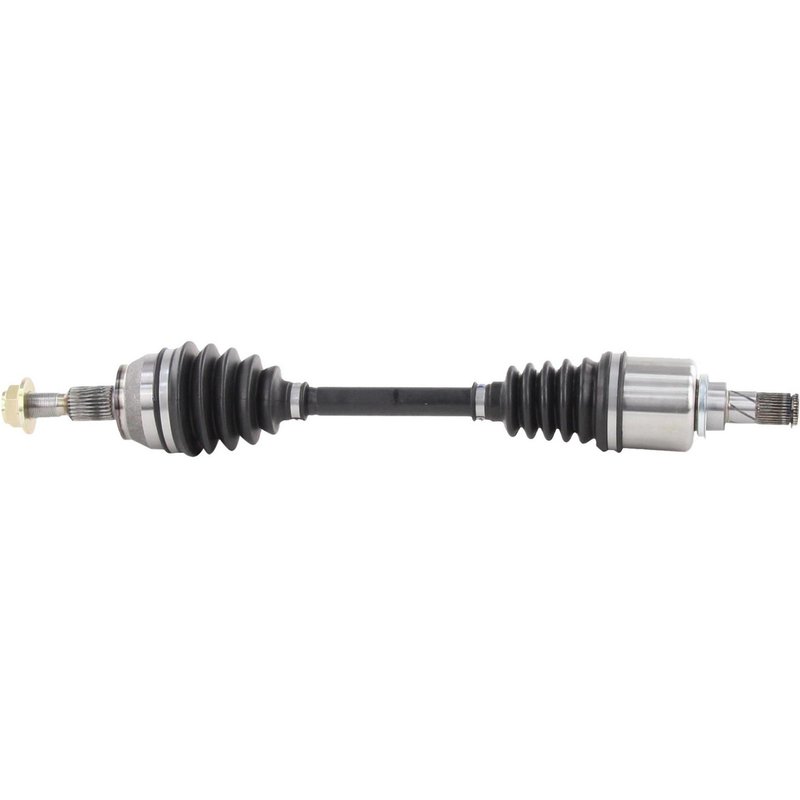

TrakMotive FD-8234 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft FD-8234

The TrakMotive CV Axle Shaft FD-8234 is designed for reliable driveline performance in Ford Explorer and Ford Focus models. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining vehicle stability and handling.

• Compatible with Ford Explorer and Ford Focus vehicles
• Includes a self-locking hex axle nut (M22*1.5 thread size)
• Neoprene boot material for enhanced durability
• Inboard joint with 34 splines and male connection style
• Outboard conventional joint with 27 splines
• Overall compressed length of 24.13 inches (613 mm)
• Axle nut dimensions: 1 1/4 inch hex size, 5/6 inch height, 1 1/3 inch length

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality CV components engineered for precise fitment and durability. This line emphasizes compatibility with specific vehicle makes and models, such as the Ford Explorer and Focus, ensuring that each axle shaft meets OEM specifications for joint types, spline counts, and boot materials.

Technical Description and Features

This CV axle shaft features a neoprene boot that provides resistance to wear and environmental factors, helping to protect the internal joints. The inboard joint is a male type with 34 splines, while the outboard joint is conventional with 27 splines, designed to match the factory connection styles on compatible Ford vehicles. The included axle nut is a self-locking hex type, sized at 1 1/4 inches across flats, with a thread size of M22*1.5, ensuring secure installation and reliable performance. The overall compressed length of 24.13 inches (613 mm) fits the specified Ford models accurately.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Ford Explorer and Focus
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by restoring boot integrity with durable neoprene material
• Addresses axle nut loosening with included self-locking hex nut

Installation Notes and Tips

• Verify vehicle compatibility with Ford Explorer or Focus before installation
• Use proper torque specifications for the M22*1.5 self-locking axle nut
• Inspect surrounding suspension components during installation for wear
• Ensure the neoprene boot is properly seated to prevent contamination
• Check spline engagement on both inboard and outboard joints for secure fit

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FD-8234 is a new, remanufactured-free component built to meet or exceed OEM standards. It includes a self-locking axle nut to maintain secure attachment and is constructed with durable materials such as neoprene for the boot. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Ford Explorer and Focus vehicles.
