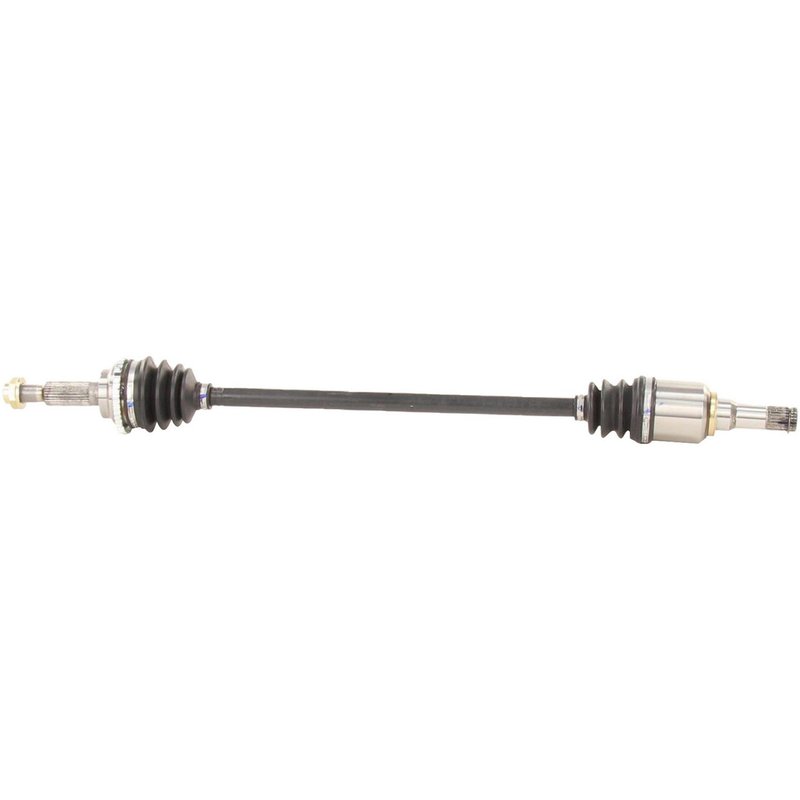

TrakMotive FD-8236 CV Axle Shaft - Rear Right
| Brand | TrakMotive FD-8236 |
|---|---|
| Position | Rear Right |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 33.23 |
| Overall Compressed Length (mm) | 844 |
| Product line | CV Axle Shaft |
| Fits | Ford, Mazda, and Mercury · 13 vehicles |
New CV axle shaft. Built as a direct replacement for driveline and CV component service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Toothed ring is already installed for ABS-equipped applications.
Cross-references Cardone New 66-2242, TrakMotive FD-8236 and 8L8Z4K138A for the same application. See all 9.
Rear Right CV Axle Shaft for Ford, Mazda, and Mercury
TrakMotive FD-8236 is a new rear right CV axle shaft built for specific all-wheel-drive applications that need precise driveline fitment and dependable joint operation. It is engineered for 2008-2012 Ford Escape, 2008-2011 Mazda Tribute, and 2008-2011 Mercury Mariner rear right positions.
This CV axle shaft uses a male inboard connection, a conventional outboard joint, and a neoprene boot material. It includes a toothed ABS tone ring with 44 teeth, along with the axle nut and stake-style locking hardware specified for the application. TrakMotive FD-8236 is a direct replacement option for rear right driveline service on these vehicles.
Key Features
- Part number FD-8236 for rear right CV axle replacement
- Fits 2008-2012 Ford Escape, rear right
- Fits 2008-2011 Mazda Tribute, rear right
- Fits 2008-2011 Mercury Mariner, rear right
- New axle shaft with 25 inboard splines and 26 outboard splines
- 44-tooth toothed ABS ring with tone ring included
- Neoprene boot material for driveline protection
- Includes axle nut with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
- Overall compressed length: 844 mm (33.23 in)
Product Details
TrakMotive CV Axle Shaft FD-8236 is part of the brand’s CV Axle Shaft line and is built for rear right service on Ford Escape, Mazda Tribute, and Mercury Mariner applications listed above. The shaft is configured with a male inboard shaft connection and a conventional outboard joint, matching the specified driveline layout for these vehicles. The included ABS tone ring and 44-tooth ring design support vehicles that use wheel speed sensing at the axle.
Cross-reference part numbers for the same application include Cardone New 66-2242 and 60-2241.
Common Problems This Part Can Address
- Clicking or popping from a worn rear axle joint
- Vibration during acceleration from driveline wear
- ABS warning concerns related to a damaged tone ring
- Boot failure that exposes the joint to contamination
- Excessive play or noise from a fatigued rear right axle shaft
Installation Notes
Verify rear right fitment by year, make, and model before installation. Confirm axle nut thread size, hex size, and locking style against the vehicle’s service requirements. Inspect the hub, seals, and surrounding suspension components during replacement, and torque fasteners to the manufacturer’s specifications.
Because this axle includes ABS ring details and an axle nut, match the vehicle’s original configuration before installation. The listed fitment covers 2008-2012 Ford Escape, 2008-2011 Mazda Tribute, and 2008-2011 Mercury Mariner in the rear right position.
Quality Assurance
TrakMotive manufactures this axle shaft as a new replacement component in an ISO 9001:1007 and TS 16949:2009 certified facility. FD-8236 is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Ford | Escape | 4WD | — | Rear Right | CV Axle Shaft |
| 2011 | Ford | Escape | 4WD | — | Rear Right | CV Axle Shaft |
| 2011 | Mazda | Tribute | 4WD | — | Rear Right | CV Axle Shaft |
| 2011 | Mercury | Mariner | FWD | — | Rear Right | CV Axle Shaft |
| 2010 | Ford | Escape | 4WD | — | Rear Right | CV Axle Shaft |
| 2010 | Mazda | Tribute | 4WD | — | Rear Right | CV Axle Shaft |
| 2010 | Mercury | Mariner | AWD | — | Rear Right | CV Axle Shaft |
| 2009 | Ford | Escape | 4WD | Automatic | Rear Right | CV Axle Shaft |
| 2009 | Mazda | Tribute | 4WD | — | Rear Right | CV Axle Shaft |
| 2009 | Mercury | Mariner | AWD | — | Rear Right | CV Axle Shaft |
| 2008 | Ford | Escape | 4WD | — | Rear Right | CV Axle Shaft |
| 2008 | Mazda | Tribute | 4WD | — | Rear Right | CV Axle Shaft |
| 2008 | Mercury | Mariner | AWD | — | Rear Right | CV Axle Shaft |
