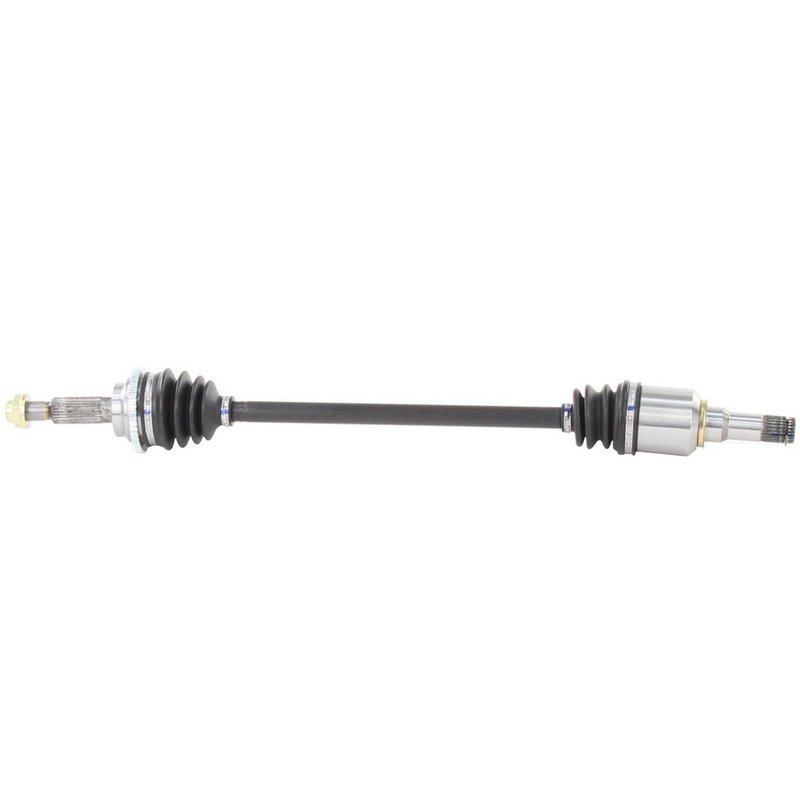

TrakMotive FD-8237 CV Axle Shaft - Rear Left
| Brand | TrakMotive FD-8237 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 30.47 |
| Overall Compressed Length (mm) | 774 |
| Product line | CV Axle Shaft |
| Fits | Ford, Mazda, and Mercury · 16 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable sealing.
ABS tone ring included. Toothed ring is built in for compatible ABS applications.
Certified manufacturing. Made by an ISO 9001 and TS 16949 certified company.
Cross-references Cardone New 66-2241, TrakMotive FD-8237 and 8L8Z4K139A for the same application. See all 7.
TrakMotive FD-8237 Rear Left CV Axle Shaft
The TrakMotive FD-8237 is a new rear left CV axle shaft built for specific Ford, Mazda, and Mercury applications. It is engineered with a neoprene boot, included axle nut, and ABS tone ring to match the needs of vehicles equipped with rear-wheel axle sensor hardware.
Key Features
- New CV axle shaft for rear left applications
- Fits 2008-2012 Ford Escape, rear left
- Fits 2008-2011 Mazda Tribute, rear left
- Fits 2008-2011 Mercury Mariner, rear left
- ABS ring tooth count: 44 with toothed ring design
- ABS tone ring included
- Neoprene boot material for drivetrain protection
- Includes axle nut with M22 x 1.5 thread size
- Male inboard shaft connection with conventional outboard joint
- Overall compressed length: 30.47 in. (774 mm)
Product Details
TrakMotive FD-8237 is a CV axle shaft for rear left service on the Ford Escape, Mazda Tribute, and Mercury Mariner within the listed model years. The axle uses a male inboard connection, a conventional outboard joint, and 25 inboard splines with 26 outboard splines for the specified fitment. Its ABS tone ring and 44-tooth toothed ring support vehicles that use wheel speed sensing at the axle.
This part cross-references Cardone New 66-2241 for the same application. TrakMotive FD-8237 is a direct-fit driveline replacement for rear left axle service on 2008-2012 Ford Escape, 2008-2011 Mazda Tribute, and 2008-2011 Mercury Mariner applications.
Common Problems It Can Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration or cruising
- Boot damage that has allowed grease loss or contamination
- ABS warning concerns related to axle-mounted tone ring wear
- Excessive drivetrain play from a fatigued axle shaft
Installation Notes
Verify rear left fitment by year, make, and model before installation. Confirm axle nut thread size, spline count, and ABS ring configuration against the original part. Inspect the hub, seals, and surrounding suspension components during replacement to help prevent repeat failure. Torque the included axle nut to the vehicle manufacturer’s specification and stake it as required.
Quality Assurance
TrakMotive manufactures this axle shaft as a new replacement part and backs it with a limited lifetime warranty. The company states that its manufacturing system is ISO 9001:1007 and TS 16949:2009 certified.
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Ford | Escape | 4WD | — | Rear Left | CV Axle Shaft |
| 2011 | Ford | Escape | 4WD | — | Rear Left | CV Axle Shaft |
| 2011 | Mazda | Tribute | 4WD | — | Rear Left | CV Axle Shaft |
| 2011 | Mercury | Mariner | 4WD | — | Rear Left | CV Axle Shaft |
| 2010 | Ford | Escape | 4WD | — | Rear Left | CV Axle Shaft |
| 2010 | Mazda | Tribute | 4WD | — | Rear Left | CV Axle Shaft |
| 2010 | Mercury | Mariner | AWD | — | Rear Left | CV Axle Shaft |
| 2010 | Mercury | Mariner | 4WD | — | Rear Left | CV Axle Shaft |
| 2009 | Ford | Escape | 4WD | Automatic | Rear Left | CV Axle Shaft |
| 2009 | Mazda | Tribute | 4WD | — | Rear Left | CV Axle Shaft |
| 2009 | Mercury | Mariner | AWD | — | Rear Left | CV Axle Shaft |
| 2009 | Mercury | Mariner | 4WD | — | Rear Left | CV Axle Shaft |
| 2008 | Ford | Escape | 4WD | — | Rear Left | CV Axle Shaft |
| 2008 | Mazda | Tribute | 4WD | — | Rear Left | CV Axle Shaft |
| 2008 | Mercury | Mariner | AWD | — | Rear Left | CV Axle Shaft |
| 2008 | Mercury | Mariner | 4WD | — | Rear Left | CV Axle Shaft |
