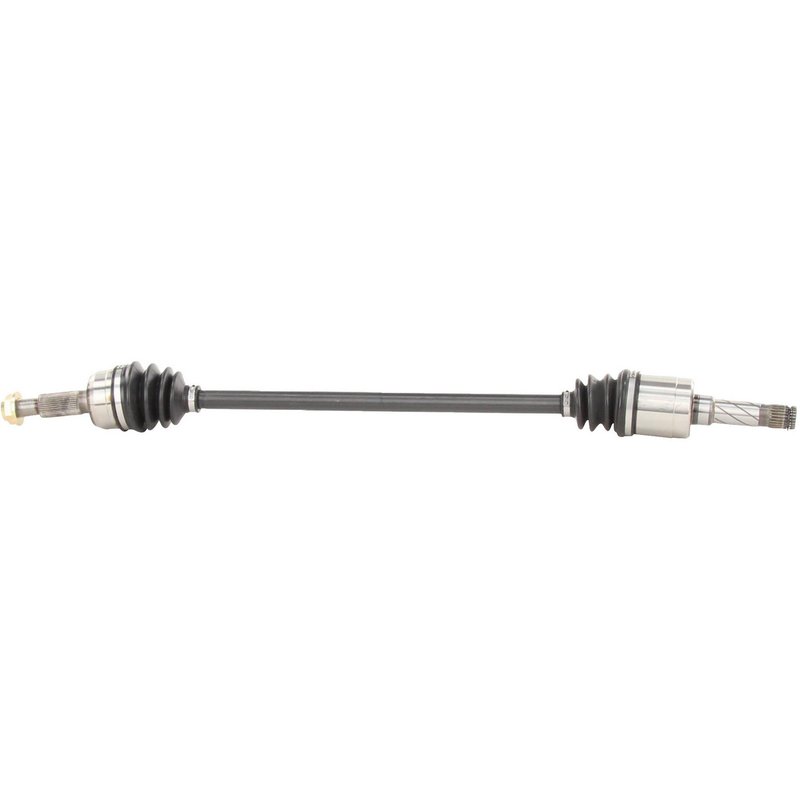

TrakMotive FD-8240 CV Axle Shaft - Rear Right
| Brand | TrakMotive FD-8240 |
|---|---|
| Position | Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 34.41 |
| Overall Compressed Length (mm) | 874 |
| Product line | CV Axle Shaft |
| Fits | Lincoln and Ford · 6 vehicles |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot material. Helps protect the joint from dirt and moisture.
Axle nut included. Self-locking hardware is ready for installation.
Cross-references TrakMotive FD-8240, 169240 and DT4Z4K138A for the same application. See all 7.
Rear Right CV Axle Shaft for Edge and MKX
TrakMotive FD-8240 is a new rear right CV axle shaft for select Ford Edge and Lincoln MKX applications. It is built with a neoprene boot, a male inboard shaft connection, and a conventional outboard joint for direct driveline service on the listed vehicles.
Key Features
- New CV axle shaft for rear right driveline replacement
- Fits 2012-2015 Lincoln MKX, rear right, from 7/30/12
- Fits 2013 Ford Edge, rear right, from 7/30/12
- Fits 2014 Ford Edge, rear right
- Neoprene boot material for CV joint protection
- Male inboard joint with conventional outboard joint design
- Includes axle nut with M22 x 1.5 thread, 31.8 mm hex size, and self-locking style
- Overall compressed length: 34.41 in. (874 mm)
- ABS tone ring not included
Product Details
TrakMotive FD-8240 is a CV axle shaft for rear right service on the Ford Edge and Lincoln MKX platform. This axle uses 25 inboard splines and 38 outboard splines, with a male inboard shaft connection and a conventional outboard shaft connection. The axle nut is included, and the assembly is built as a new replacement part for driveline repair on the specified applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Clunking or clicking from the rear driveline during acceleration or turning
- Vibration caused by a worn or damaged CV axle shaft
- Torn boot or grease loss at the CV joint
- Axle play from worn splines or joint wear
- Rear right axle replacement after driveline damage
Installation Notes
Verify rear right fitment by year, model, and build date before installation. Confirm the axle nut thread size, hex size, and spline count match the original part. Inspect related seals, hubs, and suspension components during service to help ensure a proper repair on Ford Edge and Lincoln MKX applications.
Quality Assurance
TrakMotive identifies this CV axle shaft as a new replacement part and notes ISO 9001:1007 and TS 16949:2009 certified company standards. The manufacturer also states a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2015 | Lincoln | MKX | AWD | Rear Right | From 7/30/12; CV Axle Shaft |
| 2014 | Ford | Edge | AWD | Rear Right | CV Axle Shaft |
| 2014 | Lincoln | MKX | AWD | Rear Right | From 7/30/12; CV Axle Shaft |
| 2013 | Ford | Edge | AWD | Rear Right | From 7/30/12; CV Axle Shaft |
| 2013 | Lincoln | MKX | AWD | Rear Right | From 7/30/12; CV Axle Shaft |
| 2012 | Lincoln | MKX | AWD | Rear Right | From 7/30/12; CV Axle Shaft |
