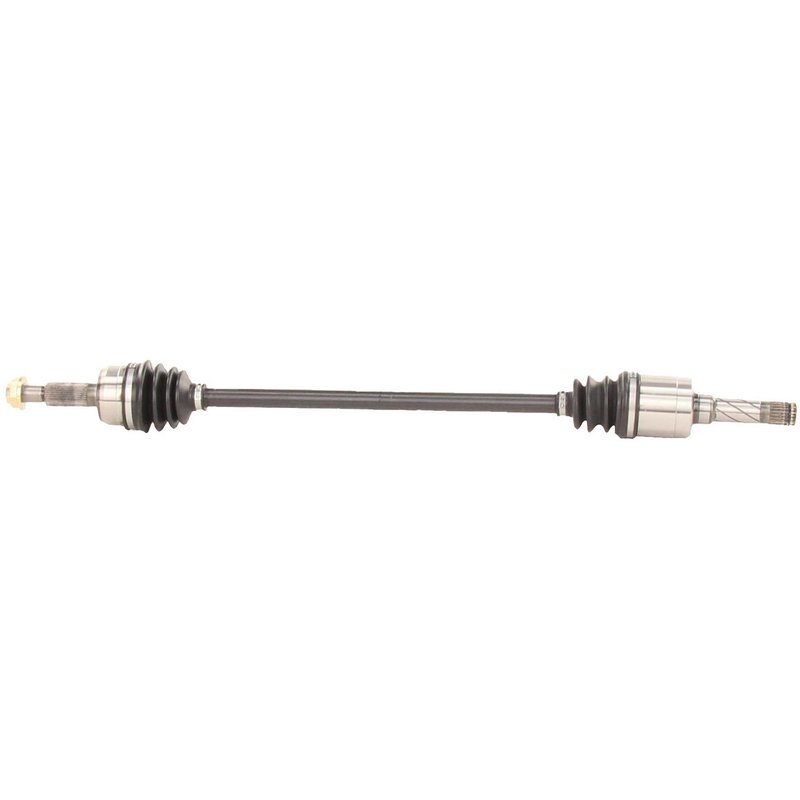

TrakMotive FD-8241 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft FD-8241

The TrakMotive CV Axle Shaft FD-8241 is designed specifically for Ford Edge and Lincoln MKX models, providing reliable driveline performance. This new CV axle shaft ensures proper torque transfer and smooth vehicle operation without the need for an ABS tone ring.

• Compatible with Ford Edge and Lincoln MKX
• Includes self-locking axle nut with hex head
• Neoprene boot material for durability
• Male inboard joint with 25 splines
• Conventional outboard joint with 38 splines
• Overall compressed length of 33.46 inches (850 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality CV components engineered for specific vehicle applications. The FD-8241 model features a neoprene boot for enhanced resistance to wear and environmental factors, and a self-locking axle nut designed to maintain secure fitment. This product line emphasizes precise fit and reliable driveline connection for Ford and Lincoln vehicles.

Technical Specifications and Features

The FD-8241 CV axle shaft includes a hex head axle nut measuring 1 1/4 inches (31.8 mm) across flats, with a height of 3/4 inch (18.9 mm) and a length of 1 1/3 inches (34.4 mm). The axle nut features a self-locking design with an M22x1.5 thread size to ensure secure installation. The inboard joint is male type with 25 splines, while the outboard joint is conventional with 38 splines, providing compatibility with the specified vehicle driveline systems. The neoprene boot material offers durability against heat and contaminants, extending the service life of the axle shaft.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Ford Edge and Lincoln MKX
• Addresses issues with axle vibration or clicking noises during turns
• Resolves grease leakage from torn or degraded CV boots
• Restores proper driveline torque transfer and vehicle stability
• Prevents axle nut loosening with self-locking design

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft FD-8241, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the axle shaft splines for proper engagement with the transmission and wheel hub. The neoprene boot should be checked for proper seating to prevent contamination. This part is designed for direct replacement on compatible Ford Edge and Lincoln MKX models, simplifying installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FD-8241 is a new, not remanufactured, component built to meet OEM standards. It includes a self-locking axle nut and durable neoprene boot to ensure long-term reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support vehicle safety and performance.
