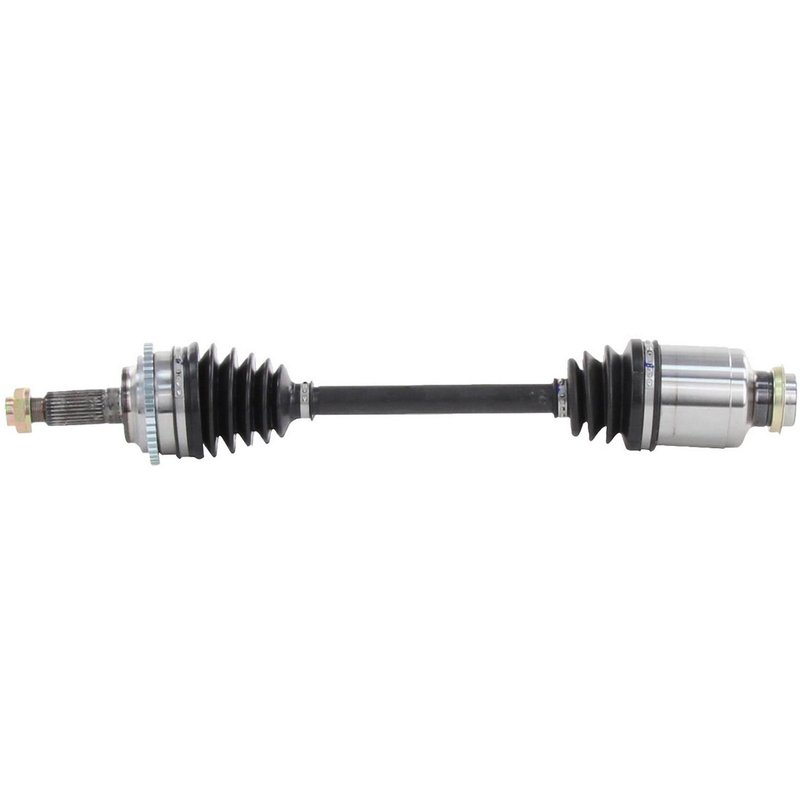

TrakMotive FD-8242 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-8242 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28-2 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.86 |
| Overall Compressed Length (mm) | 606 |
| Product line | CV Axle Shaft |
| Fits | Ford · 2 vehicles |
New CV axle shaft. Built with a neoprene boot for dependable joint protection.
ABS tone ring included. Ready for applications that use a toothed ABS ring.
OE-style hardware included. Axle nut comes with the shaft for a complete install.
Cross-references TrakMotive FD-8242, 169242 and DG9Z3B436A for the same application. See all 7.
Front Right CV Axle Shaft for Ford Fusion
Restore driveline performance with the TrakMotive FD-8242 CV axle shaft for the front right position. This new axle is built for 2013-2014 Ford Fusion applications and includes the axle nut and ABS tone ring details needed for the listed fitment.
Key Features
- Fits 2013-2014 Ford Fusion, front right
- TrakMotive CV Axle Shaft, part number FD-8242
- New axle shaft with neoprene boot material
- Inboard joint type: female; outboard joint type: conventional
- ABS tone ring included with 44-tooth toothed ring
- Axle nut included with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
- Overall compressed length: 23.86 in. (606 mm)
- ISO 9001:1007 and TS 16949:2009 certified manufacturing
Product Details
The TrakMotive FD-8242 is a front right CV axle shaft engineered for 2013-2014 Ford Fusion models. It features a female inboard connection, a conventional outboard joint, and a neoprene boot for the listed application. The axle is supplied new and includes ABS tone ring specifications that match the fitment requirements for these Ford Fusion vehicles. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What This Axle Shaft Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage caused by a damaged axle boot
- Driveline play or looseness at the front right axle position
- ABS-related concerns when the tone ring or sensor trigger surface is worn
Installation Notes and Tips
Verify the axle nut thread size, hex size, and locking style before installation. Confirm the front right position and compare spline counts, compressed length, and ABS ring details against the removed part. Always inspect related seals, hub components, and suspension hardware for wear before completing the repair on a Ford Fusion.
Quality Assurance
TrakMotive manufactures this CV axle shaft under ISO 9001:1007 and TS 16949:2009 certified quality systems. The FD-8242 is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2014 | Ford | Fusion | FWD | Manual | 1.6L | L4 | Front Right | CV Axle Shaft |
| 2013 | Ford | Fusion | FWD | Manual | 1.6L | L4 | Front Right | CV Axle Shaft |
