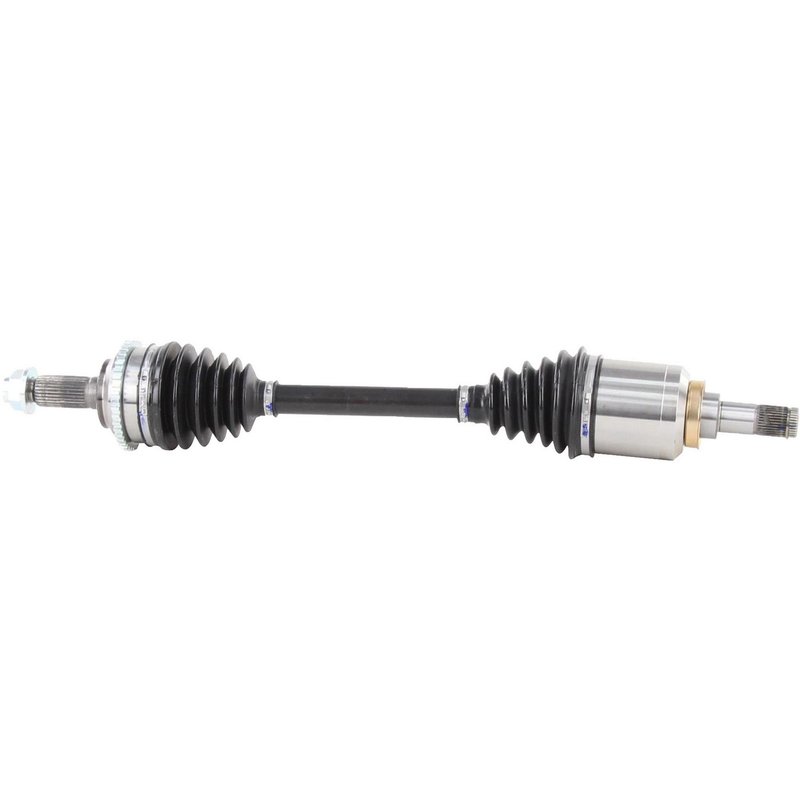

TrakMotive FD-8245 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft FD-8245

The TrakMotive CV Axle Shaft FD-8245 is engineered for reliable driveline performance in select Ford, Lincoln, and Mercury vehicles. Designed specifically for models like the Fusion, Milan, and MKZ, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Ford Fusion, Lincoln MKZ, and Mercury Milan
• Includes a neoprene boot for enhanced protection
• Equipped with a 44-tooth ABS ring and included tone ring
• Comes with a hex head axle nut (1 1/4 inch hex size)
• Overall compressed length of 25.75 inches (654 mm)
• Stake-type locking axle nut with M22x1.5 thread size
• Inboard joint features a male connection with 35 splines
• Outboard joint uses a conventional connection with 28 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft line focuses on delivering precise driveline components tailored for specific vehicle applications. This product line emphasizes quality materials such as neoprene boots and includes essential hardware like axle nuts and ABS tone rings to maintain vehicle safety and performance. The FD-8245 model exemplifies this approach by integrating all necessary components for a direct replacement in compatible Ford, Lincoln, and Mercury models.

Technical Description and Specifications

The FD-8245 CV axle shaft features a 44-tooth toothed ABS ring with an included tone ring to ensure accurate wheel speed sensor readings. The neoprene boot material provides resistance against environmental factors, extending the joint's service life. The inboard joint is a male type with 35 splines, while the outboard joint is conventional with 28 splines, designed to match factory specifications. The axle nut included is a hex head type measuring 1 1/4 inches across flats, with a height of 1 inch (24 mm) and a length of 1 1/2 inches (37 mm). It uses a stake locking mechanism and an M22x1.5 thread size to secure the axle shaft firmly in place. The overall compressed length of 25.75 inches (654 mm) ensures proper fitment within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Ford Fusion, Lincoln MKZ, and Mercury Milan
• Addresses issues with torn or leaking CV boots
• Resolves axle shaft vibration or clicking noises during turns
• Restores proper ABS sensor function with included tone ring
• Fixes axle nut thread or locking failures

Installation Notes and Tips

• Verify vehicle compatibility with Ford Fusion, Lincoln MKZ, or Mercury Milan before installation
• Ensure the stake locking axle nut is properly secured to factory torque specifications
• Inspect surrounding suspension and driveline components during replacement
• Use appropriate tools for the 1 1/4 inch hex axle nut to avoid damage
• Check ABS sensor connections after installation to confirm tone ring alignment

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FD-8245 is a new, not remanufactured, component built to meet OEM standards. It includes all necessary hardware for installation and is manufactured with durable materials such as neoprene boots and precision-machined splines. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in compatible Ford, Lincoln, and Mercury vehicles.
