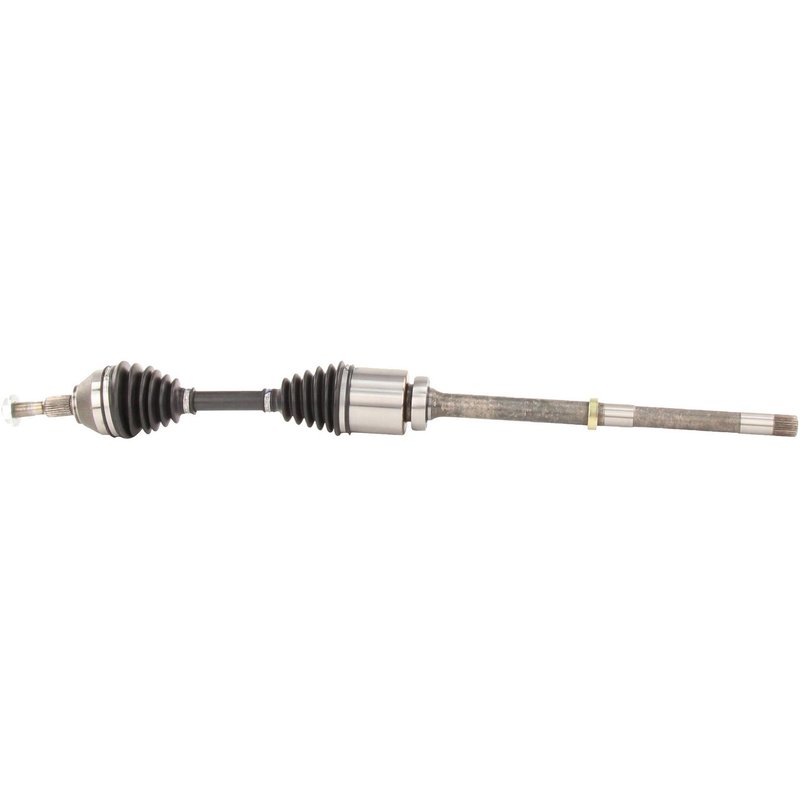

TrakMotive FD-8259 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-8259 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/7 |
| Axle Nut Height (mm) | 14.5 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 40.87 |
| Overall Compressed Length (mm) | 1038 |
| Product line | CV Axle Shaft |
| Fits | Lincoln · 4 vehicles |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot material. Helps protect the joint from dirt and moisture.
Axle nut included. Conveniently supplied with a stake-locking hex nut.
Cross-references TrakMotive FD-8259, 169259 and DP5Z3B436B for the same application. See all 4.
Front Right CV Axle Shaft for Lincoln MKZ
TrakMotive FD-8259 is a new CV axle shaft for the front right position on select 2013-2016 Lincoln MKZ models. It is built with a neoprene boot, 27 inboard splines, 27 outboard splines, and includes the axle nut for a direct replacement on the specified application.
Key Features
- Fits 2013-2016 Lincoln MKZ, front right
- New CV axle shaft for driveline and axle service
- Male inboard shaft connection style
- Conventional outboard joint and shaft connection style
- Neoprene boot material for axle joint protection
- 27 inboard splines and 27 outboard splines
- Axle nut included; M22 x 1.5 thread size, 32 mm hex
- Overall compressed length: 40.87 in. (1038 mm)
- TrakMotive FD-8259 cross-references to OE-style applications
Product Details
This TrakMotive CV axle shaft is engineered for the front right side of the Lincoln MKZ from 2013 through 2016. The axle uses a male inboard connection and a conventional outboard joint layout, with a neoprene boot to help protect the joint area during normal driveline operation. The axle nut is included and uses a stake-style locking design with a 1 1/4 in. hex size.
TrakMotive positions the FD-8259 within its CV Axle Shaft line for replacement service where a direct-fit driveline component is needed. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What This Part Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Torn boot conditions that can lead to grease loss and joint wear
- Axle play or driveline looseness at the front right corner
- Replacement needs after axle damage or spline wear
Installation Notes and Tips
Verify spline count, compressed length, axle nut thread size, and front right fitment before installation. Inspect the hub, seals, and surrounding suspension components for wear before installing the new axle. Because the axle nut is included, confirm the correct stake-style tightening procedure and torque specification for the vehicle service manual.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for replacement driveline parts.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2016 | Lincoln | MKZ | AWD | 3.7L | V6 | Front Right | CV Axle Shaft |
| 2015 | Lincoln | MKZ | AWD | 3.7L | V6 | Front Right | CV Axle Shaft |
| 2014 | Lincoln | MKZ | AWD | 3.7L | V6 | Front Right | CV Axle Shaft |
| 2013 | Lincoln | MKZ | AWD | 3.7L | V6 | Front Right | CV Axle Shaft |
