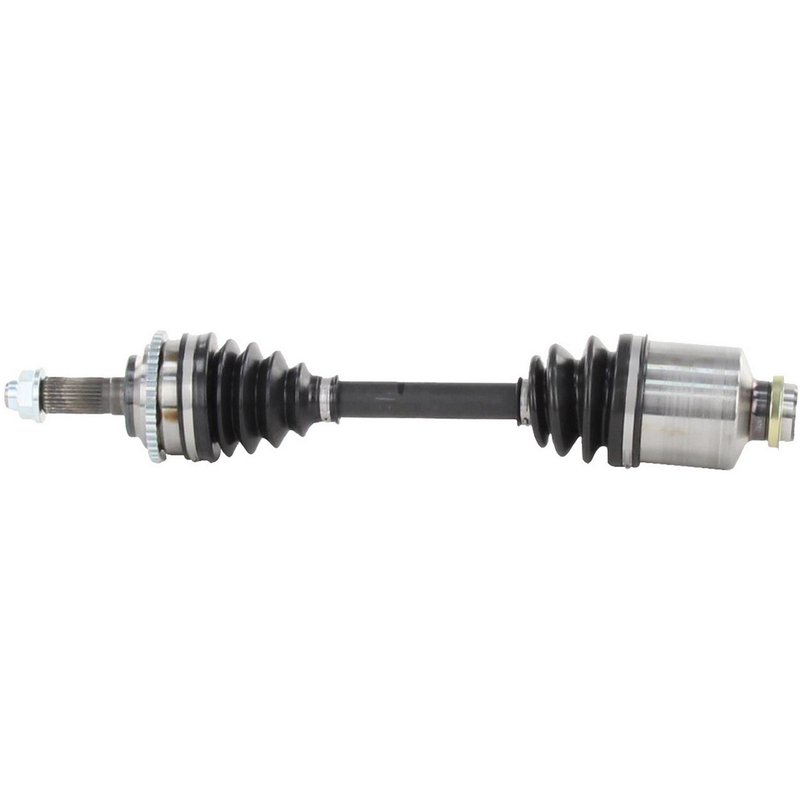

TrakMotive FD-8271 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-8271 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28-2 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 21.85 |
| Overall Compressed Length (mm) | 555 |
| Product line | AAR CV Axle Shaft |
| Fits | Lincoln · 3 vehicles |
New assembly. Fresh CV axle shaft with a neoprene boot for dependable operation.
ABS tone ring included. Toothed ring with 44 teeth for integrated wheel speed sensing.
Hardware included. Axle nut is included for a more complete installation.
Cross-references GSP NCV11558, TrakMotive FD-8271 and NCV11229 for the same application. See all 3.
Front Right CV Axle Shaft for Lincoln MKZ
The TrakMotive AAR CV Axle Shaft FD-8271 is a new front right axle assembly for 2007-2009 Lincoln MKZ applications. It is built with a neoprene boot, a 44-tooth toothed ABS ring, and a 32 mm axle nut to match the listed fitment and connection details.
The AAR CV Axle Shaft line from TrakMotive focuses on application-specific driveline replacement parts with OE-style fitment details. For this Lincoln MKZ front right application, FD-8271 is listed with a female inboard joint, spline outboard connection, and an overall compressed length of 21.85 in (555 mm).
- Fits 2007-2009 Lincoln MKZ, front right
- New CV axle shaft with OE-style fitment details
- Neoprene boot material for driveline protection
- 44-tooth toothed ABS ring with tone ring included
- Female inboard joint and spline outboard shaft connection
- Overall compressed length: 21.85 in (555 mm)
- Axle nut included with M22 x 1.5 thread, 32 mm hex size, and stake locking type
FD-8271 is a direct-fit driveline replacement for the front right side of the Lincoln MKZ in the listed model years. It uses 28-2 inboard splines and 28 outboard splines, with a conventional outboard joint type and a female inboard shaft connection style. This part cross-references GSP NCV11558 and NCV11229 for the same application.
Common Replacement Uses
- Restoring driveline function after CV joint wear
- Replacing a damaged axle shaft or torn boot
- Addressing clicking or vibration during turns and acceleration
- Correcting ABS-related axle ring mismatch on the front right side
- Replacing a worn axle assembly on a 2007-2009 Lincoln MKZ
Installation Notes
Verify front right fitment, spline count, axle nut thread size, and ABS ring details before installation. Confirm that the vehicle uses the listed 44-tooth toothed ABS configuration and compare the compressed length to the original axle. The included axle nut uses a stake locking design and should be installed to the vehicle manufacturer’s torque and staking specifications.
Quality Assurance
TrakMotive lists this AAR CV Axle Shaft as a new part and backs it with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for this driveline component.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Lincoln | MKZ | Front Right | Updated Design; AAR CV Axle Shaft |
| 2008 | Lincoln | MKZ | Front Right | Updated Design; AAR CV Axle Shaft |
| 2007 | Lincoln | MKZ | Front Right | Updated Design; AAR CV Axle Shaft |
| No rows match your filter. | ||||
