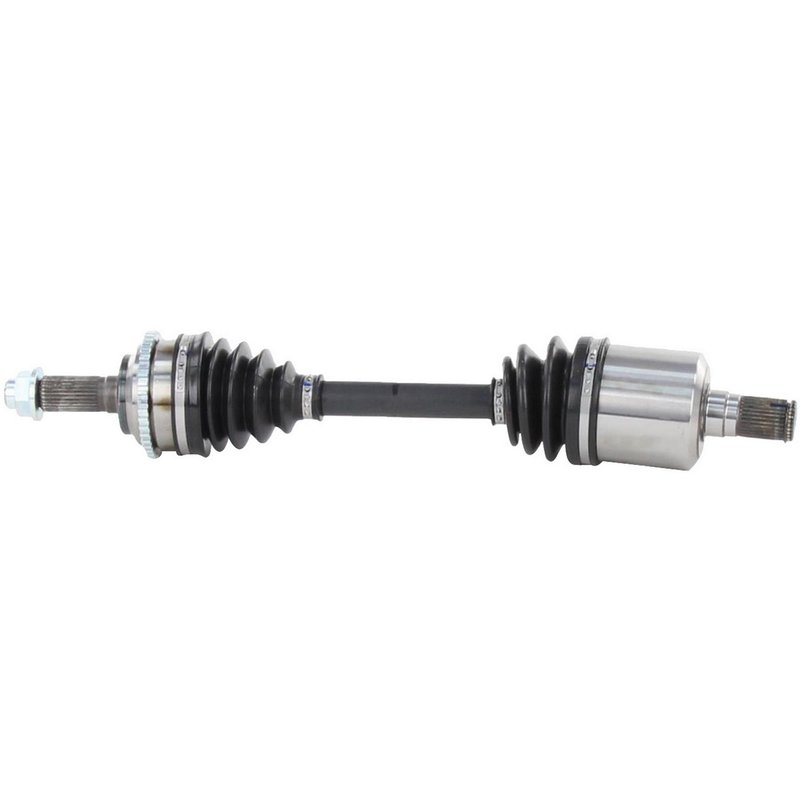

TrakMotive FD-8272 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-8272 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 22.8 |
| Overall Compressed Length (mm) | 579 |
| Product line | AAR CV Axle Shaft |
| Fits | Lincoln · 3 vehicles |
New CV axle shaft. Built as a direct replacement for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Ready for applications that use a toothed sensor ring.
Cross-references TrakMotive FD-8272 and NCV1159 for the same application. See all 2.
Front Left CV Axle Shaft for Lincoln MKZ
The TrakMotive AAR CV Axle Shaft FD-8272 is a new front left axle assembly for 2007-2009 Lincoln MKZ applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the specified vehicle fitment.
Key Features
- Fits 2007-2009 Lincoln MKZ, front left
- TrakMotive AAR CV Axle Shaft, part number FD-8272
- New replacement axle shaft for driveline repair
- 31 inboard splines and 28 outboard splines
- Overall compressed length: 22.8 in. (579 mm)
- Neoprene boot material for CV joint protection
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and stake locking type
- ABS tone ring included with 44-tooth toothed ring
Product Details
The TrakMotive AAR CV Axle Shaft line is built for direct-fit driveline replacement in applications that require accurate spline count, joint style, and compressed length. FD-8272 is specified for the front left position on the 2007-2009 Lincoln MKZ and includes ABS-related components for vehicles using a toothed tone ring setup. TrakMotive identifies this axle as a new unit and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing practices. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Repair Uses
- Restores a worn or noisy front left CV axle on a Lincoln MKZ
- Addresses clicking during turns caused by CV joint wear
- Replaces an axle with damaged boots, grease loss, or spline wear
- Corrects vibration or driveline shudder related to axle shaft condition
- Supports ABS-equipped service needs when the tone ring is required
Installation Notes
Verify spline count, axle length, and axle nut specifications before installation. This axle uses a male inboard shaft connection, a spline-style outboard connection, and a hex axle nut with stake locking. ABS axles fit non-ABS applications unless otherwise noted, but the vehicle’s original configuration should always be confirmed before service. Use the listed fitment for 2007-2009 Lincoln MKZ, front left, and compare the removed part to FD-8272 before final assembly.
Quality Assurance
TrakMotive backs this AAR CV Axle Shaft with a limited lifetime warranty. The brand also states ISO 9001:1007 and TS 16949:2009 certified company standards for manufacturing control.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Lincoln | MKZ | Front Left | Updated Design; AAR CV Axle Shaft |
| 2008 | Lincoln | MKZ | Front Left | Updated Design; AAR CV Axle Shaft |
| 2007 | Lincoln | MKZ | Front Left | Updated Design; AAR CV Axle Shaft |
| No rows match your filter. | ||||
