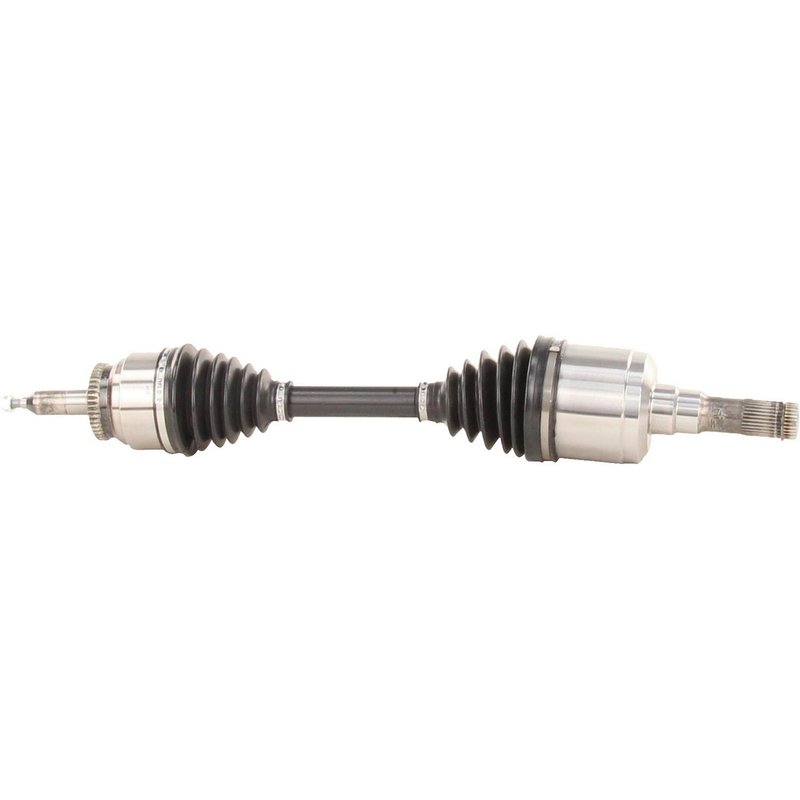

TrakMotive FD-8273 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-8273 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 2/5 |
| Axle Nut Height (mm) | 10.5 |
| Axle Nut Hex Size (in) | 5/9 |
| Axle Nut Hex Size (mm) | 14 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 5/8 |
| Axle Nut Length (mm) | 16 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M10*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 45 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 27.99 |
| Overall Compressed Length (mm) | 711 |
| Product line | CV Axle Shaft |
| Fits | Ford · 5 vehicles |
New CV axle shaft. Fresh replacement part with a neoprene boot for dependable joint protection.
Axle nut included. Comes with a self-locking nut for a more complete install.
ISO certified manufacturing. Built by a company certified to ISO 9001 and TS 16949 standards.
Cross-references Cardone Reman 60-2277, Dayco 71174 and GSP NCV11171 for the same application. See all 12.
CV Axle Shaft for Ford F-150 Raptor
Restore driveline performance with this TrakMotive CV Axle Shaft, part number FD-8273. It is built as a new replacement axle for the front left position on 2010-2014 Ford F-150 Raptor applications, with OE-style fitment details that support direct replacement service.
Key Features
- TrakMotive CV Axle Shaft, part number FD-8273
- Fits 2010-2014 Ford F-150, front left, Raptor
- New axle shaft construction
- Male inboard shaft connection with conventional outboard joint type
- 31 inboard splines and 45 outboard splines
- Neoprene boot material for joint protection
- Includes axle nut with self-locking design
- No ABS tone ring included
- Overall compressed length: 27.99 in. (711 mm)
Detailed Description
TrakMotive FD-8273 is a front left CV axle shaft for the Ford F-150 Raptor platform from 2010 through 2014. This axle is configured with a male inboard connection, a conventional outboard joint, and the specified spline counts to match the original driveline layout. The included axle nut uses an M10 x 1.5 thread, 14 mm hex size, and self-locking design for service replacement.
As part of TrakMotive’s CV Axle Shaft line, FD-8273 is a new replacement component backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing practices. It is also covered by a limited lifetime warranty. This part cross-references Cardone Reman 60-2277 for the same application.
What It Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder under acceleration
- Grease leakage from a damaged axle boot
- Excessive play in the front left driveline assembly
- Loss of smooth power transfer to the wheel
Installation Notes and Tips
Verify front left fitment on the 2010-2014 Ford F-150 Raptor before installation. Confirm spline count, axle length, and axle nut thread size against the original part. Inspect the hub, seals, and surrounding suspension components during replacement, and torque all fasteners to factory specifications.
Quality Assurance
TrakMotive FD-8273 is manufactured by an ISO 9001:1007 and TS 16949:2009 certified company. The axle is a new replacement part and includes a limited lifetime warranty.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2014 | Ford | F-150 | SVT Raptor | Front Left | Raptor; CV Axle Shaft |
| 2013 | Ford | F-150 | SVT Raptor | Front Left | Raptor; CV Axle Shaft |
| 2012 | Ford | F-150 | SVT Raptor | Front Left | Raptor; CV Axle Shaft |
| 2011 | Ford | F-150 | SVT Raptor | Front Left | Raptor; CV Axle Shaft |
| 2010 | Ford | F-150 | SVT Raptor | Front Left | Raptor; CV Axle Shaft |
