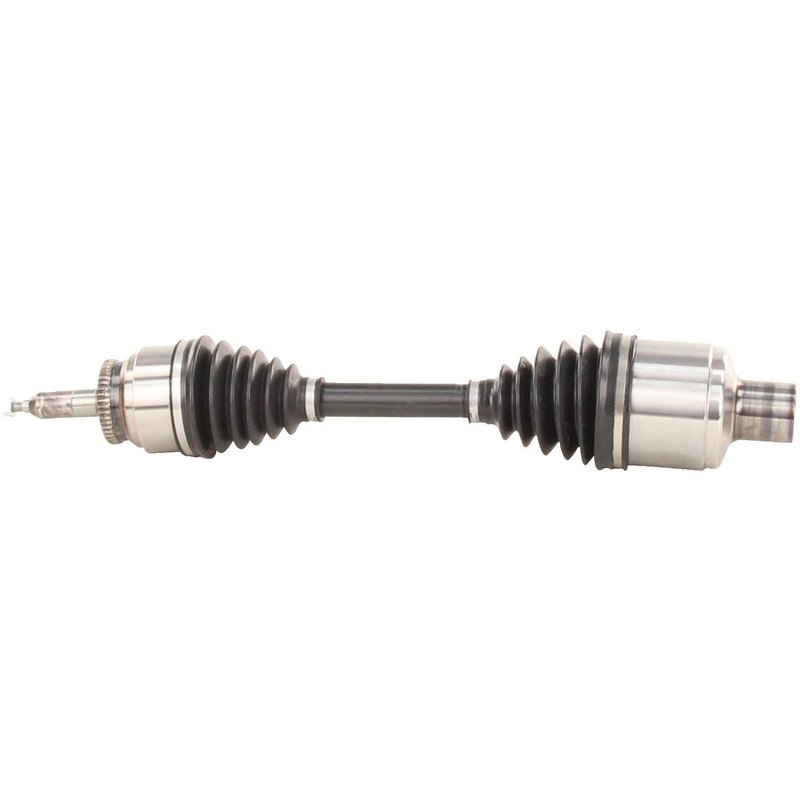

TrakMotive FD-8274 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-8274 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 2/5 |
| Axle Nut Height (mm) | 10.5 |
| Axle Nut Hex Size (in) | 5/9 |
| Axle Nut Hex Size (mm) | 14 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 5/8 |
| Axle Nut Length (mm) | 16 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M10*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31-2 |
| Number Of Outboard Splines | 45 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.04 |
| Overall Compressed Length (mm) | 636 |
| Product line | CV Axle Shaft |
| Fits | Ford · 5 vehicles |
New replacement shaft. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot material. Helps resist wear while keeping the joint protected and flexible.
Includes axle nut. Comes with a self-locking nut for a complete installation.
Cross-references Dayco 71170, TrakMotive FD-8274 and 60-2278 for the same application. See all 12.
Ford F-150 Front Right CV Axle Shaft
TrakMotive FD-8274 is a new CV axle shaft for the front right position on select 2010-2014 Ford F-150 Raptor models. It is built with a neoprene boot, a conventional outboard joint, and a female inboard connection for direct driveline service on the specified application.
Key Features
- Fits 2010-2014 Ford F-150, front right
- TrakMotive CV Axle Shaft, part number FD-8274
- New axle assembly with 25.04 in. overall compressed length
- Neoprene boot material for driveline protection
- Female inboard shaft connection and conventional outboard shaft connection
- Includes axle nut with self-locking design
- No ABS tone ring included
- ISO 9001:1007 and TS 16949:2009 certified manufacturing
Detailed Description
TrakMotive FD-8274 is a replacement CV axle shaft for the Ford F-150 front right application listed above. This axle uses a 31-2 spline inboard configuration and a 45-spline outboard configuration, with a 14 mm axle nut hex size and M10 x 1.5 thread size. The 636 mm compressed length matches the specified driveline geometry for the 2010-2014 Ford F-150 Raptor front right position. This part cross-references Dayco 71170 for the same application.
Common Issues This Part May Address
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Torn boot conditions that expose the joint to contamination
- Excessive driveline play at the front right axle location
- Noise caused by worn splines or joint wear
Installation Notes and Tips
Verify front right fitment against the vehicle’s drivetrain configuration before installation. Confirm spline count, compressed length, and axle nut specifications match the original part. Inspect the hub, seals, and surrounding suspension components during replacement to help prevent repeat driveline noise or premature wear.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part and backs it with a limited lifetime warranty. The company states ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled manufacturing and quality management processes.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2014 | Ford | F-150 | SVT Raptor | Front Right | Raptor; CV Axle Shaft |
| 2013 | Ford | F-150 | SVT Raptor | Front Right | Raptor; CV Axle Shaft |
| 2012 | Ford | F-150 | SVT Raptor | Front Right | Raptor; CV Axle Shaft |
| 2011 | Ford | F-150 | SVT Raptor | Front Right | Raptor; CV Axle Shaft |
| 2010 | Ford | F-150 | SVT Raptor | Front Right | Raptor; CV Axle Shaft |
