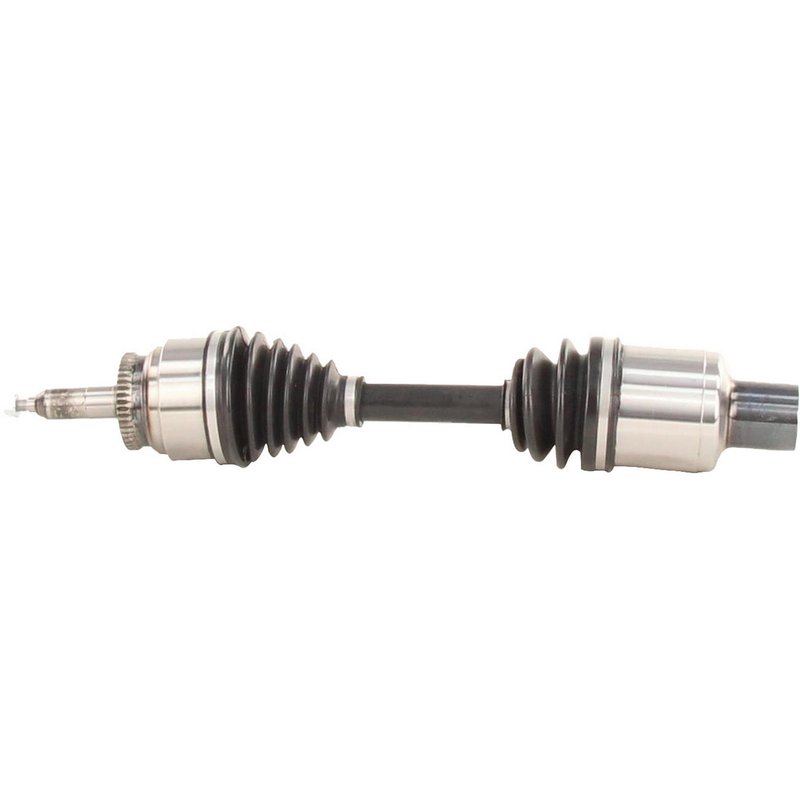

TrakMotive FD-8275 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-8275 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 2/5 |
| Axle Nut Height (mm) | 10.5 |
| Axle Nut Hex Size (in) | 5/9 |
| Axle Nut Hex Size (mm) | 14 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 5/8 |
| Axle Nut Length (mm) | 16 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M10*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 45 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.36 |
| Overall Compressed Length (mm) | 568 |
| Product line | CV Axle Shaft |
| Fits | Ford and Lincoln · 14 vehicles |
New shaft assembly. Fresh replacement for driveline and axle service.
Neoprene boot. Helps protect the joint from dirt and moisture.
Axle nut included. Conveniently supplied for a complete installation.
Cross-references Cardone New 66-2378, TrakMotive FD-8275 and 169275 for the same application. See all 7.
Front Right CV Axle Shaft for Ford and Lincoln
TrakMotive FD-8275 is a new CV axle shaft for the front right position on select Ford and Lincoln applications. It is built with a neoprene boot, a female inboard connection, and a conventional outboard joint for direct driveline service on the listed vehicles.
Key Features
- New CV axle shaft for front right driveline replacement
- Fits 2015-2020 Ford F-150, front right
- Fits 2018-2020 Ford Expedition, front right
- Fits 2021 Ford Expedition, front right
- Fits 2018-2019 Lincoln Navigator, front right
- Fits 2020-2021 Lincoln Navigator, front right
- Neoprene boot material for joint protection
- Female inboard shaft connection with 31 inboard splines
- Conventional outboard shaft connection with 45 outboard splines
- Includes axle nut with self-locking design, M10 x 1.5 thread, 14 mm hex size
- Overall compressed length: 22.36 in (568 mm)
Product Details
TrakMotive FD-8275 is a CV axle shaft engineered for front right service on the Ford F-150, Ford Expedition, and Lincoln Navigator applications listed above. The axle uses a female inboard joint, a conventional outboard joint, and a neoprene boot to support driveline articulation while maintaining a direct-fit replacement profile. This part cross-references Cardone New 66-2378 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Torn boot or grease loss at the axle assembly
- Excessive driveline play or noise from a damaged shaft
- Front right axle wear on high-mileage Ford F-150, Expedition, or Lincoln Navigator models
Installation Notes
Verify front right fitment by year, make, model, and axle configuration before installation. Confirm spline count, axle nut thread size, and overall compressed length against the original part. The axle nut is included; the axle tone ring is not included. ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.
Quality Assurance
TrakMotive identifies this axle as a new replacement part and states that its products are backed by a limited lifetime warranty. The company also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality processes.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2021 | Ford | Expedition | — | Front Right | Outer CV Axle Assembly; CV Axle Shaft |
| 2021 | Lincoln | Navigator | — | Front Right | Outer CV Axle Assembly; CV Axle Shaft |
| 2020 | Ford | Expedition | — | Front Right | CV Axle Shaft |
| 2020 | Ford | F-150 | 4WD | Front Right | CV Axle Shaft |
| 2020 | Lincoln | Navigator | — | Front Right | Outer CV Axle Assembly; CV Axle Shaft |
| 2019 | Ford | Expedition | — | Front Right | CV Axle Shaft |
| 2019 | Ford | F-150 | 4WD | Front Right | CV Axle Shaft |
| 2019 | Lincoln | Navigator | — | Front Right | CV Axle Shaft |
| 2018 | Ford | Expedition | — | Front Right | CV Axle Shaft |
| 2018 | Ford | F-150 | 4WD | Front Right | CV Axle Shaft |
| 2018 | Lincoln | Navigator | — | Front Right | CV Axle Shaft |
| 2017 | Ford | F-150 | 4WD | Front Right | CV Axle Shaft |
| 2016 | Ford | F-150 | 4WD | Front Right | CV Axle Shaft |
| 2015 | Ford | F-150 | 4WD | Front Right | CV Axle Shaft |
