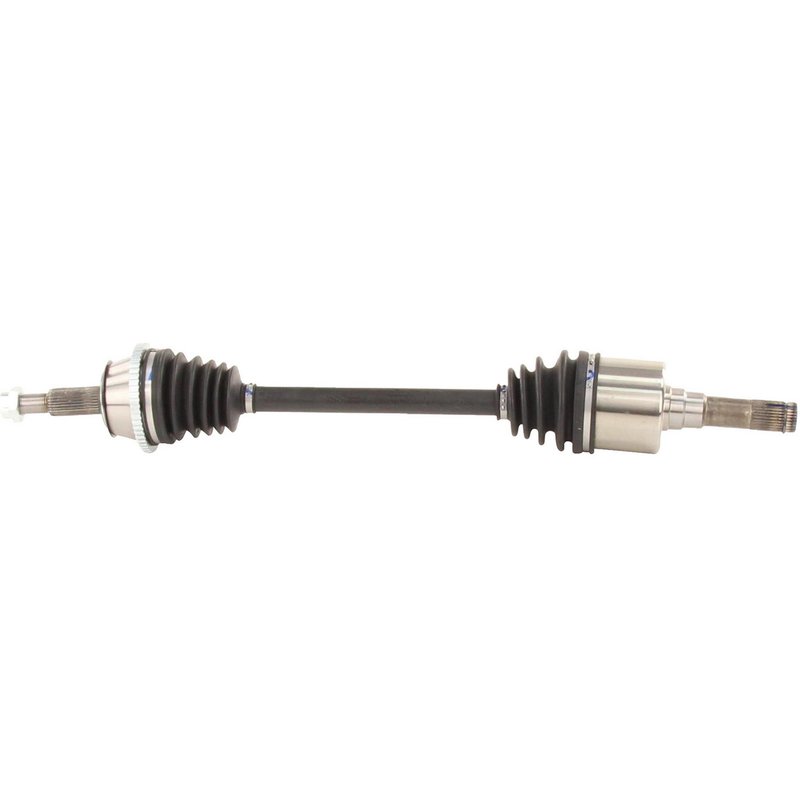

TrakMotive FD-8276 CV Axle Shaft - Rear Right
| Brand | TrakMotive FD-8276 |
|---|---|
| Position | Rear Right |
| Abs Ring Tooth Count | 54 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 33.27 |
| Overall Compressed Length (mm) | 845 |
| Product line | CV Axle Shaft |
| Fits | Ford and Mercury · 15 vehicles |
New axle shaft. Built with neoprene boot material for durable CV joint protection.
ABS tone ring included. Toothed ring with 54 teeth for reliable speed signal compatibility.
Axle nut included. Self-locking hex nut is included for a complete installation.
Cross-references Cardone New 66-2194, Dayco 71058 and TrakMotive FD-8276 for the same application. See all 10.
Rear Right CV Axle Shaft for Ford and Mercury
TrakMotive FD-8276 is a new CV axle shaft for rear right applications on select Ford Explorer, Ford Explorer Sport Trac, and Mercury Mountaineer models. It is built with a neoprene boot, a toothed ABS tone ring, and a self-locking axle nut to support a direct driveline service replacement.
As part of TrakMotive’s CV Axle Shaft line, this assembly is engineered for driveline repair work where precise spline count, compressed length, and ABS ring details matter. The FD-8276 is a fitment-based replacement for rear right service on 2006-2010 Ford Explorer, 2007-2010 Ford Explorer Sport Trac, and 2006-2010 Mercury Mountaineer applications.
Key Features
- New CV axle shaft for rear right driveline service
- Fits 2006-2010 Ford Explorer, rear right
- Fits 2007-2010 Ford Explorer Sport Trac, rear right
- Fits 2006-2010 Mercury Mountaineer, rear right
- 31 inboard splines and 29 outboard splines
- Overall compressed length: 33.27 in. (845 mm)
- Neoprene boot material for axle boot construction
- ABS tone ring included with 54-tooth toothed ring
- Axle nut included: M24x2, 36 mm hex, self-locking
Detailed Description
The TrakMotive FD-8276 CV axle shaft is a direct replacement driveline component for rear right applications on the Ford Explorer, Ford Explorer Sport Trac, and Mercury Mountaineer. It uses a male inboard connection, conventional outboard joint style, and the specified spline counts to match the listed vehicle configurations. The included ABS tone ring and 54-tooth toothed ring support vehicles equipped with ABS-related axle sensing requirements.
This part cross-references Cardone New 66-2194 for the same application. The FD-8276 part number is also used for cataloging and fitment lookup when sourcing a rear right CV axle shaft for these platforms.
Common Repair Uses
- Restoring drivetrain operation after a worn or noisy CV axle
- Replacing a damaged axle boot or contaminated joint assembly
- Addressing vibration, clicking, or binding from the rear axle area
- Correcting ABS-related axle sensor ring wear or damage
- Servicing rear right axle failure on listed Ford and Mercury vehicles
Installation Notes and Tips
Verify rear right fitment by year, make, model, spline count, and compressed length before installation. Confirm axle nut thread size, hex size, and locking style against the original hardware and vehicle requirements. Because ABS axles fit non-ABS applications unless otherwise noted, compare the original axle configuration and tone ring setup before ordering. Professional installation is recommended for proper torque, hub engagement, and driveline alignment.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states that its products are produced by an ISO 9001:1007 and TS 16949:2009 certified company, supporting controlled manufacturing and quality processes.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Ford | Explorer | — | Rear Right | CV Axle Shaft |
| 2010 | Ford | Explorer Sport Trac | 4WD | Rear Right | CV Axle Shaft |
| 2010 | Mercury | Mountaineer | — | Rear Right | CV Axle Shaft |
| 2009 | Ford | Explorer | — | Rear Right | CV Axle Shaft |
| 2009 | Ford | Explorer Sport Trac | AWD | Rear Right | CV Axle Shaft |
| 2009 | Ford | Explorer Sport Trac | 4WD | Rear Right | CV Axle Shaft |
| 2009 | Mercury | Mountaineer | — | Rear Right | CV Axle Shaft |
| 2008 | Ford | Explorer | — | Rear Right | CV Axle Shaft |
| 2008 | Ford | Explorer Sport Trac | 4WD | Rear Right | CV Axle Shaft |
| 2008 | Mercury | Mountaineer | — | Rear Right | CV Axle Shaft |
| 2007 | Ford | Explorer | — | Rear Right | CV Axle Shaft |
| 2007 | Ford | Explorer Sport Trac | 4WD | Rear Right | CV Axle Shaft |
| 2007 | Mercury | Mountaineer | — | Rear Right | CV Axle Shaft |
| 2006 | Ford | Explorer | — | Rear Right | CV Axle Shaft |
| 2006 | Mercury | Mountaineer | — | Rear Right | CV Axle Shaft |
