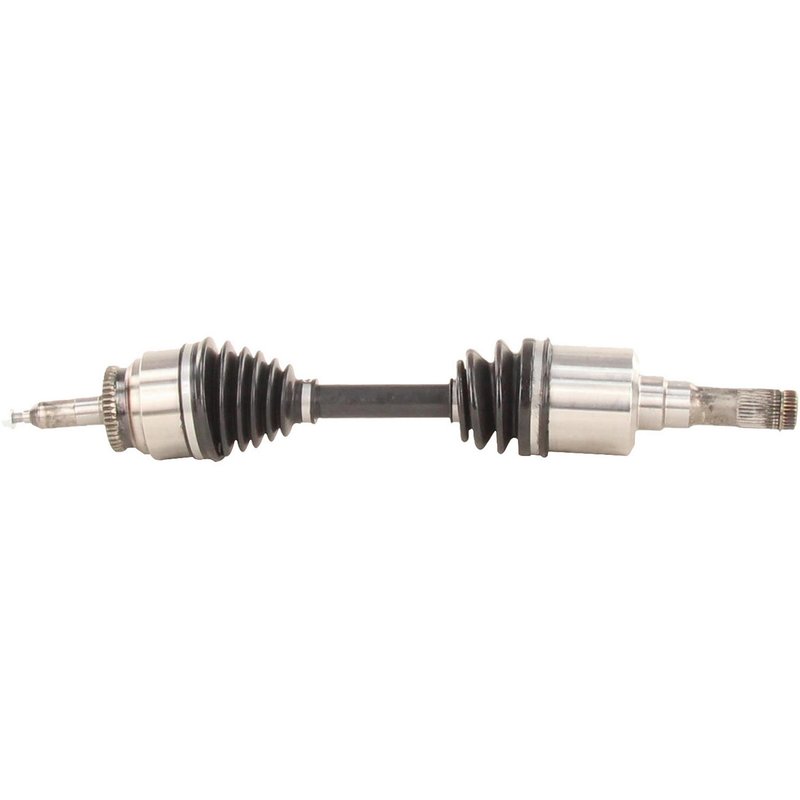

TrakMotive FD-8277 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-8277 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 2/5 |
| Axle Nut Height (mm) | 10.5 |
| Axle Nut Hex Size (in) | 5/9 |
| Axle Nut Hex Size (mm) | 14 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 5/8 |
| Axle Nut Length (mm) | 16 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M10*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 45 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.31 |
| Overall Compressed Length (mm) | 643 |
| Product line | CV Axle Shaft |
| Fits | Ford and Lincoln · 14 vehicles |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot. Helps protect the joint from dirt and moisture.
Axle nut included. Saves time by supplying the matching hardware.
Cross-references Cardone New 66-2379, TrakMotive FD-8277 and 169277 for the same application. See all 7.
Front Left CV Axle Shaft for Ford and Lincoln
TrakMotive FD-8277 is a new front left CV axle shaft for select Ford and Lincoln applications. It is built for vehicles that need a direct driveline replacement with the correct spline counts, shaft length, and axle nut specifications.
Compatible with 2015-2020 Ford F-150, 2018-2020 Ford Expedition, 2021 Ford Expedition, 2018-2019 Lincoln Navigator, and 2020-2021 Lincoln Navigator, front left.
Key Features
- New CV axle shaft for front left driveline service
- Inboard shaft connection style: male
- Outboard shaft connection style: conventional
- 31 inboard splines and 45 outboard splines
- Overall compressed length: 25.31 in. (643 mm)
- Neoprene boot material for joint protection
- Axle nut included with self-lock design
- Axle nut thread size: M10 x 1.5
- Axle nut hex size: 14 mm
- No ABS tone ring included
Product Details
TrakMotive FD-8277 is part of the CV Axle Shaft line, a driveline replacement category focused on restoring axle function with application-specific dimensions and joint configurations. This axle is engineered for front left use on Ford F-150, Ford Expedition, and Lincoln Navigator models listed in the fitment data, including 2015-2020 Ford F-150 and 2018-2021 Ford Expedition and Lincoln Navigator applications. The part number FD-8277 is also referenced by cross numbers such as Cardone New 66-2379 for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn outer CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Excessive play in the front left driveline assembly
- Noise caused by spline or joint wear
Installation Notes
Verify front left fitment by year, make, model, and axle configuration before installation. Confirm axle nut thread size, hex size, and overall compressed length against the removed part. Because this axle does not include an ABS tone ring, it is intended for non-ABS applications unless otherwise noted in the vehicle listing. Use the correct torque procedure and inspect related hub, bearing, and suspension components during replacement.
Quality Assurance
TrakMotive states that this axle is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices for this CV axle shaft.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2021 | Ford | Expedition | — | Front Left | Outer CV Axle Assembly; CV Axle Shaft |
| 2021 | Lincoln | Navigator | — | Front Left | Outer CV Axle Assembly; CV Axle Shaft |
| 2020 | Ford | Expedition | — | Front Left | CV Axle Shaft |
| 2020 | Ford | F-150 | 4WD | Front Left | CV Axle Shaft |
| 2020 | Lincoln | Navigator | — | Front Left | Outer CV Axle Assembly; CV Axle Shaft |
| 2019 | Ford | Expedition | — | Front Left | CV Axle Shaft |
| 2019 | Ford | F-150 | 4WD | Front Left | CV Axle Shaft |
| 2019 | Lincoln | Navigator | — | Front Left | CV Axle Shaft |
| 2018 | Ford | Expedition | — | Front Left | CV Axle Shaft |
| 2018 | Ford | F-150 | 4WD | Front Left | CV Axle Shaft |
| 2018 | Lincoln | Navigator | — | Front Left | CV Axle Shaft |
| 2017 | Ford | F-150 | 4WD | Front Left | CV Axle Shaft |
| 2016 | Ford | F-150 | 4WD | Front Left | CV Axle Shaft |
| 2015 | Ford | F-150 | 4WD | Front Left | CV Axle Shaft |
