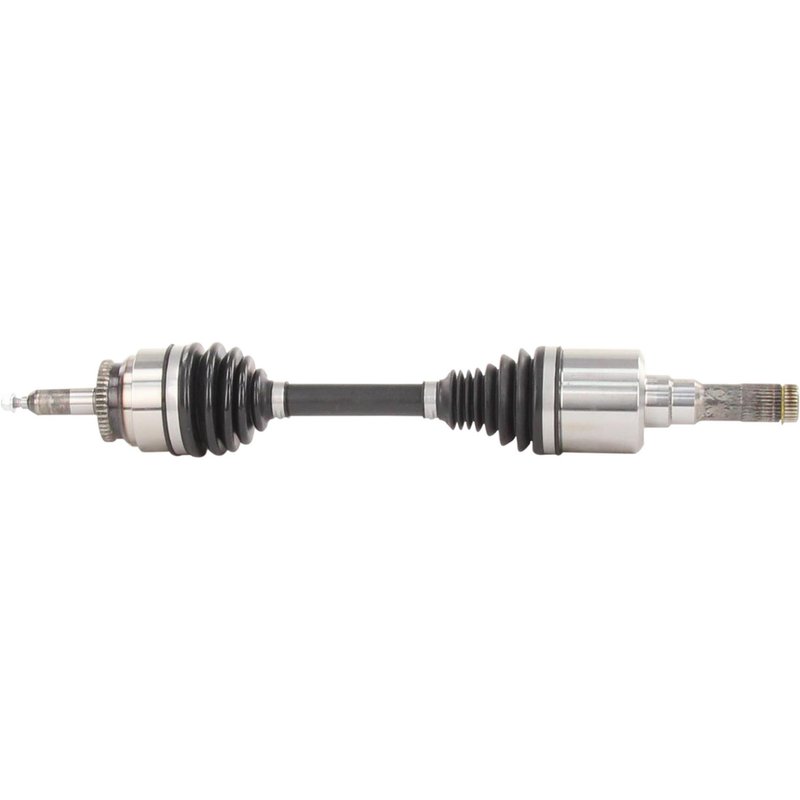

TrakMotive FD-8277HDX CV Axle Shaft - Front Left
| Brand | TrakMotive FD-8277HDX |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 2/5 |
| Axle Nut Height (mm) | 10.5 |
| Axle Nut Hex Size (in) | 5/9 |
| Axle Nut Hex Size (mm) | 14 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 5/8 |
| Axle Nut Length (mm) | 16 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M10*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 45 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.31 |
| Overall Compressed Length (mm) | 643 |
| Product line | Extreme Climate CV Axle Shaft |
| Fits | Ford and Lincoln · 14 vehicles |
Extreme climate design. Premium grease and TPE boots help maintain OE performance in severe temperatures.
New CV axle shaft. A direct replacement for worn driveline components.
Axle nut included. Self-locking hardware is ready for installation.
Cross-references Cardone New 66-2379HD, TrakMotive FD-8277HDX and NCV11059XD for the same application. See all 4.
Extreme Climate CV Axle Shaft for Ford and Lincoln
TrakMotive FD-8277HDX is a new front left CV axle shaft built for select Ford and Lincoln applications that need consistent driveline performance in severe temperature swings. It is engineered with premium 7023B grease and TPE boots to help maintain OE-level operation in extreme heat and cold.
Compatible With 2015-2020 Ford F-150 front left, 2018-2021 Ford Expedition front left, and 2018-2021 Lincoln Navigator front left. This part cross-references Cardone New 66-2379HD for the same application.
Key Features
- Brand: TrakMotive Extreme Climate CV Axle Shaft
- Part number: FD-8277HDX
- New CV axle shaft for front left applications
- Premium 7023B grease formulated for extreme temperature service
- TPE boot construction engineered to retain OE performance at +/- 50°C
- Male inboard shaft connection with conventional outboard joint type
- Includes axle nut with self-locking design
- Boot material: neoprene
- Overall compressed length: 25.31 in. (643 mm)
- Inboard splines: 31; outboard splines: 45
Product Details
The TrakMotive FD-8277HDX is part of the Extreme Climate CV Axle Shaft line, which focuses on driveline service in demanding temperature conditions. For Ford F-150, Ford Expedition, and Lincoln Navigator front left fitments, this axle shaft uses a male inboard connection, a conventional outboard joint, and a 31-spline inboard with 45-spline outboard configuration. The included axle nut uses an M10 x 1.5 thread, 14 mm hex size, and self-locking design.
Built as a new replacement assembly, FD-8277HDX is intended for drivers replacing a worn or damaged front left CV axle on 2015-2020 Ford F-150, 2018-2021 Ford Expedition, or 2018-2021 Lincoln Navigator models. The Extreme Climate product line is centered on grease and boot materials selected to help the axle maintain OE-style function across wide temperature changes.
Common Problems This Part Can Address
- Clicking or popping from a worn front left CV joint
- Vibration during acceleration caused by axle wear
- Torn or deteriorated axle boot material
- Grease leakage from a damaged CV boot
- Loss of smooth power transfer through the front driveline
Installation Notes and Tips
Verify front left fitment by year, make, model, and spline configuration before installation. Inspect the hub, seals, and surrounding suspension components for wear before fitting the new axle shaft. Use the included axle nut and follow the vehicle service procedure for torque and final tightening.
Quality Assurance
TrakMotive designs the Extreme Climate CV Axle Shaft line to maintain OE performance in severe temperature conditions using premium grease and temperature-resistant boot materials. FD-8277HDX is a new replacement part built for direct service on the listed Ford and Lincoln applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2021 | Ford | Expedition | — | Front Left | Outer CV Axle Assembly; Extreme Climate CV Axle Shaft |
| 2021 | Lincoln | Navigator | — | Front Left | Outer CV Axle Assembly; Extreme Climate CV Axle Shaft |
| 2020 | Ford | Expedition | — | Front Left | Outer CV Axle Assembly; Extreme Climate CV Axle Shaft |
| 2020 | Ford | F-150 | 4WD | Front Left | Except Raptor; Extreme Climate CV Axle Shaft |
| 2020 | Lincoln | Navigator | — | Front Left | Outer CV Axle Assembly; Extreme Climate CV Axle Shaft |
| 2019 | Ford | Expedition | — | Front Left | Outer CV Axle Assembly; Extreme Climate CV Axle Shaft |
| 2019 | Ford | F-150 | 4WD | Front Left | Except Raptor; Extreme Climate CV Axle Shaft |
| 2019 | Lincoln | Navigator | — | Front Left | Outer CV Axle Assembly; Extreme Climate CV Axle Shaft |
| 2018 | Ford | Expedition | — | Front Left | Outer CV Axle Assembly; Extreme Climate CV Axle Shaft |
| 2018 | Ford | F-150 | 4WD | Front Left | Except Raptor; Extreme Climate CV Axle Shaft |
| 2018 | Lincoln | Navigator | — | Front Left | Outer CV Axle Assembly; Extreme Climate CV Axle Shaft |
| 2017 | Ford | F-150 | 4WD | Front Left | Except Raptor; Extreme Climate CV Axle Shaft |
| 2016 | Ford | F-150 | 4WD | Front Left | Except Raptor; Extreme Climate CV Axle Shaft |
| 2015 | Ford | F-150 | 4WD | Front Left | Except Raptor; Extreme Climate CV Axle Shaft |
