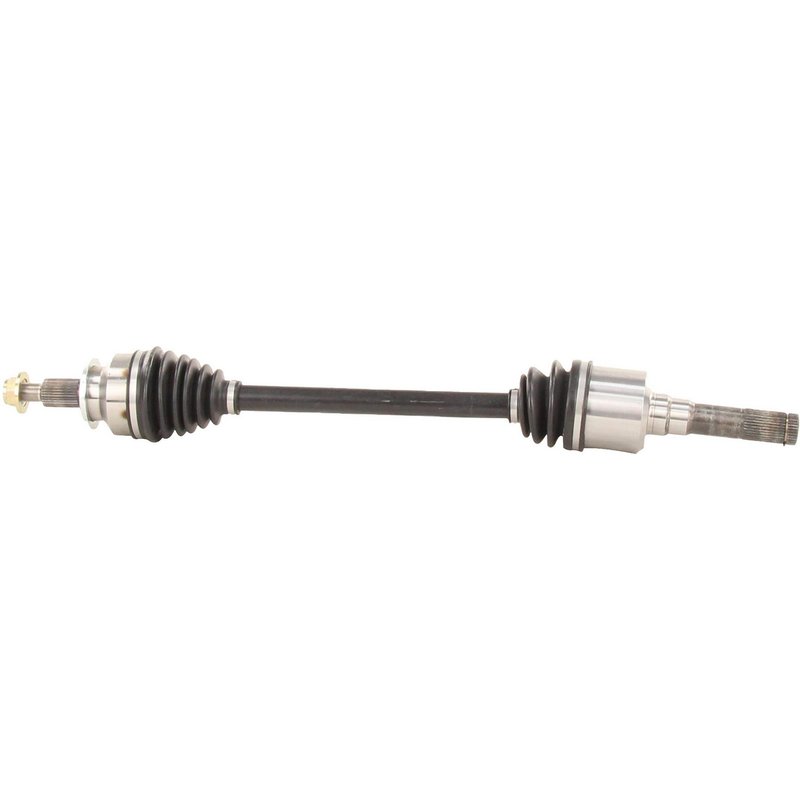

TrakMotive FD-8280 CV Axle Shaft - Rear Left

Rear Left CV Axle Shaft for Mustang

TrakMotive FD-8280 is a new rear left CV axle shaft for select Ford Mustang applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint to match the listed driveline configuration.

Fits 2015-2018 Ford Mustang, rear left. Fits 2019-2023 Ford Mustang, rear left. This part cross-references Ford and aftermarket numbers such as FR3Z4K139B and NCV11194 for the same application.

Key Features

• Part number FD-8280
• Rear left CV axle shaft for Ford Mustang driveline service
• New construction, not remanufactured
• Neoprene boot material for joint protection
• Male inboard shaft connection with 34 inboard splines
• 32 outboard splines with spline-style outboard shaft connection
• Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and self-locking design
• Overall compressed length: 33.6 in. (853.5 mm)
• ABS tone ring not included

Product Details

TrakMotive FD-8280 is a CV axle shaft for the rear left position on 2015-2023 Ford Mustang models listed in the fitment data. The axle uses a male inboard joint, a conventional outboard joint, and a neoprene boot to support driveline articulation while maintaining a direct-fit replacement profile. The included axle nut is specified with a hex head, M22 x 1.5 thread, 32 mm hex size, and self-locking design. TrakMotive identifies this CV axle shaft as part of its CV Axle Shaft line and notes ISO 9001:1007 and TS 16949:2009 certification for its manufacturing system.

Common Repair Uses

• Rear axle vibration or clicking from a worn CV joint
• Boot damage that has allowed grease loss or contamination
• Axle shaft wear affecting rear driveline smoothness
• Noise during acceleration or load transfer in Mustang rear suspension service
• Replacement after axle spline or joint wear on the rear left side

Installation Notes and Quality Assurance

Verify rear left fitment against the vehicle year and drivetrain configuration before installation. Confirm spline count, axle length, and axle nut thread size during service to ensure proper seating and torque procedure. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring. TrakMotive backs this part with a limited lifetime warranty.
