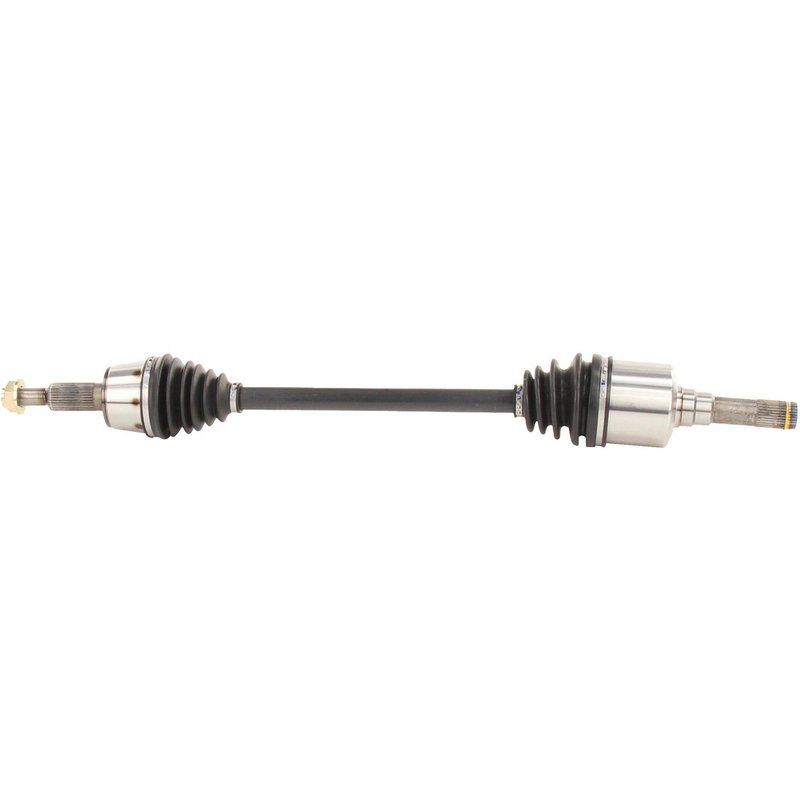

TrakMotive FD-8285 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft FD-8285 for Ford Expedition

The TrakMotive CV Axle Shaft FD-8285 is designed specifically for Ford Expedition models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Ford Expedition vehicles
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced joint protection
• Overall compressed length of 36.14 inches (918 mm)
• 31 inboard splines and 33 outboard splines for secure shaft connection

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components engineered for precise fit and function. The FD-8285 model features a conventional outboard joint and a male inboard joint type, designed to meet the specific requirements of Ford Expedition driveline systems. This line emphasizes durability with neoprene boots and includes all necessary hardware such as a self-locking axle nut to ensure secure installation.

Technical Specifications and Features

The FD-8285 CV axle shaft includes a hex head axle nut measuring 1 2/5 inches (35.5 mm) across flats, with a height of 1 inch (23 mm) and a length of 1 3/5 inches (41 mm). The axle nut thread size is M24*2, and it features a self-locking mechanism to maintain secure fastening under driving conditions. The neoprene boot material protects the joints from contaminants and wear, extending the service life of the axle shaft. The inboard shaft connection style is male with 31 splines, while the outboard connection is conventional with 33 splines, ensuring compatibility with the Ford Expedition's driveline components.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Ford Expedition
• Elimination of clicking or popping noises during turns
• Resolution of vibration issues related to axle shaft wear
• Repair of torn or leaking CV boots to prevent joint damage
• Restoration of driveline integrity after axle shaft failure

Installation Notes and Tips

When installing the TrakMotive FD-8285 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications to engage the self-locking feature properly. Inspect the mating surfaces and splines for cleanliness and damage before assembly. The neoprene boot should be checked for proper seating to prevent contamination. This part is designed for direct replacement on compatible Ford Expedition models, simplifying installation without modification.

Quality Assurance and Warranty Information

The TrakMotive CV Axle Shaft FD-8285 is a new, not remanufactured, component built to meet OEM standards. It includes a self-locking axle nut and durable neoprene boots to ensure long-lasting performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable operation in Ford Expedition vehicles.
