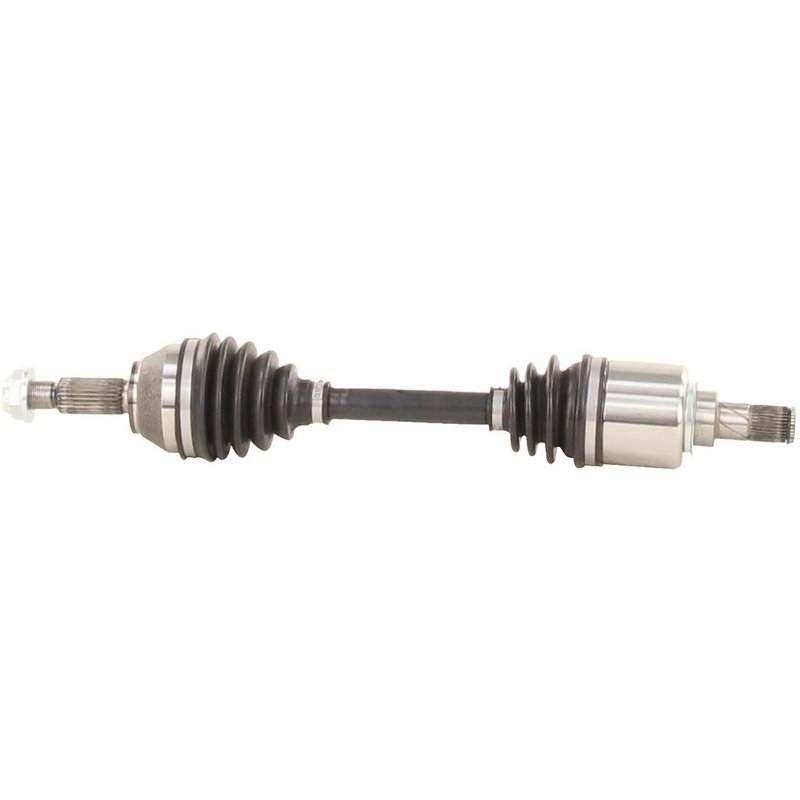

TrakMotive FD-8290 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-8290 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 21.89 |
| Overall Compressed Length (mm) | 556 |
| Product line | CV Axle Shaft |
| Fits | Ford · 7 vehicles |
New CV axle shaft. Fresh replacement part for restoring driveline performance.
Neoprene boot material. Helps protect the joint from wear and contamination.
Axle nut included. Conveniently supplied with a self-locking hex nut.
Cross-references TrakMotive FD-8290, 60-2273 and 66-2273 for the same application. See all 8.
CV Axle Shaft for Ford Fiesta Front Left
TrakMotive FD-8290 is a new CV axle shaft for front left applications on select Ford Fiesta models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the listed vehicles.
Key Features
- Fits 2011-2013 Ford Fiesta, front left
- Fits 2014-2015 Ford Fiesta, front left, thru 3/16/15
- Fits 2018-2019 Ford Fiesta, front left
- New CV axle shaft from TrakMotive
- Neoprene boot material for driveline protection
- Male inboard shaft connection with 34 inboard splines
- Conventional outboard shaft connection with 25 outboard splines
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and self-locking design
- No ABS tone ring included
- Overall compressed length: 21.89 in (556 mm)
Detailed Description
TrakMotive FD-8290 is a CV axle shaft for Ford Fiesta front left service, covering 2011-2013, 2014-2015 through 3/16/15, and 2018-2019 model years. This axle uses a male inboard joint, a conventional outboard joint, and a neoprene boot to support driveline operation in the specified applications. The included axle nut features a hex head, 32 mm hex size, M22 x 1.5 thread, and self-locking design. This part cross-references OE-style numbers such as AE8Z3B437B and D1BZ3B437A for the same application. TrakMotive FD-8290 is part of the CV Axle Shaft line, backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Noise from a worn front left driveline assembly
- Restoring proper axle engagement on Ford Fiesta front left applications
Installation Notes
Verify front left fitment against the vehicle build date before installation, especially for 2014-2015 Ford Fiesta models built through 3/16/15. Confirm spline count, axle nut thread size, and ABS configuration before assembly. The axle nut is included; no ABS tone ring is included.
Quality Assurance
TrakMotive FD-8290 is a new replacement CV axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. It is covered by a limited lifetime warranty.
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2019 | Ford | Fiesta | — | Automatic Dual Clutch | 1.6L | L4 | Front Left | CV Axle Shaft |
| 2018 | Ford | Fiesta | Hatchback | Automatic Dual Clutch | 1.6L | L4 | Front Left | CV Axle Shaft |
| 2015 | Ford | Fiesta | — | Automatic Dual Clutch | 1.6L | L4 | Front Left | Thru 3/16/15; CV Axle Shaft |
| 2014 | Ford | Fiesta | — | Automatic | — | — | Front Left | Thru 3/16/15; CV Axle Shaft |
| 2013 | Ford | Fiesta | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2012 | Ford | Fiesta | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2011 | Ford | Fiesta | — | Automatic | — | — | Front Left | CV Axle Shaft |
