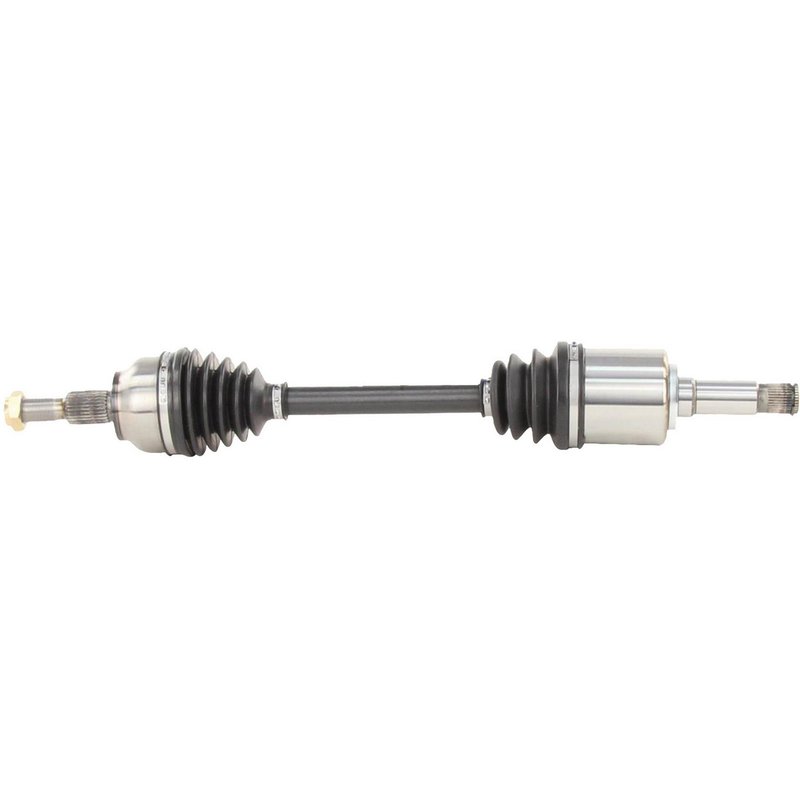

TrakMotive FD-8291 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-8291 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.35 |
| Overall Compressed Length (mm) | 644 |
| Product line | CV Axle Shaft |
| Fits | Ford · 6 vehicles |
New CV axle shaft. Built as a direct driveline replacement for dependable power transfer.
Neoprene boot. Helps protect the joint from dirt and moisture.
Included axle nut. Comes with a self-locking nut for easier installation.
Cross-references TrakMotive FD-8291, 169291 and FV6Z3B437A for the same application. See all 4.
Front Left CV Axle Shaft for Ford C-Max
Restore smooth power transfer and dependable front-end driveline performance with the TrakMotive FD-8291 CV axle shaft. This new front left axle is built for 2013-2018 Ford C-Max applications and includes the axle nut for a direct replacement on the specified fitment.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built to meet consistent manufacturing standards. The FD-8291 is produced by an ISO 9001:1007 and TS 16949:2009 certified company and is backed by a limited lifetime warranty.
- Fits 2013-2018 Ford C-Max, front left
- New CV axle shaft for driveline repair and replacement
- Neoprene boot material for joint protection
- Male inboard shaft connection style with 35 inboard splines
- Conventional outboard joint type with 27 outboard splines
- Axle nut included; hex head, self-locking, M22 x 1.5 thread
- Overall compressed length: 25.35 in. (644 mm)
- No ABS tone ring included
The TrakMotive FD-8291 is a direct-fit CV axle shaft for the front left side of the Ford C-Max. It is engineered with a male inboard joint, spline-style outboard connection, and the specified compressed length to match the listed application. This part cross-references Ford OE and aftermarket numbers such as FV6Z3B437A and NCV11161 for the same application.
Common Problems This Part Can Help Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from a damaged axle shaft
- Torn CV boot conditions that can lead to grease loss and joint wear
- Front driveline noise caused by excessive axle play or spline wear
- Loss of smooth power delivery to the front left wheel
Installation Notes and Tips
Verify the vehicle is a 2013-2018 Ford C-Max, front left application before installation. Confirm axle nut thread size, spline count, and compressed length against the removed part to ensure proper match. Inspect the hub, seals, and surrounding suspension components during replacement, and follow factory torque specifications for the axle nut and related fasteners.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part under ISO 9001:1007 and TS 16949:2009 certified processes. The FD-8291 includes a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2018 | Ford | C-Max | Front Left | CV Axle Shaft |
| 2017 | Ford | C-Max | Front Left | CV Axle Shaft |
| 2016 | Ford | C-Max | Front Left | CV Axle Shaft |
| 2015 | Ford | C-Max | Front Left | CV Axle Shaft |
| 2014 | Ford | C-Max | Front Left | CV Axle Shaft |
| 2013 | Ford | C-Max | Front Left | CV Axle Shaft |
