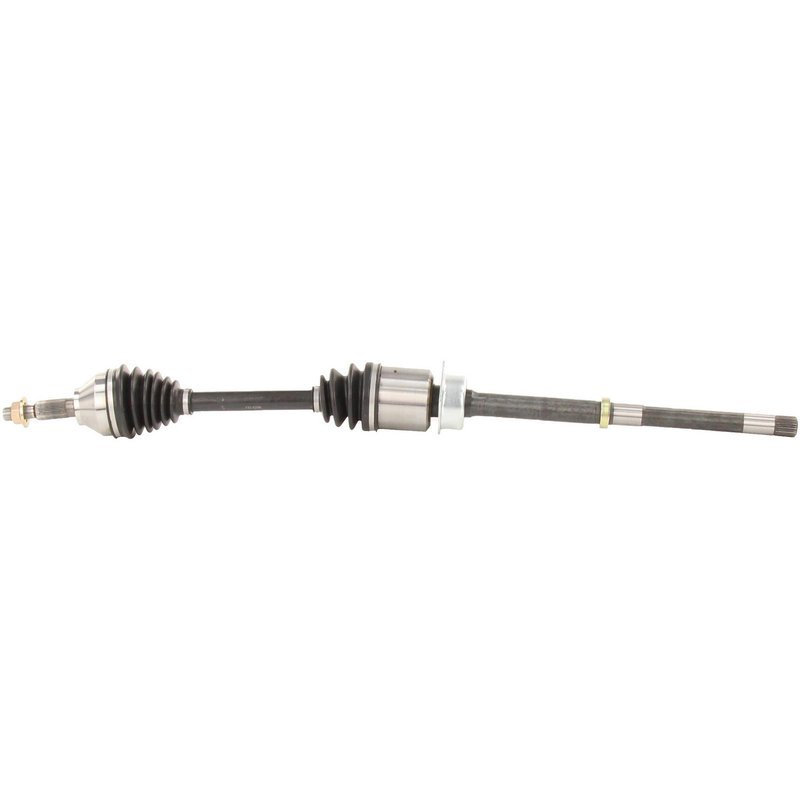

TrakMotive FD-8296 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft FD-8296 for Ford Explorer

The TrakMotive CV Axle Shaft FD-8296 is designed specifically for Ford Explorer models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Ford Explorer vehicles
• New, not remanufactured, for consistent quality
• Includes axle nut with standard locking type
• Neoprene boot material for enhanced joint protection
• Hex head axle nut with 3/4 inch height and 1 1/6 inch hex size
• Overall compressed length of 42.87 inches (1089 mm)
• Inboard joint type: Male with 27 splines
• Outboard joint type: Conventional with 38 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. The FD-8296 model is part of this line, offering a direct replacement CV axle shaft that meets factory specifications. This line emphasizes quality materials such as neoprene boots and includes necessary hardware like the axle nut to facilitate installation and maintain driveline integrity.

Technical Description and Specifications

The FD-8296 CV axle shaft features a neoprene boot designed to resist wear and environmental damage, extending the life of the joint. The inboard joint uses a male connection style with 27 splines, while the outboard joint is conventional with 38 splines, ensuring compatibility with the Ford Explorer's driveline system. The included axle nut has a hex head type, measuring 3/4 inch in height and 1 1/6 inch across the flats, with a thread size of M22*1.5 and a length of 1 1/3 inches (34.6 mm). The overall compressed length of 42.87 inches (1089 mm) matches OEM specifications for proper fitment and function.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Ford Explorer
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by restoring boot integrity with durable neoprene material
• Addresses axle shaft damage from road debris or corrosion

Installation Notes and Tips

When installing the TrakMotive FD-8296 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications using the included hex head nut. Verify the male inboard joint and conventional outboard joint align correctly with the vehicle’s hub and transmission splines. Inspect the neoprene boot for any damage during installation to maintain joint protection. Proper installation will help avoid premature wear and maintain driveline performance.

Quality Assurance and Warranty

This CV axle shaft is a new component manufactured to meet or exceed OEM standards for fit and function. The inclusion of the axle nut and use of durable materials like neoprene for the boot contribute to long-term reliability. Warranty details are provided by TrakMotive and typically cover defects in materials and workmanship under normal use conditions.
