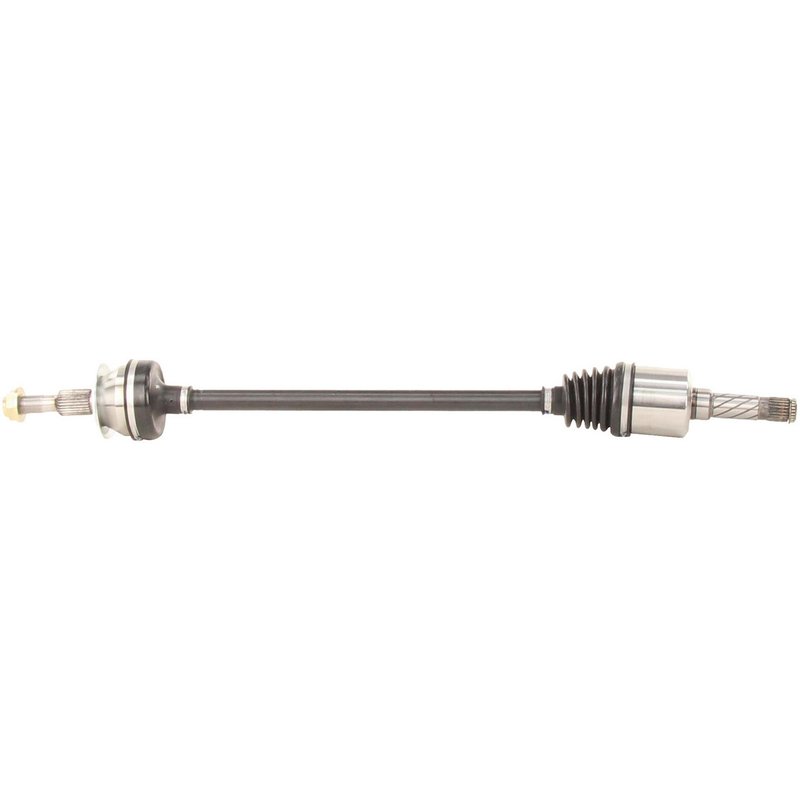

TrakMotive FD-8311 CV Axle Shaft - Rear Left or Rear Right

TrakMotive AAR CV Axle Shaft for Ford Edge

The TrakMotive AAR CV Axle Shaft, part number FD-8311, is a new rear axle assembly for select 2015-2017 Ford Edge applications. It is built with a neoprene boot, male inboard connection, and conventional outboard joint for direct driveline service on the rear left or rear right position.

Key Features

• New CV axle shaft for rear driveline repair
• Fits 2015-2017 Ford Edge, rear right and rear left
• Neoprene boot material for flexible joint protection
• 25 inboard splines and 27 outboard splines
• 33.6 in. overall compressed length
• No ABS tone ring included
• No axle nut included
• ISO 9001:1007 and TS 16949:2009 certified manufacturing

Product Details

The TrakMotive AAR CV Axle Shaft FD-8311 is engineered for rear axle replacement on the Ford Edge, with fitment listed for both rear left and rear right positions on 2015-2017 models. The AAR CV axle shaft line is positioned as a direct replacement solution for driveline service, and this unit uses a male inboard shaft connection with a spline-style outboard connection. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

For buyers searching for a 2015-2017 Ford Edge rear CV axle shaft, FD-8311 provides the key dimensions and spline counts needed for application matching. The updated design note in the fitment data should be verified against the vehicle’s existing axle configuration before installation.

Common Repair Uses

• Clicking or popping noises from a worn CV axle
• Vibration during acceleration from rear driveline wear
• Torn or deteriorated axle boot service replacement
• Loss of smooth power transfer to the rear wheels
• Replacement for a damaged rear axle shaft on Ford Edge models

Installation Notes

Confirm rear position, spline count, and compressed length before installation. This axle does not include an ABS tone ring or axle nut, so reuse or source those components as required by the vehicle setup. ABS axles fit non-ABS applications unless otherwise noted by the manufacturer. Verify the updated design requirement for the specific Ford Edge configuration prior to service.

Quality Assurance

TrakMotive identifies this AAR CV Axle Shaft as a new part built under ISO 9001:1007 and TS 16949:2009 certified processes. The manufacturer also states a limited lifetime warranty for this part.
