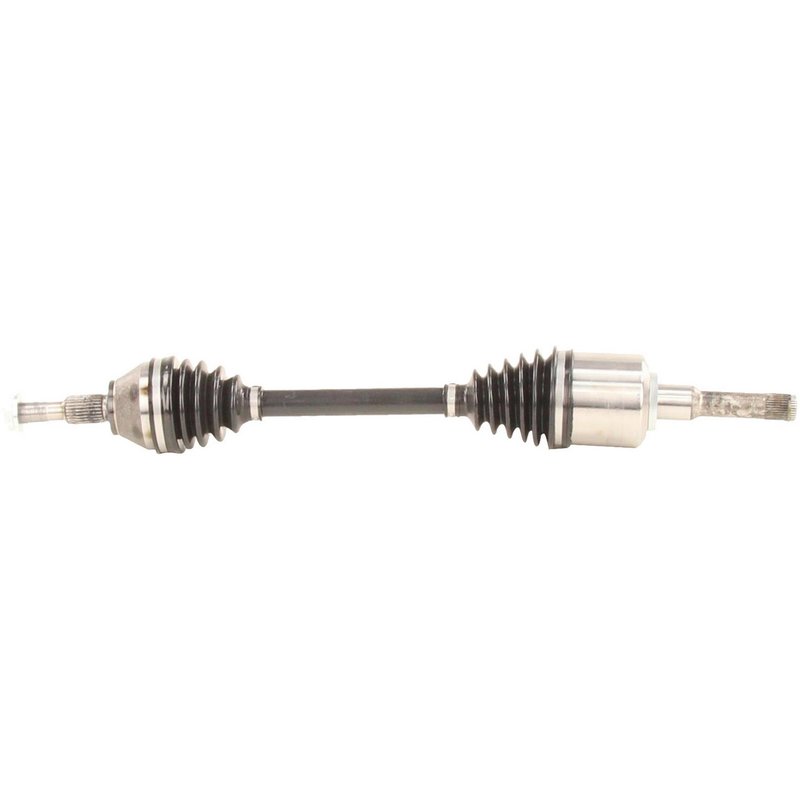

TrakMotive FD-8312 CV Axle Shaft - Front Left
OE Quality 60-Day Returns
TrakMotive
 AAR CV Axle Shaft

TrakMotive FD-8312 CV Axle Shaft - Front Left

Brand TrakMotive FD-8312
Position Front Left
Abs Tone Ring Included No
Axle Nut Included No
Boot Material Neoprene
Inboard Joint Type Male
Inboard Shaft Connection Style Male
New Or Remanufactured New
Number Of Inboard Splines 35
Number Of Outboard Splines 27
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 28.7
Overall Compressed Length (mm) 729
Product line AAR CV Axle Shaft
Fits Ford · 10 vehicles

New axle shaft. Built with neoprene boot material for dependable driveline service.

Spline connection. Conventional outboard joint and male inboard connection.

ISO certified. Made by a company certified to ISO 9001 and TS 16949 standards.

Cross-references TrakMotive FD-8312 and NCV11126 for the same application. See all 2.

$120.00Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $120.00
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

TrakMotive FD-8312 CV Axle Shaft for Ford Edge

The TrakMotive AAR CV Axle Shaft FD-8312 is a new front left axle assembly for select 2015-2018 Ford Edge models. It is built with a neoprene boot and the correct spline counts for the listed application, making it a direct replacement for worn or damaged driveline components.

Key Features

  • Brand: TrakMotive AAR CV Axle Shaft
  • Part number: FD-8312
  • Fits 2015-2018 Ford Edge, front left
  • New construction
  • Neoprene boot material
  • Inboard joint type: male
  • Inboard shaft connection style: male
  • Outboard joint type: conventional
  • Outboard shaft connection style: spline
  • 35 inboard splines and 27 outboard splines
  • Overall compressed length: 28.7 in. (729 mm)
  • No ABS tone ring included
  • Axle nut not included

Product Details

This TrakMotive FD-8312 CV axle shaft is engineered for the front left position on the Ford Edge from 2015 through 2018. The AAR CV Axle Shaft line focuses on application-specific driveline replacement parts, and this axle follows the listed spline count, joint style, and compressed length for the confirmed fitment. It is a direct option for Ford Edge front left CV axle replacement when the original shaft is worn, noisy, or damaged.

This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

Common Problems It Can Address

  • Clicking or popping during turns from a worn CV joint
  • Vibration from a damaged or unbalanced axle shaft
  • Torn or deteriorated axle boot condition
  • Grease leakage from a failed CV axle assembly
  • Driveline noise from front left axle wear

Installation Notes and Tips

Verify the vehicle is a 2015-2018 Ford Edge with front left application before ordering. Confirm spline counts, compressed length, and joint style against the original axle. The axle nut is not included, and no ABS tone ring is included, so reuse or source related components as needed based on the vehicle configuration. Follow factory service procedures for axle removal, hub engagement, and torque specifications.

Quality Assurance

TrakMotive states this axle is produced by an ISO 9001:1007 and TS 16949:2009 certified company. The FD-8312 also carries a limited lifetime warranty.

Related reading

This part fits 10 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelDrive TypeLitersCylindersPositionNotes
2018FordEdge——2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2017FordEdgeTitanium—2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2017FordEdgeSEL—2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2017FordEdgeSE—2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2016FordEdgeTitanium—2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2016FordEdgeSEL—2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2016FordEdgeSE—2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2015FordEdgeTitaniumAWD2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2015FordEdgeSEL—2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
2015FordEdgeSE—2.0LL4Front LeftUpdated Design; AAR CV Axle Shaft
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — FD-8312NCV11126
