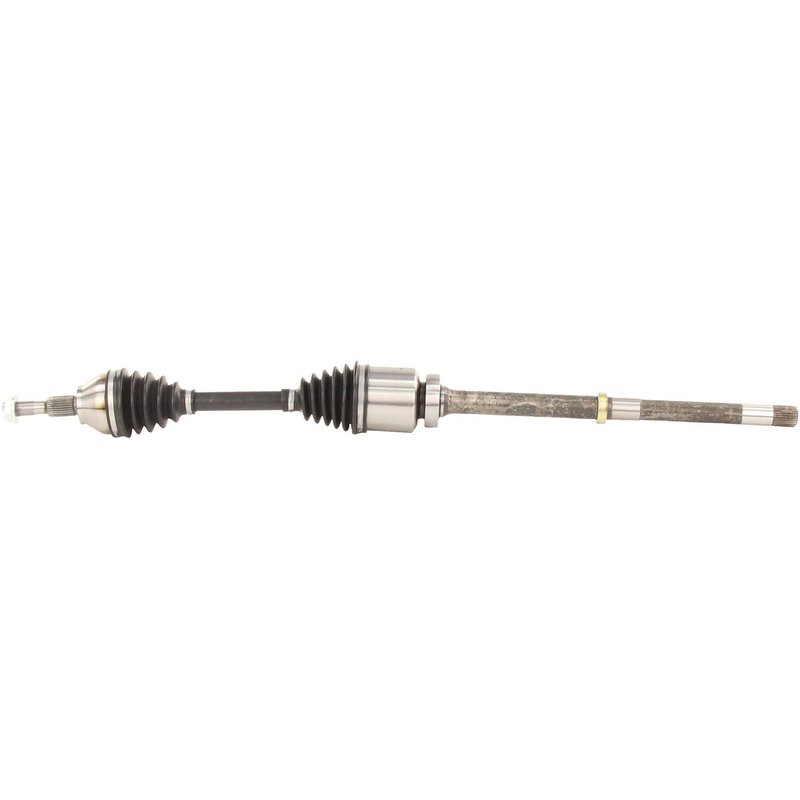

TrakMotive FD-8316 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-8316 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 42.28 |
| Overall Compressed Length (mm) | 1074 |
| Product line | AAR CV Axle Shaft |
| Fits | Ford and Lincoln · 7 vehicles |
New axle shaft. Built as a fresh replacement, not remanufactured.
Neoprene boot. Flexible material helps protect the CV joints.
ISO certified company. Manufactured under ISO 9001 and TS 16949 standards.
Cross-references TrakMotive FD-8316 and NCV11018 for the same application. See all 2.
Front Right CV Axle Shaft for Ford Edge and Lincoln MKX
TrakMotive FD-8316 is a new front right CV axle shaft for select Ford Edge and Lincoln MKX applications. It is built with a neoprene boot, 27 inboard splines, 27 outboard splines, and a male inboard joint and shaft connection for the listed fitments.
Key Features
- New CV axle shaft for driveline repair
- Front right position for the listed Ford and Lincoln applications
- Neoprene boot material for flexible joint protection
- 27-spline inboard and 27-spline outboard configuration
- Male inboard joint type and male inboard shaft connection style
- Conventional outboard joint type with spline shaft connection
- No ABS tone ring included
- No axle nut included
- Overall compressed length: 42.28 in. (1074 mm)
Product Details
This TrakMotive AAR CV Axle Shaft is part of the brand’s AAR line, which focuses on application-specific axle coverage for driveline service. FD-8316 is listed for 2015-2018 Ford Edge front right and 2016-2018 Lincoln MKX front right, including updated-design applications. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Repair Uses
- Replacing a worn or noisy front right CV axle
- Addressing clicking during turns from joint wear
- Correcting vibration caused by axle shaft damage
- Repairing torn boot-related grease loss and contamination
- Restoring driveline operation on Ford Edge and Lincoln MKX models
Installation Notes
Verify spline count, compressed length, and front right placement before installation. This axle does not include an ABS tone ring or axle nut, so confirm whether those components are reused or sourced separately based on the vehicle setup. ABS axles fit non-ABS applications unless otherwise noted.
Quality Assurance
TrakMotive states that this axle is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for this CV axle shaft.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Ford | Edge | AWD | 3.5L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2018 | Lincoln | MKX | AWD | 3.7L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Ford | Edge | AWD | 3.5L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Lincoln | MKX | AWD | 3.7L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Ford | Edge | AWD | 3.5L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Lincoln | MKX | AWD | 3.7L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Ford | Edge | AWD | 3.5L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
