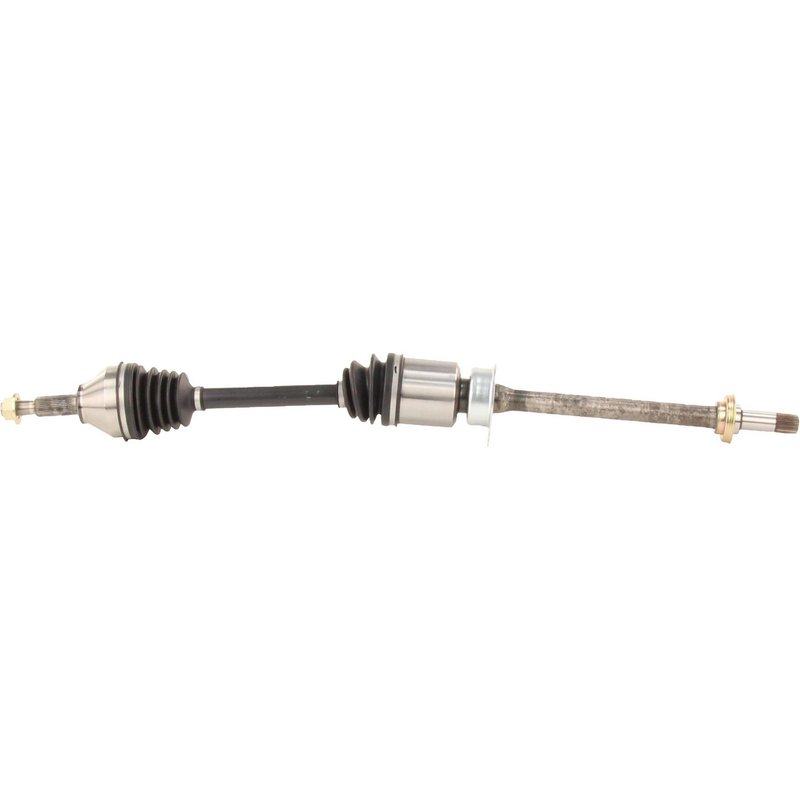

TrakMotive FD-8324 CV Axle Shaft - Front Right

Front Right CV Axle Shaft for Explorer

The TrakMotive AAR CV Axle Shaft FD-8324 is a new front right axle assembly for select Ford Explorer applications. It is built with a neoprene boot, spline connections, and included axle nut details to support a direct replacement on 2012-2019 Ford Explorer front right driveline service.

Key Features

• Fits 2012-2019 Ford Explorer, front right
• TrakMotive AAR CV Axle Shaft, part number FD-8324
• New axle shaft with male inboard joint and conventional outboard joint
• Inboard spline count: 35; outboard spline count: 38
• Neoprene boot material for driveline protection
• Overall compressed length: 40.73 in. (1034.5 mm)
• Axle nut included with M22 x 1.5 thread, 30 mm hex size
• ABS axle note: fits non-ABS applications unless otherwise noted

Product Details

TrakMotive FD-8324 is part of the AAR CV Axle Shaft line, a replacement driveline solution for Ford Explorer front right service. The axle is configured with spline-style shaft connections, a male inboard joint, and a conventional outboard joint to match the specified application. The 40.73-inch compressed length and listed spline counts help identify the correct replacement for the vehicle platform. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

For buyers searching for a Ford Explorer front right CV axle shaft, FD-8324 provides a direct-fit replacement option for 2012-2019 Ford Explorer models. It is a new assembly, not remanufactured, and includes the axle nut specification needed for the listed application.

Common Problems This Part Can Address

• Clicking or popping noises during turns from a worn CV joint
• Vibration during acceleration caused by axle wear or imbalance
• Torn or deteriorated axle boot allowing grease loss and contamination
• Excessive drivetrain play from damaged splines or joint wear
• Front right axle failure on a 2012-2019 Ford Explorer

Installation Notes

Verify front right fitment before installation and confirm the vehicle uses the listed non-ABS application unless otherwise noted. Compare spline counts, compressed length, axle nut thread size, and hex size against the removed part before assembly. Inspect related suspension and hub components for wear, and follow factory torque procedures during installation.

Quality Assurance

TrakMotive identifies this AAR CV Axle Shaft as a new replacement part from an ISO 9001:1007 and TS 16949:2009 certified company. Manufacturer coverage includes a limited lifetime warranty.
