TrakMotive FD-8328 CV Axle Shaft - Front Right
OE Quality 60-Day Returns
TrakMotive
 AAR CV Axle Shaft

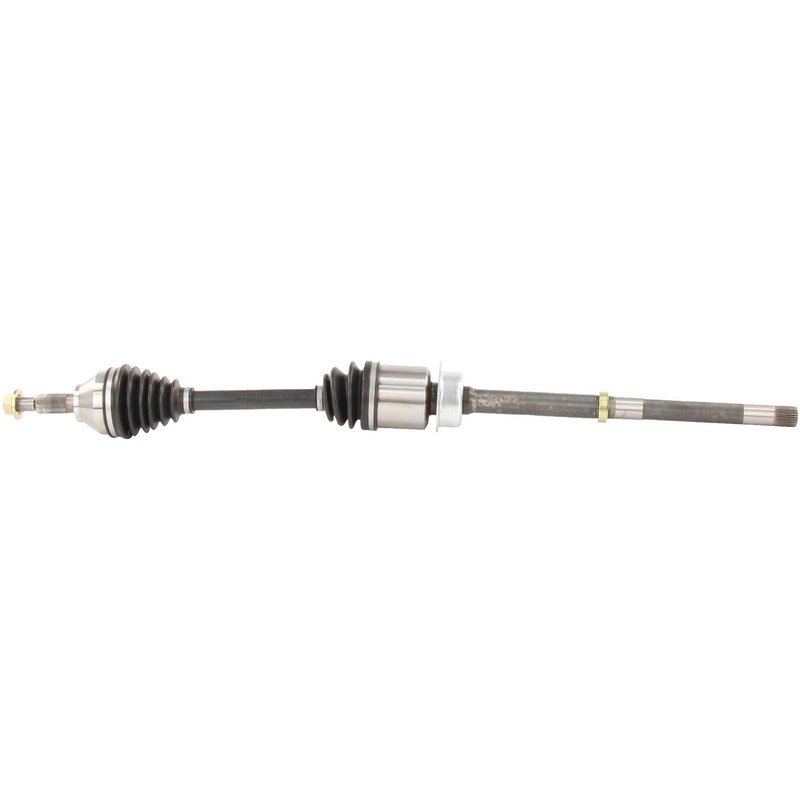

TrakMotive FD-8328 CV Axle Shaft - Front Right

Brand TrakMotive FD-8328
Position Front Right
Axle Nut Head Type Hex
Axle Nut Height (in) 0.75
Axle Nut Height (mm) 19
Axle Nut Hex Size (in) 1.18
Axle Nut Hex Size (mm) 30
Axle Nut Included Yes
Axle Nut Length (in) 1.36
Axle Nut Length (mm) 34.64
Axle Nut Locking Type Standard
Axle Nut Thread Size M22*1.5
Boot Material Neoprene
Inboard Joint Type Male
Inboard Shaft Connection Style Spline
New Or Remanufactured New
Number Of Inboard Splines 27
Number Of Outboard Splines 38
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 42.87
Overall Compressed Length (mm) 1089
Product line AAR CV Axle Shaft
Fits Ford · 12 vehicles

New CV axle shaft. Built as a fresh replacement, not remanufactured.

Neoprene boot material. Helps resist wear while keeping the joint protected.

Spline connection style. Provides a secure, precise drivetrain connection.

Cross-references Cardone New 66-2354, TrakMotive FD-8328 and NCV11047 for the same application. See all 3.

$184.10Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $184.10
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

Front Right CV Axle Shaft for Ford Explorer

The TrakMotive AAR CV Axle Shaft FD-8328 is a new front right axle assembly for select Ford Explorer applications. It is built with a neoprene boot, spline-style shaft connections, and an included axle nut for a direct replacement on the specified vehicles.

TrakMotive’s AAR CV Axle Shaft line focuses on application-specific driveline replacement parts for vehicles that need accurate fitment and dependable joint geometry. FD-8328 is listed for updated-design Ford Explorer front right applications, including tow package configurations where noted.

  • New CV axle shaft for the front right position
  • Neoprene boot material for joint protection
  • Inboard joint type: male
  • Inboard shaft connection style: spline
  • Outboard joint type: conventional
  • Outboard shaft connection style: spline
  • Axle nut included with M22 x 1.5 thread size
  • Axle nut hex size: 30 mm
  • Overall compressed length: 42.87 in. (1089 mm)
  • 27 inboard splines and 38 outboard splines

This Ford Explorer CV axle shaft is built for front right driveline service where the original axle has worn joints, damaged boots, vibration, or clicking during turns. The FD-8328 part number is also referenced in interchange listings for Cardone New 66-2354 and NCV11047. It is a direct-fit replacement for 2013-2019 Ford Explorer front right applications listed below.

Vehicle Fitment

  • Fits 2013-2014 Ford Explorer, front right.
  • Fits 2015 Ford Explorer, front right, updated design.
  • Fits 2016 Ford Explorer, front right, updated design.
  • Fits 2016 Ford Explorer, front right, updated design; w/Tow Package.
  • Fits 2017-2019 Ford Explorer, front right, updated design.
  • Fits 2017 Ford Explorer, front right, updated design; w/Tow Package.
  • Fits 2018 Ford Explorer, front right, updated design; w/Tow Package.
  • Fits 2019 Ford Explorer, front right, updated design; w/Tow Package.

Common Problems This Part Can Address

  • Clicking or popping noises during turns from a worn CV joint
  • Vibration or shudder from a damaged axle shaft
  • Torn or leaking CV boot conditions
  • Axle play caused by spline or joint wear
  • Front right driveline noise on a Ford Explorer with updated design

Installation Notes and Tips

Confirm the vehicle’s front right application, updated design status, and tow package notes before ordering. Verify spline count, axle nut thread size, and overall length against the original part to ensure correct installation on the Ford Explorer. Always inspect related suspension and hub components for wear before replacing the axle.

Quality Assurance

TrakMotive lists this axle as a new part and states that its products are manufactured by an ISO 9001:1007 and TS 16949:2009 certified company. The FD-8328 also carries a limited lifetime warranty.

Related reading

This part fits 12 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypeLitersCylindersPositionNotes
2019FordExplorerAWD3.5LV6Front RightUpdated Design; w/Tow Package; AAR CV Axle Shaft
2019FordExplorerAWD3.5LV6Front RightUpdated Design; AAR CV Axle Shaft
2018FordExplorerAWD3.5LV6Front RightUpdated Design; AAR CV Axle Shaft
2018FordExplorerAWD3.5LV6Front RightUpdated design; w/Tow Package; AAR CV Axle Shaft
2017FordExplorerAWD3.5LV6Front RightUpdated design; W/Tow Package; AAR CV Axle Shaft
2017FordExplorerAWD3.5LV6Front RightUpdated Design; AAR CV Axle Shaft
2017FordExplorer4WD3.5LV6Front RightUpdated Design; AAR CV Axle Shaft
2016FordExplorerAWD3.5LV6Front RightUpdated design; AAR CV Axle Shaft
2016FordExplorerAWD3.5LV6Front RightUpdated Design; w/Tow Package; AAR CV Axle Shaft
2015FordExplorerAWD3.5LV6Front RightUpdated Design; AAR CV Axle Shaft
2014FordExplorerAWD3.5LV6Front RightAAR CV Axle Shaft
2013FordExplorerAWD3.5LV6Front RightAAR CV Axle Shaft
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Cardone New — 66-2354TrakMotive — FD-8328NCV11047
