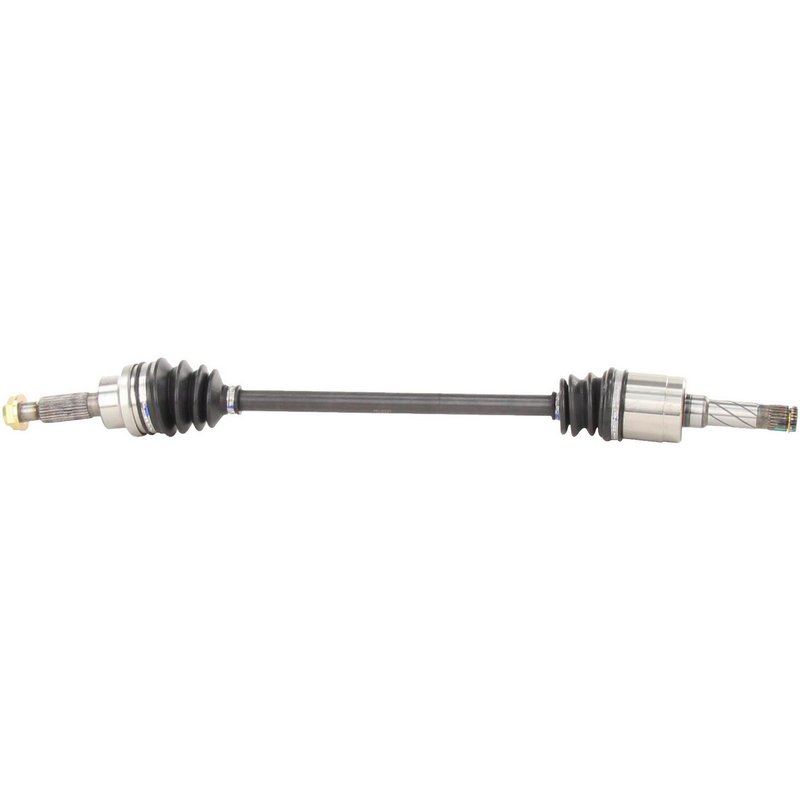

TrakMotive FD-8335 CV Axle Shaft - Rear Left or Rear Right

Reliable CV Axle Shaft for Ford Escape Vehicles

The TrakMotive CV Axle Shaft FD-8335 is engineered to meet the specific driveline needs of Ford Escape models. Designed with precision, this new axle shaft ensures consistent performance and durability for your vehicle's front-wheel drive system.

• Magnetic ABS tone ring with 44 teeth for accurate wheel speed sensing
• Neoprene boot material for enhanced protection against contaminants
• Self-locking hex axle nut (M22*1.5 thread size) included for secure installation
• Inboard and outboard spline shaft connections with 25 and 27 splines respectively
• Overall compressed length of 31.93 inches (811 mm) for exact fitment

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft line focuses on delivering reliable constant velocity components tailored for specific vehicle applications. This product line emphasizes quality materials and precise engineering, such as magnetic ABS tone rings and durable neoprene boots, to maintain driveline integrity and sensor compatibility. The FD-8335 model exemplifies these standards, providing a direct replacement for Ford Escape vehicles requiring dependable CV axle shafts.

Detailed Product Features and Specifications

This CV axle shaft features a magnetic ABS tone ring with 44 teeth, which is included to ensure accurate wheel speed data for the vehicle's anti-lock braking system. The neoprene boot material offers resistance to wear and environmental damage, extending the life of the joint. The axle nut is a self-locking hex type with a 1.25-inch (31.8 mm) hex size and a height of 0.74 inches (18.9 mm), designed to secure the axle firmly in place. Both inboard and outboard joints use spline shaft connections, with 25 splines on the inboard side and 27 on the outboard, ensuring a precise fit and smooth power transfer. The overall compressed length of 31.93 inches (811 mm) matches factory specifications for the Ford Escape.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axle shafts on Ford Escape models
• Restoring proper ABS sensor function with included magnetic tone ring
• Eliminating axle vibration or clicking noises caused by joint wear
• Preventing grease leaks and contamination with durable neoprene boots
• Securing axle assembly with self-locking hex nut to maintain driveline stability

Installation Notes and Tips

Ensure compatibility with your specific Ford Escape model year before installation. The included self-locking hex axle nut requires a 1.25-inch (31.8 mm) socket for proper torque application. Handle the neoprene boot carefully to avoid damage during installation. Verify the spline counts (25 inboard, 27 outboard) match your vehicle’s requirements to ensure a proper fit. The magnetic ABS tone ring is pre-installed, so no additional ABS components are necessary.

Quality Assurance and Warranty Information

The TrakMotive CV Axle Shaft FD-8335 is a new, not remanufactured, component built to meet OEM standards for fit and function. Manufactured with quality materials including a magnetic ABS tone ring and neoprene boot, this axle shaft supports reliable vehicle operation. Warranty details should be confirmed with the product provider, as coverage may vary.
