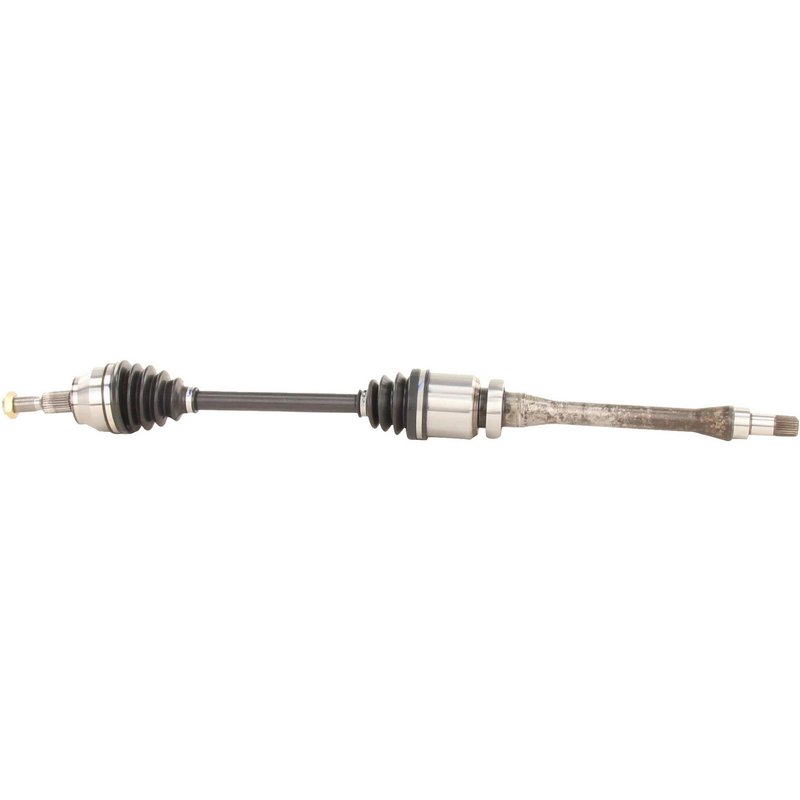

TrakMotive FD-8336 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-8336 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.59 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 38.35 |
| Overall Compressed Length (mm) | 974 |
| Product line | CV Axle Shaft |
| Fits | Ford · 4 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for durable sealing.
Spline connections. Male inboard and conventional outboard joints for secure engagement.
Axle nut included. Self-locking nut comes with the shaft for a complete install.
Cross-references TrakMotive FD-8336, 169336 and BV6Z3B436D for the same application. See all 4.
Front Right CV Axle Shaft for Ford Focus
TrakMotive FD-8336 is a new CV axle shaft for the front right position on select Ford Focus models. It is built with a neoprene boot, spline-style shaft connections, and includes the axle nut for a cleaner replacement process.
Key Features
- New CV axle shaft for driveline and axle service
- Fits 2016-2018 Ford Focus, front right
- Also fits 2015 Ford Focus, front right, VIN E (8th digit)
- Neoprene boot material for CV joint protection
- Male inboard joint with spline connection
- Conventional outboard joint with spline connection
- Includes axle nut with M22 x 1.5 thread, 32 mm hex, self-lock design
- Overall compressed length: 38.35 in. (974 mm)
- ABS tone ring not included
Product Details
This TrakMotive CV axle shaft is engineered for front right Ford Focus applications that require a direct replacement axle assembly. Part number FD-8336 matches the listed fitment for 2016-2018 Ford Focus front right and 2015 Ford Focus front right with VIN E (8th digit). TrakMotive FD-8336 is part of the CV Axle Shaft line and is backed by manufacturing standards from an ISO 9001:1007 and TS 16949:2009 certified company.
This part cross-references OE-style numbers such as BV6Z3B436D and NCV11212 for the same application.
Common Repair Uses
- Replacing a worn or noisy front right CV axle on a Ford Focus
- Addressing vibration during acceleration from a damaged axle shaft
- Correcting clicking or popping sounds from a failing CV joint
- Restoring driveline operation after boot damage or grease loss
- Replacing a bent or worn axle assembly during front suspension service
Installation Notes and Tips
Verify the vehicle’s year, model, and position before ordering. For 2015 Ford Focus, confirm VIN E at the 8th digit, since that fitment is specific to that configuration. Check spline counts, axle length, and axle nut thread size against the original part before installation. The axle nut is included; ABS tone ring is not included.
Quality Assurance
TrakMotive FD-8336 is a new replacement axle shaft from a certified manufacturer. The product is covered by a limited lifetime warranty.
| Year | Make | Model | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2018 | Ford | Focus | Manual | 1.0L | L3 | GAS | Front Right | CV Axle Shaft |
| 2017 | Ford | Focus | Manual | 1.0L | L3 | GAS | Front Right | CV Axle Shaft |
| 2016 | Ford | Focus | Manual | 1.0L | L3 | GAS | Front Right | CV Axle Shaft |
| 2015 | Ford | Focus | — | 1.0L | L3 | GAS | Front Right | VIN E (8th Digit); CV Axle Shaft |
