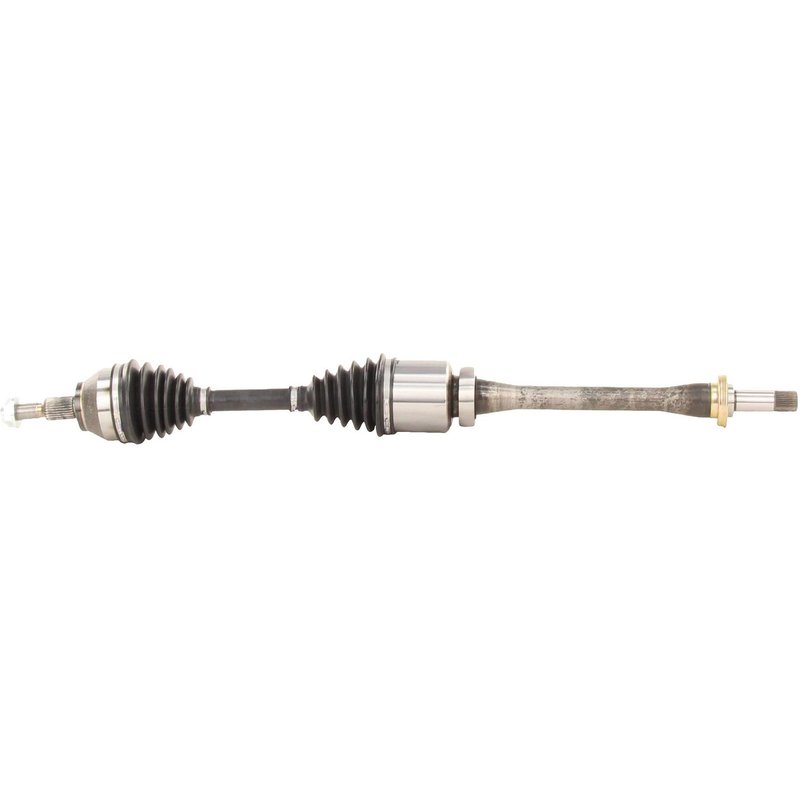

TrakMotive FD-8340 CV Axle Shaft - Front Right

Ford Escape Front Right CV Axle Shaft

The TrakMotive AAR CV Axle Shaft FD-8340 is a new front right axle assembly for select 2013-2018 Ford Escape applications. It is built with a neoprene boot, spline-style shaft connections, and a conventional outboard joint for direct driveline service on the specified vehicle fitment.

Key Features

• Fits 2013-2018 Ford Escape, front right
• TrakMotive AAR CV Axle Shaft, part number FD-8340
• New axle shaft assembly with 35 inboard splines and 27 outboard splines
• Neoprene boot material for driveline protection
• Includes axle nut with M22 x 1.5 thread, 31.8 mm hex size, and self-locking design
• Overall compressed length: 37.6 in (955 mm)
• ABS tone ring not included

Product Details

TrakMotive FD-8340 is an AAR CV axle shaft engineered for the front right position on 2013-2018 Ford Escape models. The assembly uses a male inboard joint, conventional outboard joint, and spline connections at both ends to match the listed application. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

The TrakMotive AAR CV Axle Shaft line is positioned as a direct replacement driveline solution for service work where accurate fitment and OE-style dimensions matter. For Ford Escape front right axle replacement, FD-8340 provides the specified compressed length, spline count, and axle nut configuration needed for the listed vehicles.

Common Problems This Part Can Address

• Clicking or popping during turns from a worn CV joint
• Vibration under acceleration caused by a damaged axle shaft
• Torn or deteriorated axle boot allowing grease loss and contamination
• Excessive driveline play from worn spline or joint interfaces
• Noise from a failing front right CV axle on Ford Escape models

Installation Notes and Tips

Verify front right fitment before installation on 2013-2018 Ford Escape vehicles. Confirm axle nut thread size, hex size, and overall length against the removed part before assembly. The axle nut is included; ABS tone ring is not included. Follow factory service procedures for torque, hub engagement, and final inspection after installation.

Quality Assurance

TrakMotive identifies this AAR CV axle shaft as a new component from an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer also states a limited lifetime warranty for this part.
