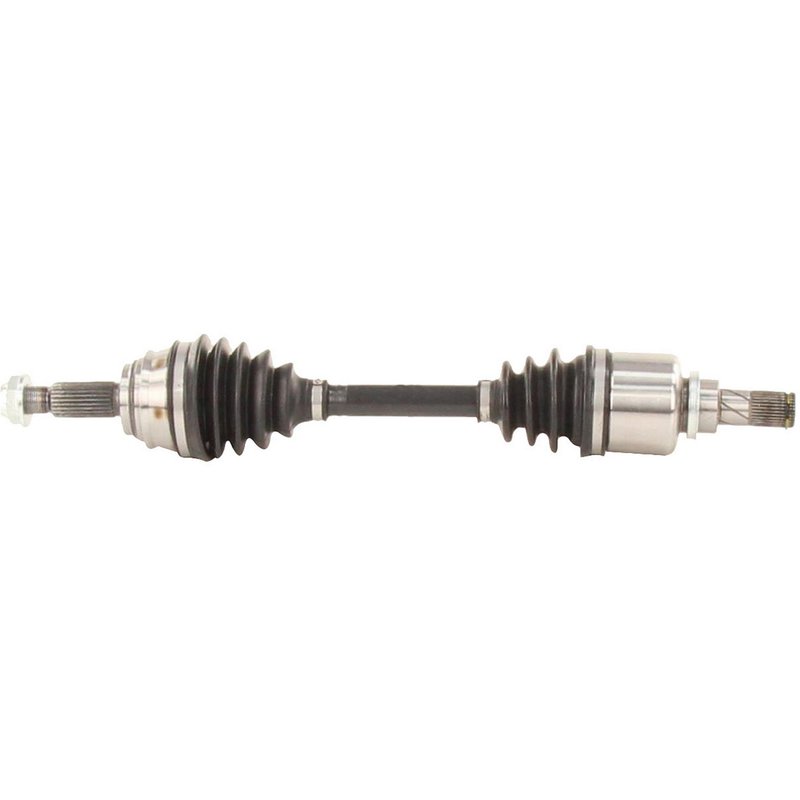

TrakMotive FD-8360 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-8360 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.74 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 22.3 |
| Overall Compressed Length (mm) | 566.5 |
| Product line | CV Axle Shaft |
| Fits | Ford · 4 vehicles |
New CV axle shaft. Built with spline connections and conventional joint design.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Self-locking hardware is ready for installation.
Cross-references TrakMotive FD-8360, D1BZ3B437B and NCV11053 for the same application. See all 3.
CV Axle Shaft for Ford Fiesta Front Left
TrakMotive FD-8360 is a new front left CV axle shaft for select Ford Fiesta applications. It is built with a neoprene boot, spline-style shaft connections, and a self-lock axle nut to support a direct replacement for the original driveline component.
This CV axle shaft fits 2016-2018 Ford Fiesta, front left, and also fits 2015 Ford Fiesta, front left, from 03/17/15. TrakMotive FD-8360 is a practical OE-style replacement for Ford Fiesta front axle service where the original axle has worn, clicked, or developed vibration.
Key Features
- New CV axle shaft for the front left position
- Fits 2016-2018 Ford Fiesta, front left
- Fits 2015 Ford Fiesta, front left, from 03/17/15
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard splines: 34
- Outboard splines: 25
- Neoprene boot material for joint protection
- Axle nut included with M22 x 1.5 thread size
- Overall compressed length: 22.3 in. (566.5 mm)
Product Details
TrakMotive CV Axle Shaft FD-8360 is engineered for the Ford Fiesta front left driveline position with spline connections at both ends and a conventional outboard joint design. The axle nut uses a hex head, self-lock style, and the assembly is supplied new rather than remanufactured. TrakMotive positions this CV axle shaft within its CV Axle Shaft product line for direct-fit driveline replacement work on the Ford Fiesta.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn front CV joint
- Vibration during acceleration from a damaged axle shaft
- Torn boot conditions that expose the joint to contamination
- Excessive play or noise from a failing front left axle assembly
- Driveline issues on Ford Fiesta front axle service
Installation Notes and Tips
Confirm the vehicle build date before ordering, since the 2015 Ford Fiesta application applies from 03/17/15. Verify spline count, axle nut thread size, and front left position before installation. Inspect the hub, seals, and surrounding suspension components for wear so the replacement axle can seat correctly and operate smoothly.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices.
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2018 | Ford | Fiesta | Sedan | Automatic Dual Clutch | 1.6L | L4 | Front Left | CV Axle Shaft |
| 2017 | Ford | Fiesta | — | Automatic Dual Clutch | 1.6L | L4 | Front Left | CV Axle Shaft |
| 2016 | Ford | Fiesta | — | Automatic Dual Clutch | 1.6L | L4 | Front Left | CV Axle Shaft |
| 2015 | Ford | Fiesta | — | Automatic Dual Clutch | 1.6L | L4 | Front Left | From 03/17/15; CV Axle Shaft |
