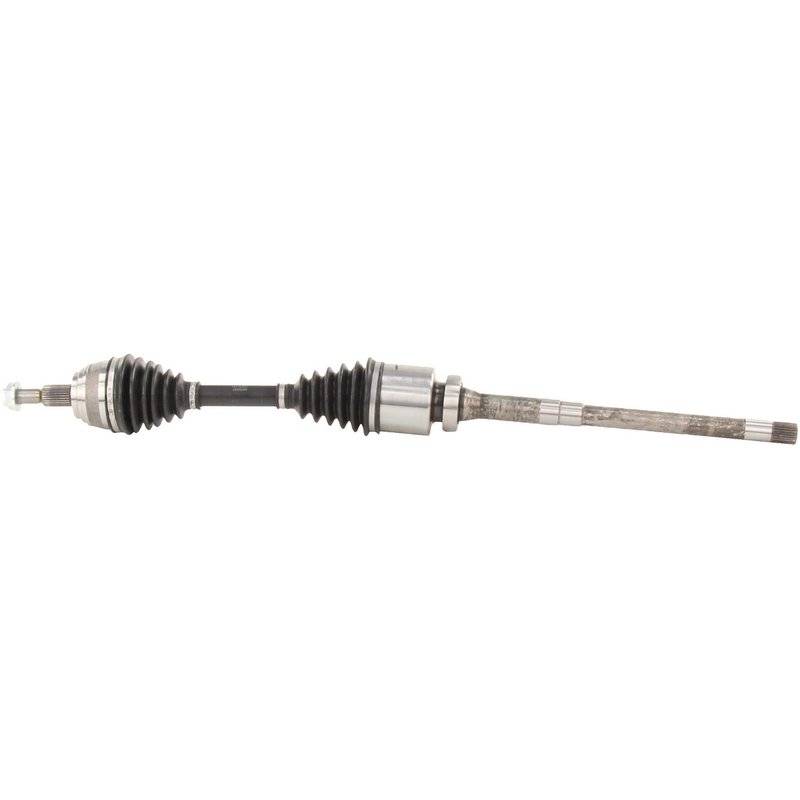

TrakMotive FD-8367 CV Axle Shaft - Front Right

TrakMotive FD-8367 CV Axle Shaft for Ford Focus

The TrakMotive FD-8367 CV axle shaft is a new front right driveline replacement for 2016-2018 Ford Focus models. Built for direct-fit service, this Ford Focus CV axle shaft includes a self-lock axle nut and is engineered with the spline counts and compressed length needed for the listed application.

Key Features

• Fits 2016-2018 Ford Focus, front right
• New CV axle shaft for driveline and axle service
• Inboard joint type: male with spline shaft connection
• Outboard joint type: conventional with spline shaft connection
• Boot material: neoprene
• Axle nut included with hex head and self-lock design
• No ABS tone ring included
• Overall compressed length: 38.44 in. (976.5 mm)
• Inboard splines: 26; outboard splines: 27

Product Details

TrakMotive FD-8367 is a CV axle shaft for the front right position on 2016, 2017, and 2018 Ford Focus models. It is built as a new replacement axle with a neoprene boot, male inboard joint, conventional outboard joint, and spline-style shaft connections for the specified fitment. The axle nut is included and uses an M22 x 1.5 thread with a 31.8 mm hex size. This part cross-references Ford OE numbers G1FZ3B436A and G1FZ3B436E, as well as NCV11217, for the same application. TrakMotive FD-8367 is part of the CV Axle Shaft line and is intended for direct replacement service on the Ford Focus front right axle position.

Common Replacement Reasons

• Clicking or popping during turns from worn CV joints
• Vibration under acceleration from a damaged axle shaft
• Torn boot or grease loss at the CV joint
• Excessive play or noise from a failing front right axle
• Restoring proper driveline operation after axle wear

Installation Notes

Verify the front right position, spline count, axle nut thread size, and compressed length before installation. This axle is listed without an ABS tone ring, and the manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted. Confirm vehicle configuration against the cataloged fitment for 2016-2018 Ford Focus before service. Use proper axle nut torque and follow factory repair procedures during installation.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The company also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality management for this replacement axle shaft.
