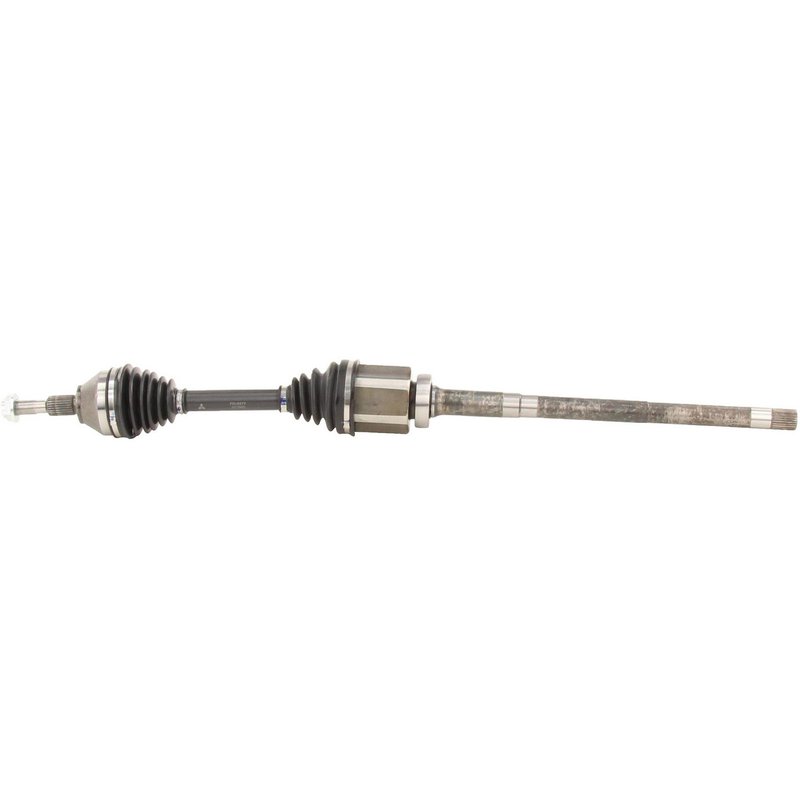

TrakMotive FD-8377 CV Axle Shaft - Front Right

Ford Fusion and Lincoln MKZ CV Axle Shaft

TrakMotive FD-8377 is a new CV axle shaft for front right applications with updated AAR design coverage. It is built for Ford Fusion and Lincoln MKZ fitments that require a direct driveline replacement with spline-matched connections and a supplied axle nut.

Key Features

• New CV axle shaft with AAR CV axle shaft design
• Neoprene boot material for the joint assembly
• 27-spline inboard and 27-spline outboard shaft connections
• Male inboard joint with conventional outboard joint
• Supplied axle nut with self-locking design and M22 x 1.5 thread
• No ABS tone ring included

Detailed Description

This TrakMotive CV axle shaft, part number FD-8377, is engineered for front right driveline service on select Ford Fusion and Lincoln MKZ models. The axle uses spline-style connections at both ends, a neoprene boot, and a 41.02-inch compressed length to match the listed applications. The included axle nut features a hex head, self-locking design, and M22 x 1.5 thread size for proper hardware matching. This part cross-references NCV11239 for the same application.

What It Helps Address

• Clicking or popping during turns from worn CV joints
• Vibration caused by a damaged or out-of-balance axle assembly
• Grease leakage from a torn or deteriorated boot
• Driveline noise from spline or joint wear

Installation Notes and Tips

Fits 2017-2020 Ford Fusion, front right. Fits 2017-2020 Lincoln MKZ, front right. Verify ABS and non-ABS application details before installation, since ABS axles fit non-ABS applications unless otherwise noted. Confirm spline count, compressed length, and axle nut thread size against the removed part before assembly.

Quality Assurance

TrakMotive identifies this as a new part and backs it with a limited lifetime warranty. The company states ISO 9001:1007 and TS 16949:2009 certification for its manufacturing processes.
