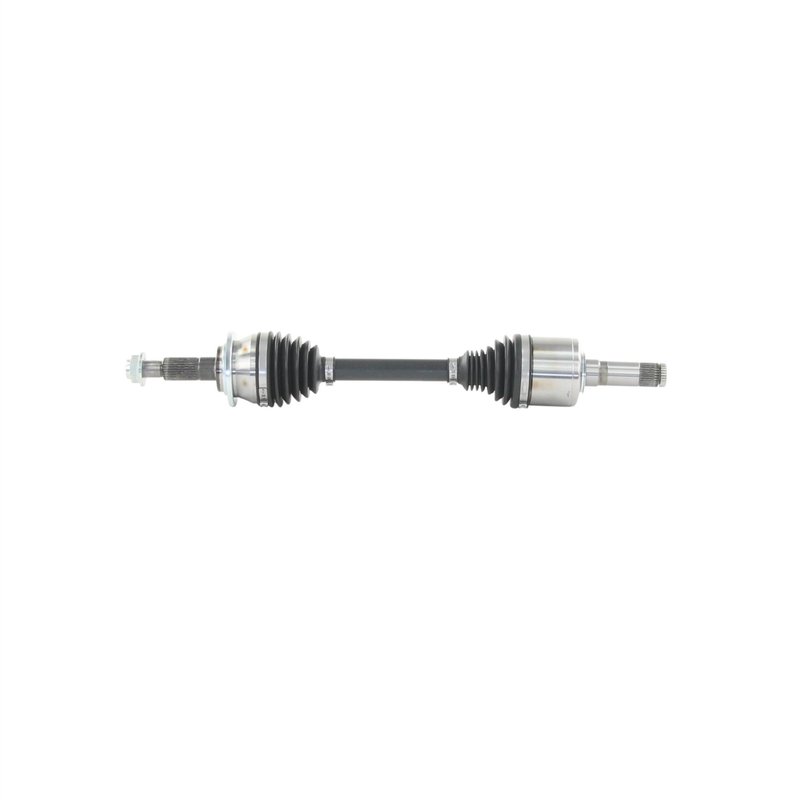

TrakMotive FD-86004 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-86004 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 28 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26.31 |
| Overall Compressed Length (mm) | 668 |
| Overall Extended Length (in) | 27.81 |
| Overall Extended Length (mm) | 710 |
| Product line | CV Axle Shaft |
| Fits | Ford · 3 vehicles |
CV axle shaft. Premium replacement for driveline and axle applications.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Certified quality. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive FD-86004 for the same application. See all 1.
Front Left CV Axle Shaft for Bronco
TrakMotive FD-86004 is a premium CV axle shaft for the front left position on 2021-2023 Ford Bronco models without the Sasquatch Package. It is built for direct driveline replacement where the original axle has worn splines, joint play, or vibration concerns.
This Ford Bronco CV axle shaft uses a conventional outboard joint and a male inboard joint, with 29 inboard splines and 28 outboard splines. The axle measures 668 mm compressed and 710 mm extended, and it uses an M24x1.5 axle nut thread with a 32 mm hex/socket size.
Key Features
- Fits 2021-2023 Ford Bronco, front left
- For vehicles without the Sasquatch Package
- Premium-grade CV axle shaft
- Conventional outboard joint design
- Male inboard joint configuration
- 29 inboard splines and 28 outboard splines
- Axle nut thread size: M24x1.5
- Axle nut hex/socket size: 32 mm
- Overall compressed length: 668 mm
- Overall extended length: 710 mm
Detailed Description
TrakMotive FD-86004 is a front left CV axle shaft for the Ford Bronco, engineered for 2021-2023 applications without the Sasquatch Package. It is part of TrakMotive’s CV Axle Shaft line and is intended for driveline service where the original axle no longer maintains smooth power transfer. The axle’s spline counts, joint styles, and overall length help support proper fitment on the specified Bronco configuration.
This part cross-references TrakMotive FD-86004 for the same application.
What It Helps Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration
- Axle shaft play or looseness
- Noise from damaged splines or joint wear
- Driveline performance loss at the front left wheel position
Installation Notes and Tips
Verify the vehicle is a 2021-2023 Ford Bronco, front left, and confirm it is without the Sasquatch Package before ordering. Match the axle nut thread size, hex size, spline counts, and compressed/extended length to the original part. Inspect related hub, seal, and suspension components during replacement to help ensure a proper repair.
Quality Assurance
TrakMotive states this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, reflecting controlled production and quality management practices.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Ford | Bronco | Front Left | Without Sasquatch Package; CV Axle Shaft |
| 2022 | Ford | Bronco | Front Left | Without Sasquatch Package; CV Axle Shaft |
| 2021 | Ford | Bronco | Front Left | Without Sasquatch Package; CV Axle Shaft |
