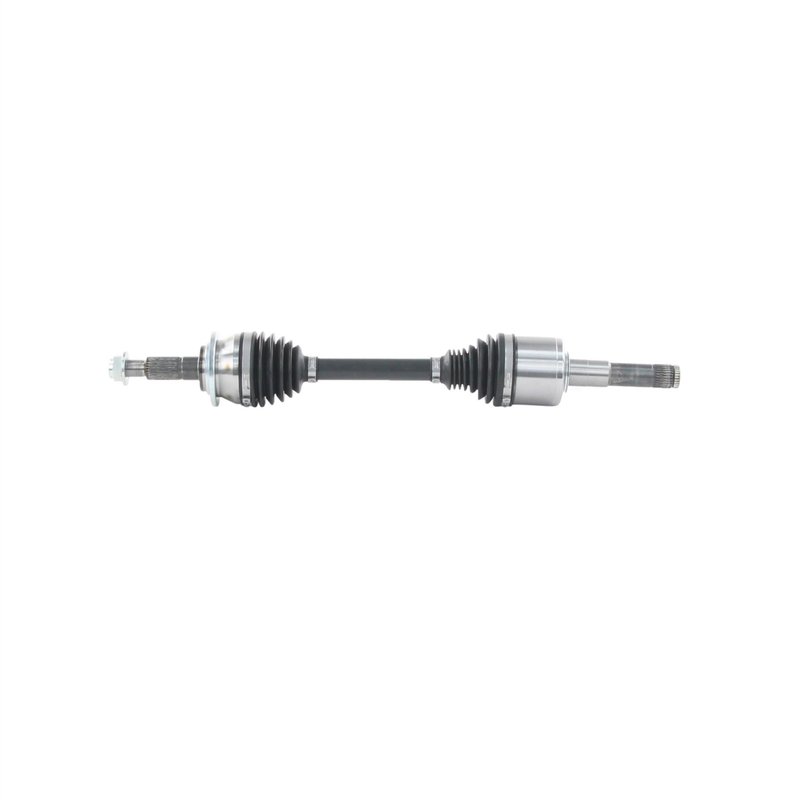

TrakMotive FD-86005 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-86005 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 28 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 27.81 |
| Overall Compressed Length (mm) | 707 |
| Overall Extended Length (in) | 29.5 |
| Overall Extended Length (mm) | 749 |
| Product line | CV Axle Shaft |
| Fits | Ford · 3 vehicles |
CV axle shaft. Premium replacement for driveline and CV component applications.
ABS tone ring omitted. Fits non-ABS applications unless otherwise noted.
Certified quality. ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive FD-86005 and NCV11295 for the same application. See all 2.
Front Right CV Axle Shaft for Bronco
TrakMotive FD-86005 is a premium CV axle shaft for the front right position on 2021-2023 Ford Bronco models without the Sasquatch Package. It is built for direct driveline replacement where the original axle has worn splines, joint noise, or vibration concerns.
Key Features
- Fits 2021-2023 Ford Bronco, front right
- Premium-grade CV axle shaft for driveline service
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard splines: 29; outboard splines: 28
- Overall compressed length: 27.81 in. (707 mm)
- Overall extended length: 29.5 in. (749 mm)
- Axle nut thread size: M24x1.5; hex size: 32 mm
- No ABS tone ring included
Product Details
TrakMotive FD-86005 is a CV axle shaft engineered for the front right side of the Ford Bronco in the listed non-Sasquatch configuration. The axle uses a male inboard joint and a conventional outboard joint, with 29 inboard splines and 28 outboard splines for proper drivetrain engagement. TrakMotive’s CV Axle Shaft line focuses on replacement driveline components, and this part is backed by the brand’s limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification.
This part cross-references Monroe Shocks & Struts (e.g., NCV11295) for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration or turning
- Axle shaft play from spline or joint wear
- Loss of smooth power transfer to the front right wheel
- Noise caused by a damaged or fatigued driveline shaft
Installation Notes and Tips
Confirm front right fitment before ordering, especially on 2021-2023 Ford Bronco models without the Sasquatch Package. Verify axle nut thread size, hex size, and overall length against the original shaft before installation. Inspect related suspension and hub components during replacement, and follow vehicle service procedures for torque and alignment checks.
Quality Assurance
TrakMotive FD-86005 is covered by a limited lifetime warranty. The manufacturer states that the CV axle line is produced under ISO 9001:2008 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Ford | Bronco | Front Right | Without Sasquatch Package; CV Axle Shaft |
| 2022 | Ford | Bronco | Front Right | Without Sasquatch Package; CV Axle Shaft |
| 2021 | Ford | Bronco | Front Right | Without Sasquatch Package; CV Axle Shaft |
