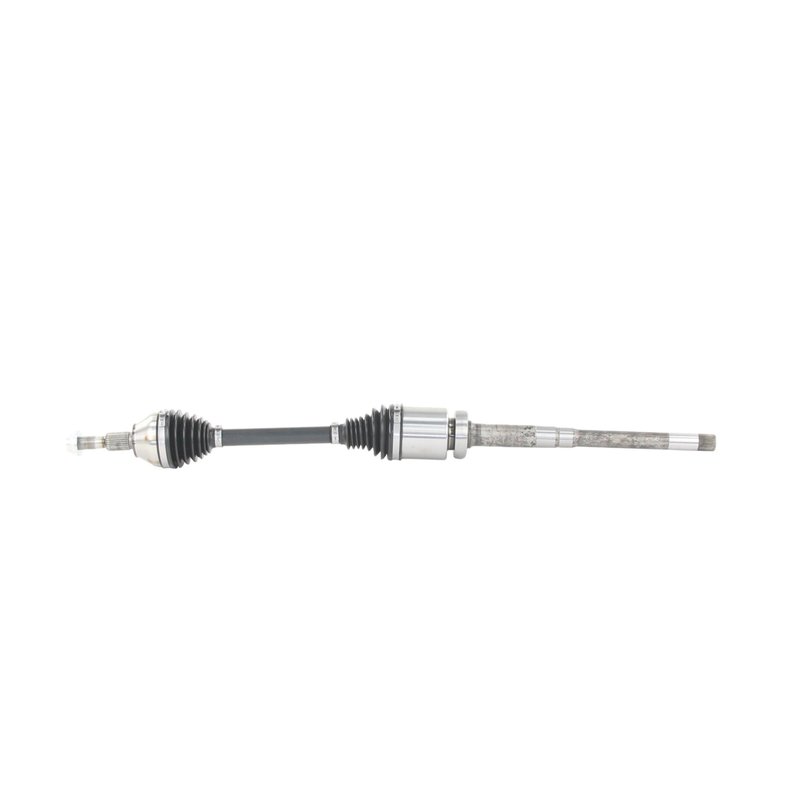

TrakMotive FD-86006 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-86006 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 38.5 |
| Overall Compressed Length (mm) | 979 |
| Overall Extended Length (in) | 40.56 |
| Product line | AAR CV Axle Shaft |
| Fits | Ford and Lincoln · 11 vehicles |
OE-style replacement. A direct-fit CV axle shaft for straightforward installation.
Premium grade. Built with thermoplastic boots and spline connections for dependable operation.
Axle nut included. Comes with a self-locking nut for a complete install.
Cross-references TrakMotive FD-86006 for the same application. See all 1.
Front Right CV Axle Shaft for Ford Fusion and Lincoln MKZ
TrakMotive FD-86006 is a premium AAR CV axle shaft for front right applications on select Ford Fusion and Lincoln MKZ models. It is built for OE AAR design applications and includes the axle nut specified for the assembly.
Key Features
- Fits 2013-2020 Ford Fusion, front right
- Fits 2017-2019 Lincoln MKZ, front right
- OE AAR design for direct replacement use
- Premium-grade CV axle shaft from TrakMotive
- Inboard joint type: male with spline connection
- 35 inboard splines and 27 outboard splines
- Thermoplastic boot material on inboard and outboard joints
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and self-locking design
- Overall compressed length: 38.5 in; overall extended length: 40.56 in
Product Details
The TrakMotive AAR CV Axle Shaft FD-86006 is engineered for front right driveline service on the Ford Fusion and Lincoln MKZ applications listed above. This axle uses a conventional outboard joint, spline-style shaft connections, and an OE AAR design layout to match the original configuration for the vehicle platform. TrakMotive FD-86006 is also backed by the brand’s limited lifetime warranty and produced by an ISO 9001:2008 and TS 16949:2009 certified company.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What This Part Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from damaged axle boots
- Axle shaft wear that can affect driveline smoothness
- Front right axle replacement needs on Fusion and MKZ models
Installation Notes and Tips
Verify front right fitment by year, make, model, and OE AAR configuration before installation. Confirm axle nut thread size, hex size, and overall length against the original part to ensure proper fit. Inspect related suspension and hub components during replacement, and follow factory torque specifications for the axle nut and fasteners.
Quality Assurance
TrakMotive manufactures this axle through an ISO 9001:2008 and TS 16949:2009 certified process. FD-86006 includes a limited lifetime warranty from the manufacturer.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2020 | Ford | Fusion | AWD | Automatic | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Ford | Fusion | AWD | Automatic | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Lincoln | MKZ | AWD | — | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Ford | Fusion | AWD | Automatic | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Lincoln | MKZ | AWD | — | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Ford | Fusion | AWD | Automatic | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Lincoln | MKZ | AWD | — | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2016 | Ford | Fusion | AWD | Automatic | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2015 | Ford | Fusion | AWD | Automatic | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2014 | Ford | Fusion | AWD | Automatic | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2013 | Ford | Fusion | AWD | Automatic | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
