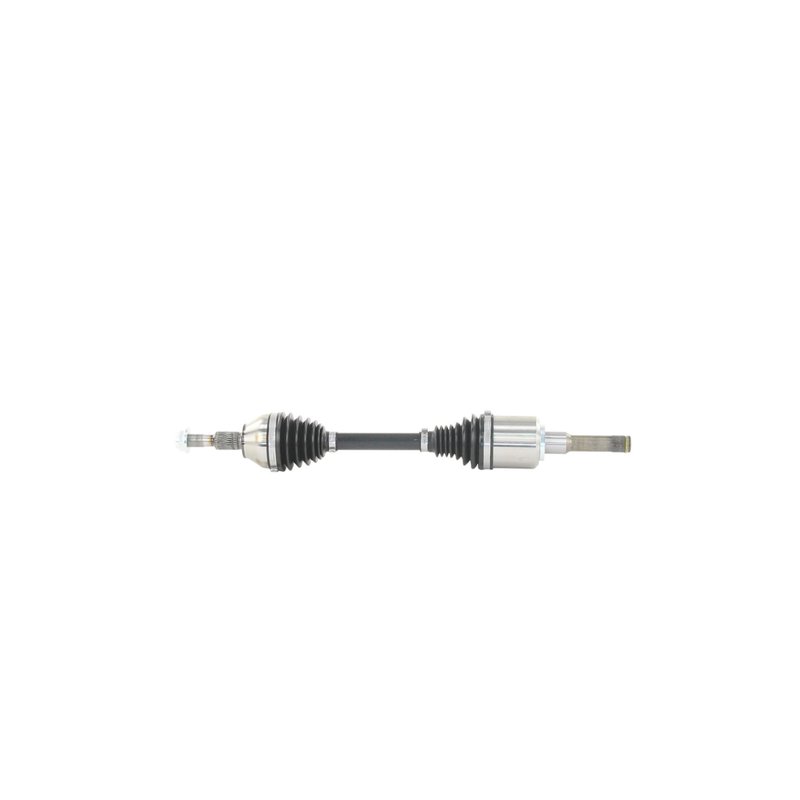

TrakMotive FD-86009 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-86009 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 27.31 |
| Overall Compressed Length (mm) | 694 |
| Overall Extended Length (in) | 29.375 |
| Product line | AAR CV Axle Shaft |
| Fits | Lincoln · 3 vehicles |
Premium grade. Built with thermoplastic boots for durable joint protection.
Spline connections. 35 and 27 spline ends provide a secure axle interface.
Axle nut included. Self-locking hex nut is ready for installation.
Cross-references TrakMotive FD-86009 for the same application. See all 1.
Front Left CV Axle Shaft for Lincoln MKZ
TrakMotive FD-86009 is a premium CV axle shaft for the front left position on select 2017-2019 Lincoln MKZ models. It is built for OE AAR design applications and includes the axle nut specified for this fitment.
Key Features
- Fits 2017-2019 Lincoln MKZ, front left
- OE AAR design replacement for the original axle layout
- Premium-grade CV axle shaft from TrakMotive
- Inboard joint type: male with spline connection
- Outboard joint type: conventional with spline connection
- Thermoplastic boots on both inboard and outboard joints
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and self-locking design
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
This TrakMotive AAR CV Axle Shaft line is built for applications that require OE-style axle geometry and fitment accuracy. Part number FD-86009 measures 27.31 inches compressed and 29.375 inches extended, with 35 inboard splines and 27 outboard splines for the listed Lincoln MKZ front left application. TrakMotive states its products are produced by an ISO 9001:2008 and TS 16949:2009 certified company, supporting consistent manufacturing control for driveline replacement parts. This part cross-references no additional part numbers beyond TrakMotive FD-86009.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration
- Axle shaft wear that affects driveline smoothness
- Boot deterioration that can lead to joint contamination
- Front left axle failure on 2017-2019 Lincoln MKZ vehicles
Installation Notes and Tips
Verify front left fitment before installation on your Lincoln MKZ and confirm axle nut thread size, hex size, and overall length against the original part. Inspect the hub, seals, and surrounding suspension components for wear before installing the new axle shaft. Because this application uses a self-locking axle nut, follow the vehicle service procedure and torque specifications during assembly.
Quality Assurance
TrakMotive backs this axle shaft with a limited lifetime warranty. The brand also notes that ABS axles fit non-ABS applications unless otherwise noted, and this part is listed without an ABS tone ring.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Lincoln | MKZ | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2018 | Lincoln | MKZ | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2017 | Lincoln | MKZ | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
