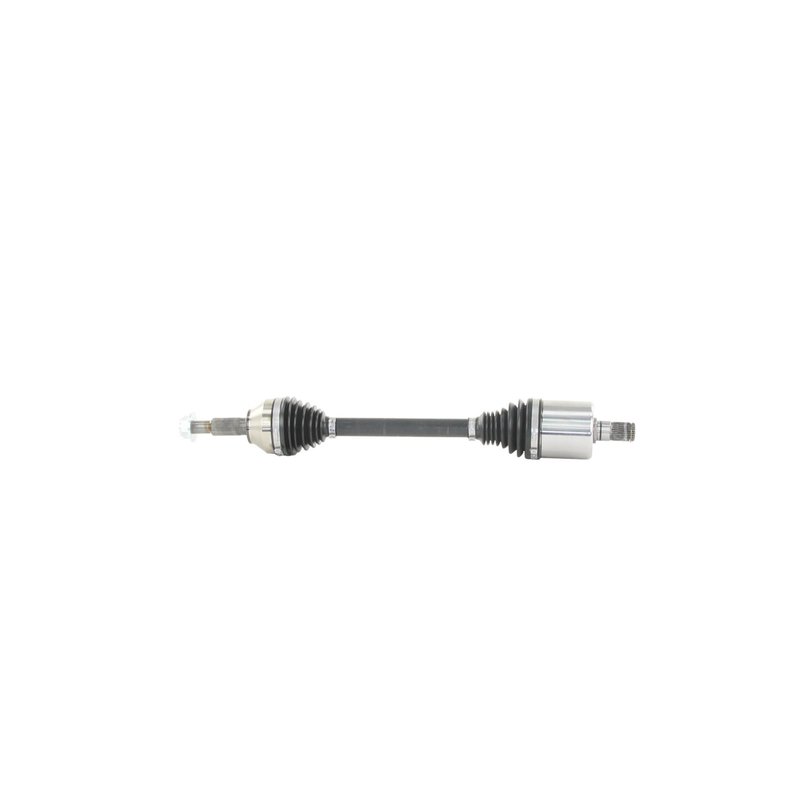

TrakMotive FD-86013 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-86013 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .81 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.06 |
| Overall Compressed Length (mm) | 663 |
| Overall Extended Length (in) | 28.44 |
| Product line | AAR CV Axle Shaft |
| Fits | Ford · 6 vehicles |
Premium grade. Built as a durable CV axle shaft for dependable driveline performance.
Thermoplastic boots. Help protect the joints from wear while keeping grease contained.
Self-lock axle nut. Includes a locking nut for secure, straightforward installation.
Cross-references TrakMotive FD-86013 and NCV11218 for the same application. See all 2.
Front Left CV Axle Shaft for Explorer
The TrakMotive AAR CV Axle Shaft FD-86013 is a front left replacement axle for 2020-2022 Ford Explorer applications with OE AAR design. It is built as a premium driveline component for direct replacement service on the specified vehicle fitment.
Key Features
- Fits 2020-2022 Ford Explorer, front left
- OE AAR design for the listed application
- Premium-grade CV axle shaft construction
- Inboard joint type: male with spline connection
- Outboard joint type: conventional with spline connection
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and self-locking design
- Thermoplastic boot material on inboard and outboard joints
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
TrakMotive FD-86013 is part of the AAR CV Axle Shaft line, a product line focused on OE-style axle replacement for specific driveline applications. This axle uses 27 inboard splines and 38 outboard splines, with overall compressed length of 26.06 inches and extended length of 28.44 inches. It is listed for the front left position on the Ford Explorer and cross-references Monroe Shocks & Struts 172286 for the same application.
Common Repair Uses
- Restores driveline transfer when a CV axle is worn or damaged
- Addresses clicking or popping noises during turns
- Helps correct vibration caused by axle wear
- Replaces a leaking or torn CV boot assembly on the axle shaft
- Supports repair of front left axle failure on the Ford Explorer
Installation Notes
Verify spline count, axle length, and nut thread size before installation. This axle includes the axle nut specified in the product data. Confirm the vehicle is a 2020-2022 Ford Explorer, front left, and match the OE AAR design requirements before service.
Quality Assurance
TrakMotive states this axle is backed by a limited lifetime warranty and produced by an ISO 9001:2008 and TS 16949:2009 certified company.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Ford | Explorer | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Ford | Police Interceptor Utility | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Ford | Explorer | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Ford | Police Interceptor Utility | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Ford | Explorer | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Ford | Police Interceptor Utility | Front Left | OE AAR design; AAR CV Axle Shaft |
