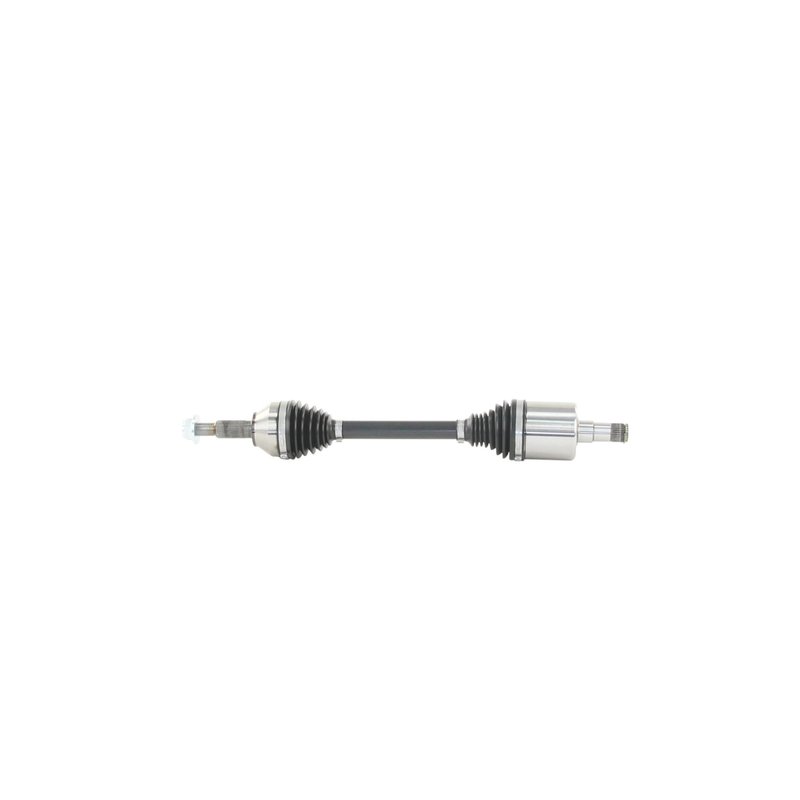

TrakMotive FD-86015 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-86015 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .81 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.56 |
| Overall Compressed Length (mm) | 649 |
| Overall Extended Length (in) | 27.94 |
| Product line | AAR CV Axle Shaft |
| Fits | Ford · 6 vehicles |
Premium grade. Built as a quality CV axle shaft for dependable driveline service.
Self-lock axle nut. Included for a secure, ready-to-install connection.
Thermoplastic boots. Help protect the joints from wear and contamination.
Cross-references TrakMotive FD-86015 and NCV11219 for the same application. See all 2.
Front Right CV Axle Shaft for Explorer
TrakMotive FD-86015 is a premium CV axle shaft for the front right position on 2020-2022 Ford Explorer applications. It is built as an OE AAR design replacement for the Ford Explorer front right driveline setup, with spline counts and compressed/extended lengths matched to the listed application.
The TrakMotive AAR CV Axle Shaft line focuses on application-specific fit and OE-style construction. FD-86015 includes a self-lock axle nut and uses thermoplastic boots on both joints for a service-ready replacement in the driveline and axles category.
- Fits 2020-2022 Ford Explorer, front right
- OE AAR design replacement for the listed application
- Premium-grade CV axle shaft
- Inboard joint: male, spline connection
- Outboard joint: conventional, spline connection
- 27 inboard splines and 38 outboard splines
- Overall compressed length: 25.56 in (649 mm)
- Overall extended length: 27.94 in (710 mm)
- Includes axle nut with M22x1.5 thread, 32 mm hex size
- ABS tone ring not included; 0 ABS ring tooth count
Detailed Application Notes
FD-86015 is a direct-fit front right CV axle shaft for the Ford Explorer in the 2020, 2021, and 2022 model years. Use this part when replacing a worn or damaged axle on the front right side and when the vehicle calls for the OE AAR design. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration from axle wear or imbalance
- Grease leakage from damaged CV boots
- Noise from a failing front right axle assembly
- Driveline play caused by spline or joint wear
Installation Notes and Tips
Confirm front right fitment against the vehicle’s OE AAR design before installation. Verify axle nut thread size, hex size, and overall axle length against the removed part. Inspect hub, seals, and surrounding suspension components during replacement to help prevent repeat noise or leakage concerns.
Quality Assurance
TrakMotive manufactures this axle shaft as an ISO 9001:2008 and TS 16949:2009 certified product. FD-86015 is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Ford | Explorer | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | Ford | Police Interceptor Utility | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Ford | Explorer | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Ford | Police Interceptor Utility | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Ford | Explorer | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Ford | Police Interceptor Utility | Front Right | OE AAR design; AAR CV Axle Shaft |
