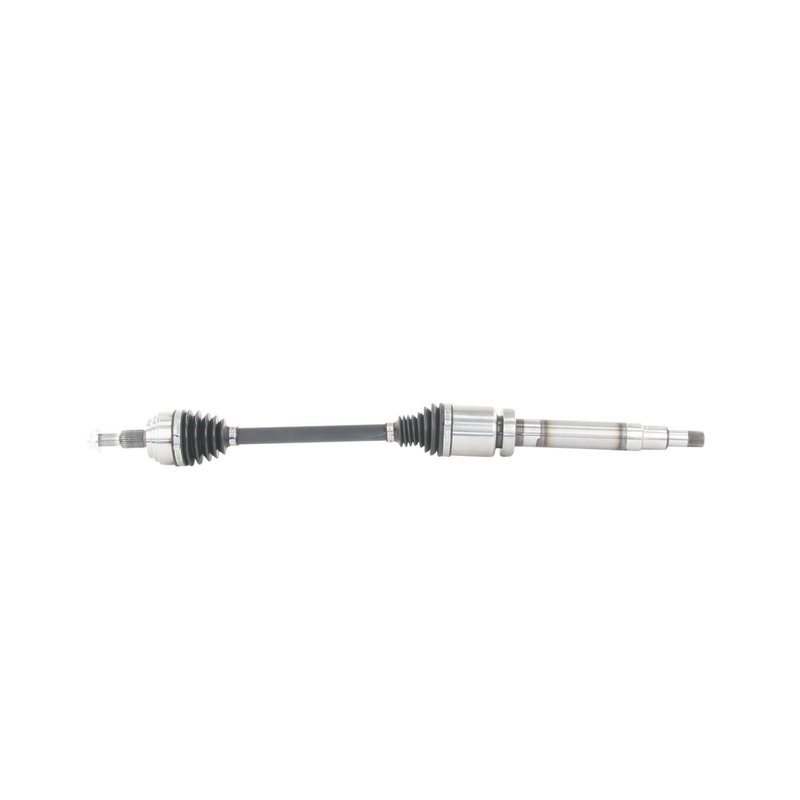

TrakMotive FD-86018 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-86018 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 36.75 |
| Overall Compressed Length (mm) | 934 |
| Overall Extended Length (in) | 38.75 |
| Product line | AAR CV Axle Shaft |
| Fits | Ford · 5 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward service fit.
Premium grade. Built with thermoplastic boots and spline connections for dependable operation.
Includes a self-locking axle nut for easier installation.
Cross-references TrakMotive FD-86018 for the same application. See all 1.
TrakMotive FD-86018 AAR CV Axle Shaft
The TrakMotive AAR CV Axle Shaft, part number FD-86018, is a premium replacement for the front right position on select Ford Transit Connect models. It is built for OE AAR design applications and includes the axle nut specified for the assembly.
Key Features
- Fits 2019 Ford Transit Connect, front right
- Fits 2020 Ford Transit Connect, front right, thru 06/19/19
- Fits 2021-2023 Ford Transit Connect, front right
- OE AAR design for the listed Ford Transit Connect applications
- Premium-grade CV axle shaft from TrakMotive
- Inboard joint type: male with spline connection
- Outboard joint type: conventional with spline connection
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and self-locking design
- Thermoplastic boot material on both inboard and outboard joints
- ABS tone ring not included; ABS ring tooth count: 0
Detailed Description
TrakMotive FD-86018 is a CV axle shaft for the front right side of the Ford Transit Connect. It is engineered for OE AAR design applications and uses a male inboard joint with 35 inboard splines and a conventional outboard joint with 27 outboard splines. Overall compressed length is 36.75 in. and overall extended length is 38.75 in., supporting the specified drivetrain geometry for the listed Transit Connect fitments.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Resolve
- Clicking or popping during turns caused by worn CV joints
- Vibration from a worn or damaged axle shaft
- Grease leakage from deteriorated CV boots
- Driveline noise related to spline or joint wear
- Front right axle replacement needs on Ford Transit Connect models
Installation Notes and Tips
Verify front right fitment by year and build date before installation, especially for the 2020 Ford Transit Connect through 06/19/19. Confirm axle nut thread size, hex size, and overall length against the original part before assembly. Inspect hub, seals, and mating components for wear so the replacement axle can seat correctly.
Quality Assurance
TrakMotive identifies this axle as a premium-grade component and states that the company is ISO 9001:2008 and TS 16949:2009 certified. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | Ford | Transit Connect | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | Ford | Transit Connect | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Ford | Transit Connect | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Ford | Transit Connect | 2.0L | L4 | Front Right | Thru 06/19/19; AAR CV Axle Shaft |
| 2019 | Ford | Transit Connect | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
